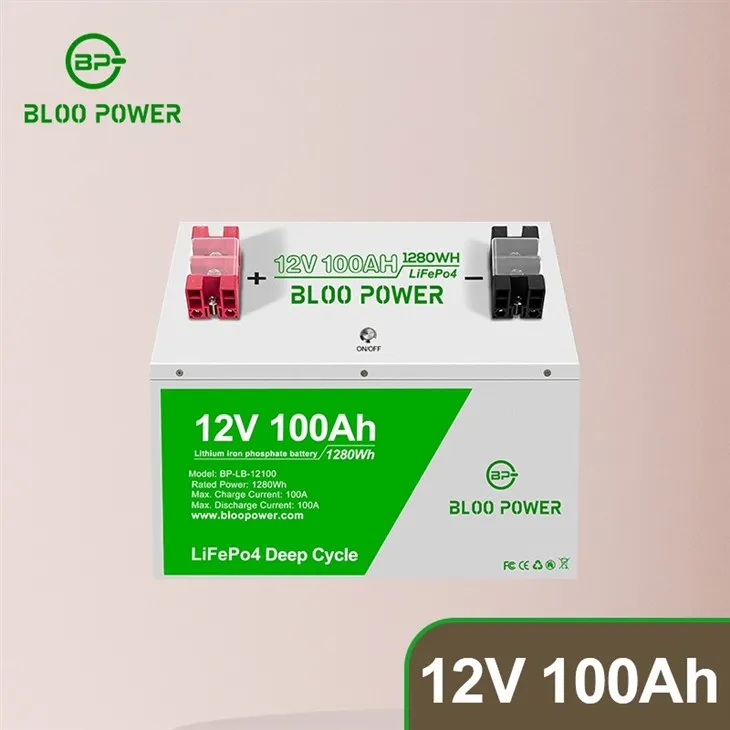

High Performance Lithium Ion Storage Battery With Grade A Prismatic Cell
2、Lightweight residential energy storage device compared to the lead-acid one
We adopt advanced technology for the 12V DC deepcycle SLA solar energy storage battery, each device is embedded with an BMS system that keeps the battery against overvoltage, overcharge, overheating, overcurrent, and short circuit. The 1200Wh compact lithium-ion battery pack can be used for outdoor activities with waterproof function. It can also be charged via solar panel or wall output port.
Parameter
| Model No. | BP-LB-12100 | BP-LB-12200 | BP-LB-24100 | BP-LB-24200 |
| Rated Voltage | 12.8V | 12.8V | 25.6V | 25.6V |
| Cell Combination Type | 4S | 4S | 4S | 4S |
| Rated Capacity | 100Ah | 200Ah | 100Ah | 200Ah |
| Rated Energy | 1280Wh | 2560Wh | 2560Wh | 5120Wh |
| Voltage Range | 10V-14.6V | 10V-14.6V | 20V-29.2V | 20V-29.2V |
| Cycles (80%DOD) | Deep cycles | Deep cycles | Deep cycles | Deep cycles |
| Depth of Discharge | 80% | 80% | 80% | 80% |
| Charge Current | 50A | 100A | 50A | 100A |
| Discharge Current | 100A | 200A | 100A | 200A |
| Maximum Continuous Charge Current | 100A | 200A | 100A | 200A |
| Maximum Continuous Discharge Current | 100A | 200A | 100A | 200A |
| Dimension | L328*W171*H215mm | L520*W238*H220mm | L520*W238*H225mm | L520*W270*H220mm |
| Weight | 13.6kg | 23.8kg | 19kg | 39kg |
| Operation Temperature | Charge: 0℃~50℃, Discharge: -20℃~60℃ | |||
| Storage Temperature | Keep at 0℃~50℃ | |||
| Cell Tpye | Lithium ion Phosphates Battery | |||
| Maintenance | Maintenance free | |||
| Compatibility | Compatible with all off-grid/hybrid inverters and charge controllers | |||
| BMS | Intellgent battery mangement system | |||
| Maximum Parallel Connection | 8 pcs | |||
Similar Products
What Makes Grade A Prismatic Cells Superior in High Performance Lithium Ion Storage Batteries?
In the rapidly evolving landscape of energy storage solutions, the high performance lithium ion storage battery with grade A prismatic cell stands out as a reliable and efficient choice for applications ranging from electric vehicles (EVs) to renewable energy systems. These batteries leverage advanced prismatic cell designs to deliver superior energy density, long cycle life, and enhanced safety.
Grade A prismatic cells are top-tier lithium-ion cells rigorously tested for consistency, capacity, and safety. Unlike lower grades, they undergo 152-point inspections and meet standards such as UL 1973. These cells typically feature LiFePO4 (LFP) or NMC chemistries, offering nominal voltages of 3.2V (LFP) or 3.7V (NMC), with capacities from 100Ah to 314Ah. In high performance lithium ion storage batteries, grade A prismatic cells ensure minimal capacity fade and uniform performance across packs.
Power Battery Generator With Lifepo4 Highlight :
SLA design with less maintenance
Wide applications: solar energy storage, RVs, boats, golf carts, telecom systems
Green energy house battery storage solution
Solid shell is waterproof and dustproof
Packed with smart BMS offers many protections
We offer competitive solar battery cost for our wholesaler
Looking for the best batteries for solar power storage from an energy storage batteries company is always more careful. Check our official website you can find many types batteries, like the energy storage lifepo4 battery 12V 18Ah, battery 12V 20Ah, battery 12V 30Ah, and the 35Ah 12V DC deepcycle SLA solar energy storage battery.
Distributor Policy
SUPPORT: we can offer online technical assistance and offline technical service if necessary.
EXCLUSIVE: we can design exclusive products' appearance for distributors which other customers cannot use.
MOQ: 20-foot container for each order, which can include a few kinds of products.
PRICING: Distributors can get lower prices than any other customers in the same country.
MARKETING: we can design marketing posters or brochure for distributor anytime for free.
May be you will like
FAQ
Q: Is there overcharge and over discharge protection built into the battery?
A: Yes, the battery is equipped with advanced BMS technology that provides protection against overcharging and over discharging.
Q: Is it possible to overload the battery?
A: It is recommended to avoid overloading the battery as it may reduce its overall lifespan.
Q: Is it possible to arrange a visit to your factory located in China?
A: Certainly, you are welcome to visit our factory and take a tour of our facilities.
Q: Is there a feature for automatic charging in batteries?
A: Yes, some batteries are equipped with an automatic charging feature. This allows the battery to recharge itself when its power is running low, ensuring extended usage.
Q: How long does it take to fully charge the battery?
A: he charging time of the battery will vary based on the total power of the solar panles and the weather.
