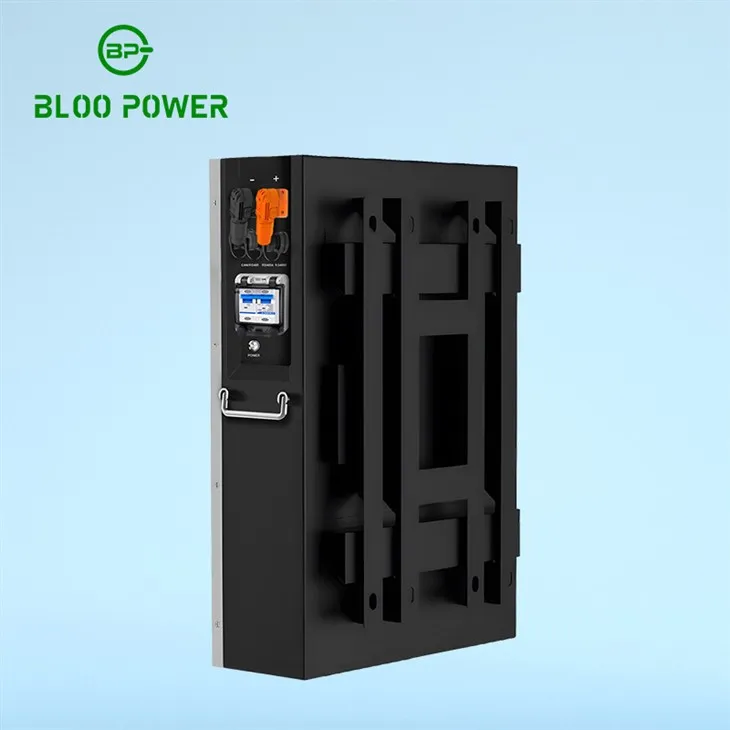

IP65 48V Wall Mounted Lithium Battery
2. Built-in premium BMS board offers multiple protections
3. Compatible with most of hybrid inverters
Power wall battery is usually installed on the wall, which requires a certain load bearing capacity.
The LCD design can monitor real-time battery status, making your use more convenient.
We can do the energy capacity from 3KWh to 15KWh, and it is allowed to parallel max to 16pcs to extend energy. To fit the severe environment we have IP65 dustproof and waterproof type option, also it's available to customize the appearance according to your request. It's a good home backup power storage.
Parameter
| NO | Model No. | BP-HP-5KWH-C | BP-HP-7KWH-C | BP-HP-10KWH-C |
| 1 | Rated Voltage | 51.2V | 51.2V | 51.2V |
| 2 | Cell Combination Type | 16S | 16S | 16S |
| 3 | Rated Capacity | 100Ah | 135Ah | 200Ah |
| 4 | Rated Energy | 5.12KWh | 6.91KWh | 10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
| 6 | Cycles(80%DOD) | 6500 cycles | 6500 cycles | 6500 cycles |
| 7 | Depth of Discharge | 80% | 80% | 80% |
| 8 | Charge Current | 20A | 20A | 40A |
| 9 | Discharge Current | 20A | 20A | 40A |
| 10 | Maximum Continuous Charge Current | 80A | 80A | 160A |
| 11 | Maximum Continuous Discharge Current | 100A | 100A | 200A |
| 12 | Maximum Continuous Charge/Discharge Current | 5.12KW | 6.19KW | 10.24KW |
| 13 | Weight | 60kg | 80kg | 120kg |
| 14 | Dimension L*W*D(mm) | L650*W384*H142mm | L650*W420*H135mm | L680*W412*H231mm |
| 15 | Battery Type | Wall-mounted | ||
| 16 | Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 65 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Good lithium iron phosphate battery cell, environmentally friendly and energy-saving
2. Built-in premium BMS board offers multiple protections
3. Compatible with most of hybrid inverters
4. 3KWh to 15KWh capacities are available
5. Up to 16pccs in parallel for bigger energy capacity
6. LCD for easy monitor, know the real-time battery status
7. IP65 with dustproof and waterproof functions
8. 6500 time cycle and 15 years warranty
9. OEM/ODM is acceptable
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q： How can I obtain a sample to evaluate the quality?
A：You can reach us through online channels or by adding our WhatsApp/WeChat to buy.
Q：What is the estimated delivery time for your batteries?
A：The delivery time for the batteries ranges from 5 to 25 working days after the receipt of the advance payment. The exact delivery timeline will depend on the products ordered and the quantity of the order.
Q：Is it possible to have the batteries manufactured on an OEM basis?
A：Of course.
