Groud Mounted Green Energy Energy Storage Battery DIY For Home Systems
2.Wheel design for ultra-easy movement

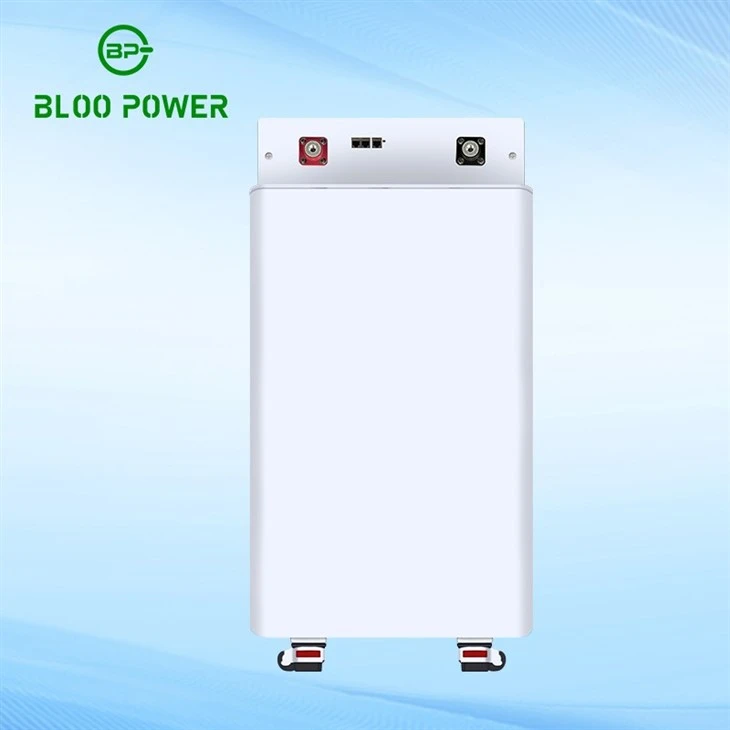

Safe energy storage battery pack lithium ion batteries won't explode thanks to the stable material features, neat structure, and smart BMS monitor. This elegant device store the excess electricity from solar panels also can charge from grid. Fully-charged 15.34KWh battery will become your home's energy source.
If you are looking for good price home energy storage system 51.2v battery with good services, you shoudn't miss this wheel-designed power package, it's realiable, flexible, affordable and environmentally-friendly.
Parameter
|
NO |
Model No. |
BP-HR-10KWH |
BP-HR-14KWH |
BP-HR-15KWH |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
200Ah |
280Ah |
300Ah |
|
4 |
Rated Energy |
10.24KWh |
14.336KWh |
15.36KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
40A |
40A |
40A |
|
9 |
Discharge Current |
40A |
40A |
40A |
|
10 |
Maximum Continuous Charge Current |
160A |
160A |
160A |
|
11 |
Maximum Continuous Discharge Current |
200A |
200A |
200A |
|
12 |
Weight |
83kg |
120kg |
124kg |
|
13 |
Dimension L*W*D(mm) |
L415*W240*H600mm |
L415*W240*H885mm |
L415*W240*H885mm |
|
14 |
Battery Type |
Roller Battery |
||
|
15 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 16 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 17 | Cell Type | LiFePo4 Lithium ion Phosphates Battery | ||
| 18 | Maintenance | Maintenance free | ||
| 19 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 20 | BMS | Intelligent battery mangement system | ||
| 21 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Elegant appearance support customization.
2. Advanced BMS offers multiple safeguards.
3. Matching kinds of on-grid hybrid inverters.
Our factory has more than 15 years of experience in lithium battery manufacturing and a strong R&D team. Home energy storage, portable power, commercial energy storage systems, and lithium battery packs can all be customized.
Product qualification
Install
Packaging
About us
FAQ
Q：Is it possible to customize the size of the battery?
A：Yes, we offer tailored solutions to meet the unique needs of our customers by providing custom-sized batteries to fit their specifications.
Q：Is there a minimum order quantity requirement?
A：No.order one and we can also sell.
Q：Are there any discounts available for large orders?
A：We offer varying discounts based on the size and scope of your order.
