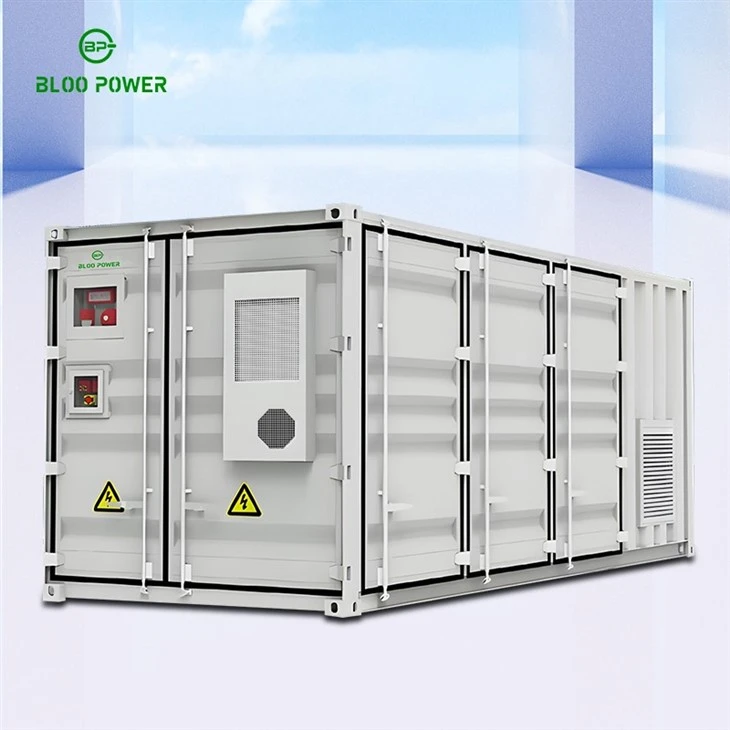

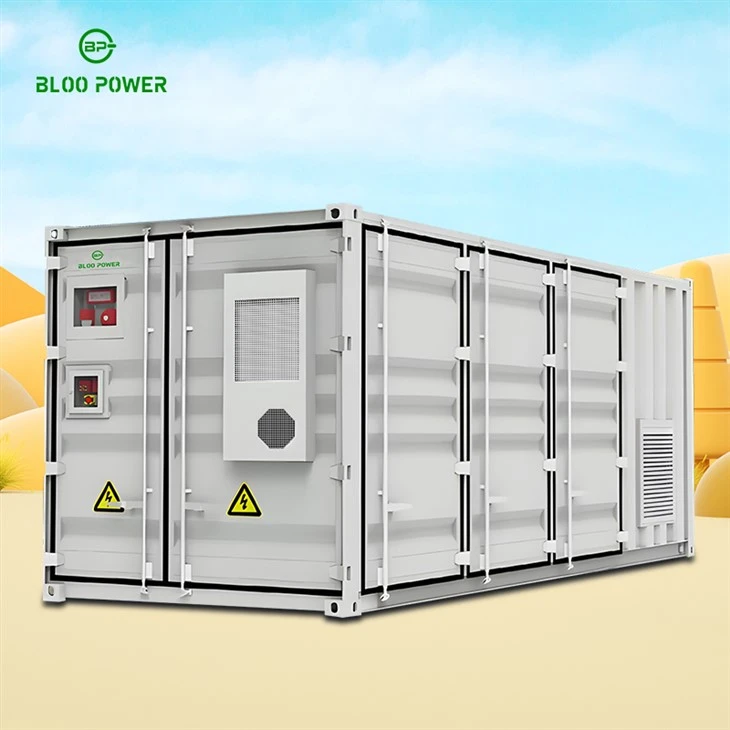

Deep Cycle Generators 1000 KWh Battery Bank For Industrial And Commercial Systems
2. Container design with multi-level safeguards

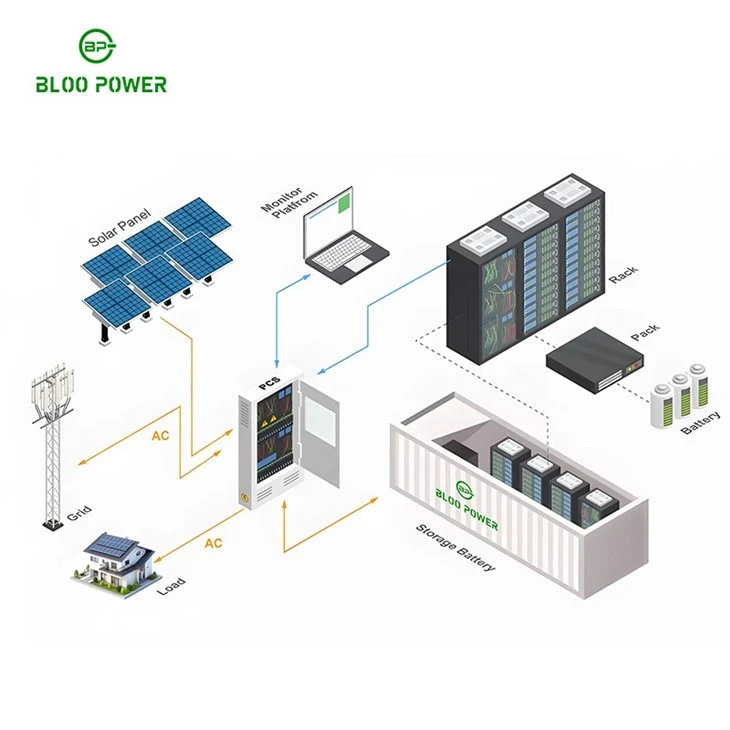

A complete rechargeable 1000 KWh battery bank contains an intelligent battery management system, cooling system, three-phase PCS, AC and DC power distribution box, HV-LV adapter, and lighting/anti-fire/temp-control systems. All strength the safety for the whole ESS.
Charging station 1000 KWh battery bank solar system supports parallel connection of up to 2 Bloo Power series, so very easily enlarges 500KW to 1000KW power, very flexible to install.
Parameter
|
System Parameters |
||
|
Rated AC Power |
250KW/500KW | 500KW/1000KW |
| Rated AC Voltage |
400V |
|
| Rated AC Current |
360A/720A |
720A/720A*2 |
| THD | <3%(Linear load) | |
| PF Adjustable Range | -1(leading) ~ +1(lagging) | |
|
Battery Cell Specification |
3.2V/120Ah; 3.2V/280Ah |
|
| Battery Cell cycle Life |
>6000 cycls@0.5C, 25℃ |
|
|
Available Rated Capacity |
500KWh/1000KWh | 500KWh/1000KWh |
|
Type |
Modular, High efficiency three level | |
|
Protection |
Over temperature, low temperature charging, over current, short circuit, over voltage, under voltage, DC bus protection, tec. |
|
| Connection Mode | Three phase three wire/three phase four wire | |
| Isolation Transformer | Equipped(optional) | |
| Working Mode | Grid-tied peak shaving/off-grid power supply guarantee | |
| General Parameters | ||
| Dimension(W*D*H) | 6058*2438*2896mm | 12196*2438*2896mm |
| Weight | 18 tons | 35 tons |
| IP Grade | IP55 | |
| Operating Temperature | -25℃ ~ 60℃(Derating>45℃) | |
| Relative Humidity | 0 ~ 95%(non-condensing) | |
| Altitude | 3000m(>3000m Derating) | |
| Fire Extinguishing System | FM200 pipe fire extinguishing system | |
| Cooling System | Air cooling / Liquid cooling | |
| Communication Interface/Protocol | RS485, Ethernert/Modbus RTU, Modbus TCP | |
Product Features
1. Safe lithium-ion phosphate cell with advanced PCS tech.
2. With high grade IP65.
3. Customization services.
4. Communication interface: RS485/CAN 2.0/ethernet.
High degree of modularity, simple structure, easy to install and maintain; Integrate independently developed BMS products for realtiem monitoring and management.
Certificates
About us
FAQ
Q：Is there a battery testing service available?
A： Yes, our company offers professional battery testing services to assess the safety and reliability of batteries. Based on customer needs, we can provide detailed test reports.
Q：Has the battery received any safety certifications?
A：Yes, our batteries have obtained various safety certifications, including UN38.3, MSDS,CE, FCC.
Q：How can I obtain a sample to evaluate the quality?
A：You can reach us through online channels or by adding our WhatsApp/WeChat to buy.
