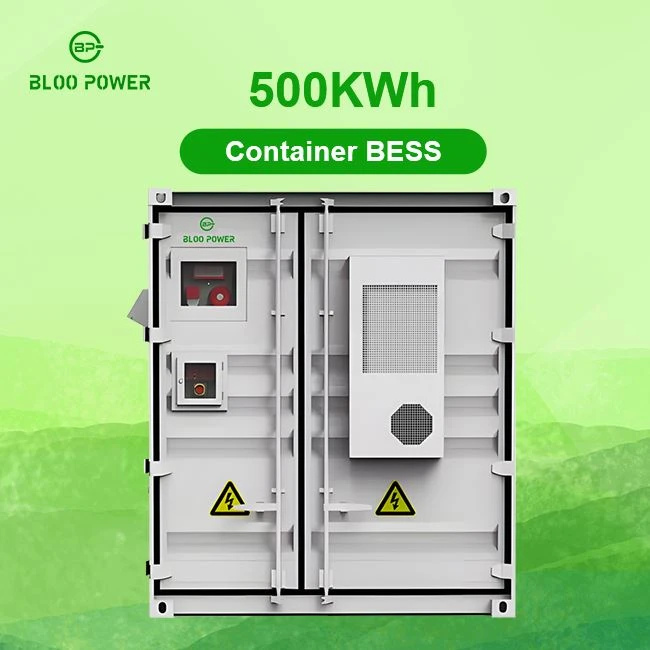

Large Scale Reviews 500KWh Battery For Energy Storage Container BESS
2. Advanced BMS protection
Hot-selling replacement 500kwh battery for energy storage is widely applied to industries and commerce (such as micro-grid islands, hotels, farms, etc) areas. You can quickly find a 500kwh battery for energy storage nearby and customize your solar system.
Each battery device is packed with an advanced battery management system (BMS) to monitor and manage the cells in real time. With an energy storage converter, transformer, high voltage cabinet, and power distribution cabinet, the cabinet BESS provides impressive performance to users.
Parameter
|
System Parameters |
||
|
Rated AC Power |
250KW/500KW | 500KW/1000KW |
| Rated AC Voltage |
400V |
|
| Rated AC Current |
360A/720A |
720A/720A*2 |
| THD | <3%(Linear load) | |
| PF Adjustable Range | -1(leading) ~ +1(lagging) | |
|
Battery Cell Specification |
3.2V/120Ah; 3.2V/280Ah |
|
| Battery Cell cycle Life |
>6000 cycls@0.5C, 25℃ |
|
|
Available Rated Capacity |
500KWh/1000KWh | 500KWh/1000KWh |
|
Type |
Modular, High efficiency three level | |
|
Protection |
Over temperature, low temperature charging, over current, short circuit, over voltage, under voltage, DC bus protection, tec. |
|
| Connection Mode | Three phase three wire/three phase four wire | |
| Isolation Transformer | Equipped(optional) | |
| Working Mode | Grid-tied peak shaving/off-grid power supply guarantee | |
| General Parameters | ||
| Dimension(W*D*H) | 6058*2438*2896mm | 12196*2438*2896mm |
| Weight | 18 tons | 35 tons |
| IP Grade | IP55 | |
| Operating Temperature | -25℃ ~ 60℃(Derating>45℃) | |
| Relative Humidity | 0 ~ 95%(non-condensing) | |
| Altitude | 3000m(>3000m Derating) | |
| Fire Extinguishing System | FM200 pipe fire extinguishing system | |
| Cooling System | Air cooling / Liquid cooling | |
| Communication Interface/Protocol | RS485, Ethernet/Modbus RTU, Modbus TCP | |
Product Features
1. Meet international standards.
2. Customizable and Scalable.
3. 100KWh, 200KWh, and 500KWh different capacities.
Inverter and Charge Controller Selection
Select appropriate inverters and charge controllers based on the power output of the photovoltaic modules, the type and characteristics of the load. To ensure the inverter's conversion efficiency, stability, and reliability meet system requirements, the charge controller effectively controls the battery charging process.
Customization Policy
OEM & ODM service to satisfy customer's requirements. For OEM service, all our products can do it, Also, our marketing team can design the logo and online posters for free. For ODM service, We can design exclusive products' appearance for you which other customers cannot use or we can manufacture according to your specific technical requirements.
High degree of modularity, simple structure, easy to install and maintain; Integrate independently developed BMS products for realtiem monitoring and management.
Certificates
About us
FAQ
Q：What are the ways to maintain a battery?
A： The steps to properly maintain a battery include: avoiding deep discharging, regularly monitoring its charging status, and keeping the battery at optimal temperature and humidity levels to prevent overheating or excessive moisture.
Q：Can you tell me the different kinds of batteries used for residential energy storage?
A：Home energy storage batteries can be divided into lithium-ion batteries, lead-acid batteries, nickel-cadmium batteries, etc. The lithium-ion battery we use has become the most common type of household energy storage battery on the market because of its high energy density and low discharge speed.
Q：How do I go about placing an order?
A：We are currently offering a big promotion in the market and would welcome the opportunity to cooperate with you. For more information, please don't hesitate to contact us.
