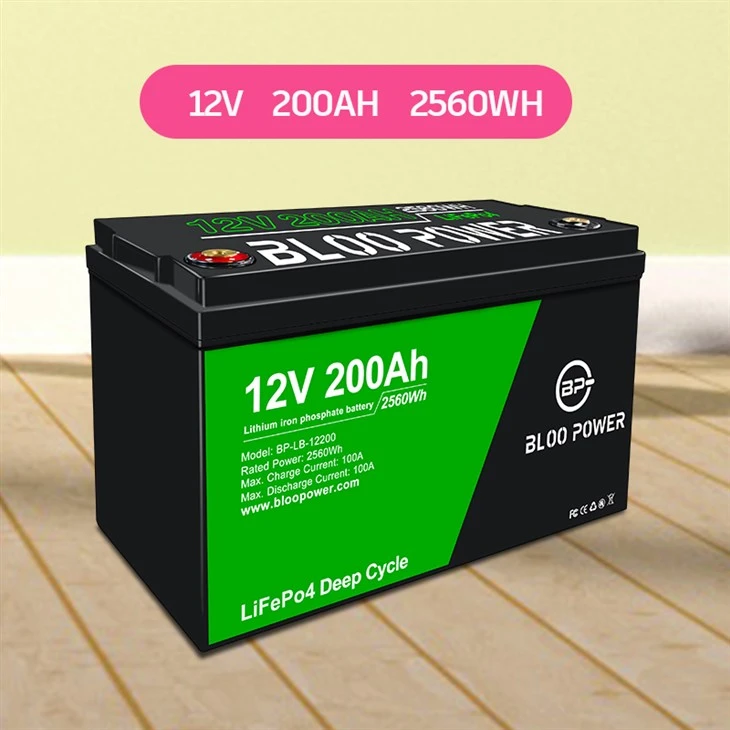

12v lead acid replacement
1、High density. Small size, large energy capacity..
2、Strong safety with advanced technology, reducing the risk of accidents and ensuring life safety.
These days, lithium-ion batteries are found everywhere. Your computer, phone, and possibly even your car or recreational vehicle contain them. A lithium-ion battery is what, though? What's within a lithium-ion battery that enables it to power your electronics, furthermore? Let's look at it!
Parameter
| NO | ITEM | SPEC | |||||
| 1 | Rated Capacity | 50AH | 100AH | 150AH | 200AH | 250AH | 300AH |
| 2 | Rated Voltage | DC-12.8V | |||||
| 3 | Rated Energy | 640wh | 1280wh | 1920wh | 2560wh | 3200wh | 3840wh |
| 4 | Operating Voltage | 11.2V～14.6V | |||||
| 5 | Max. Charge Current | 50A | 100A | 100A | 100A | 100A | 100A |
| 6 | Max. Discharge Current | 70A | 100A | 100A | 100A | 175A | 100A |
| 7 | Peak Current | 140A | 200A | 320A | 320A | 320A | 200A |
| 8 | Battery Type | LiFePO4 Battery | |||||
| 9 | Discharge Temp | -20℃~60℃ | |||||
| 10 | Charge Temp | 0℃~50℃ | |||||
| 11 | Dimension |
L198mm* |
L328mm* *215mm |
L405mm* W180mm *215mm |
L520mm* |
L520mm* W270mm *220mm |
L520mm* |
| 12 | Weight | 6.5kg | 13.6kg | 18.5kg | 23.8kg | 28.6kg | 32.5kg |
| 13 | Internal Resistance | ≤30mΩ | |||||
| 14 | Cycle Life | ≥3000 | |||||
Solar Panel Module - Tempered Glass
Low-iron tempered glass (also known as white glass), 3.2mm thick, boasts a transmittance exceeding 90% within the solar cell spectral response wavelength range (320-1100nm) and high reflectivity for infrared light above 1200nm. This glass is also UV-resistant with no loss of transmittance.
The tempering performance complies with the national standard GB9963-88, or the impact resistance of the encapsulated module meets the performance indicators specified in the national standard GB9535-88, Environmental Test Methods for Terrestrial Silicon Solar Cells.
12v Lead Acid Replacement Battery Structure
A lithium-ion battery is composed of interconnected lithium-ion cells, which are the individual components forming the entire battery.
The voltage of a lithium-ion cell varies depending on its specific chemical type. For example, a single lithium iron phosphate cell, typically has a nominal output voltage ranging from 3.2 to 3.8 volts. However, many lithium-ion batteries commonly have standard voltages of 12, 24, or 48 volts.
When cells are connected in series, their voltages add up. For instance, four cells connected in series will create a 12-volt battery, and eight cells in series form a 24-volt battery, and so on.
Additionally, it is possible to connect lithium-ion cells in parallel, which increases the overall capacity of the battery. When cells are connected in parallel, their capacities (and batteries) combine, resulting in a longer lifespan. For example, two cells connected in parallel will have a lifespan that is approximately twice as long as a single cell.
A lithium battery's interior consists of a number of lithium-ion cells that are connected by wires in series and parallel as well as a battery management system, or BMS.
12v Lead Acid Replacement Certificate
Warranty Policy
For Energy storage batteries, we offer 10 years warranty to give customers peace of mind. Within 10 years, maintained for free. During use, if there has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
12v Lead Acid ReplacementPakaging
FAQ
What Is the Electrolyte of a Lithium-Ion Battery?
A lithium-ion battery's electrolyte's function is to assist in the movement of positive lithium ions between the anode and cathode. A lithium salt is the most typical electrolyte found inside a lithium-ion battery.
What does a Separator do?
The separator is situated in-between the anode and cathode. Although it doesn't carry electricity, the separator is made of a thin strip of material that lets lithium ions pass through. The electrons are forced to travel through your electronic equipment, providing power, and it stops the anode and cathode from electrically shorting together.
In terms of safety, the divider is also crucial. Lithium ions can't travel through the pores of the separator if it becomes too hot because they close. A battery's health or a fire may be preserved by stopping the ions' flow through the battery cell.
