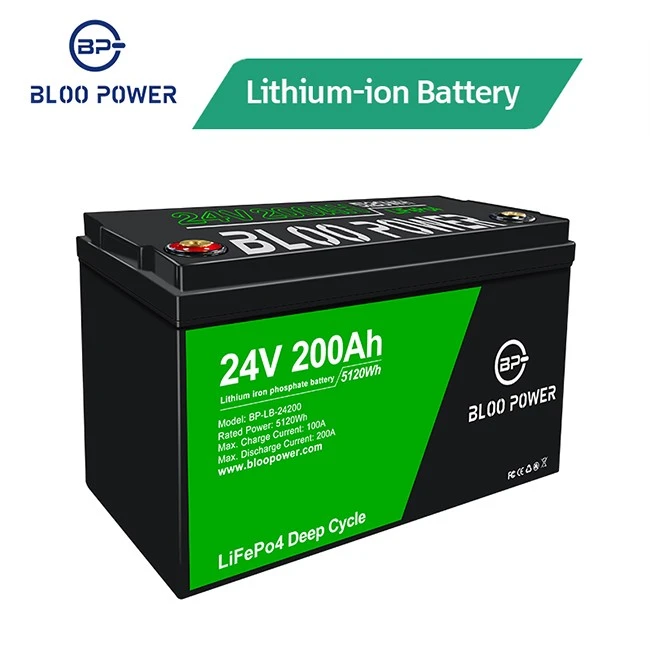

Long Lifespan Lithium Iron Phosphate Battery 24V 200Ah 5120Wh Power Out
2、Can connect up to four batteries in parallel or in series
The deep cycle 200Ah lifepo4 battery pack for home energy storage is always the choice of most people. It has three ways to charge: the solar panels, the grid, and the diesel engine. We have over 15 years experience, and you can get a good price lithium ion lifepo4 solar battery pack from our factory. With a professional team, we support various solutions per project, you can select the suitable one and enjoy our products and services.
Parameter
| NO | ITEM | SPEC | |||||
| 1 | Rated Capacity | 50AH | 100AH | 150AH | 200AH | 100AH | 200AH |
| 2 | Rated Voltage | DC-12.8V | DC-25.6V | ||||
| 3 | Rated Energy | 640wh | 1280wh | 1920wh | 2560wh | 2560wh | 5120wh |
| 4 | Operating Voltage | 10V～14.6V | 20V～29.2V | ||||
| 5 | Max. Charge Current | 50A | 100A | 100A | 100A | 100A | 100A |
| 6 | Max. Discharge Current | 70A | 100A | 100A | 100A | 100A | 100A |
| 7 | Peak Current | 140A | 200A | 320A | 320A | 300A | 320A |
| 8 | Battery Type | LiFePO4 Battery | |||||
| 9 | Discharge Temp | -20℃~60℃ | |||||
| 10 | Charge Temp | 0℃~50℃ | |||||
| 11 | Dimension |
L198mm* |
L328mm* *215mm |
L405mm* W180mm *215mm |
L520mm* |
L520mm* W238mm *225mm |
L520mm* |
| 12 | Weight | 6.5kg | 13.6kg | 18.5kg | 23.8kg | 19kg | 39kg |
| 13 | Internal Resistance | ≤30mΩ | |||||
| 14 | Cycle Life | ≥3000 | |||||
12v Lead Acid Replacement Battery Structure
1. BMS technology offers multiple safeguards for battery
2. Our Battery passed the MSDS/UN38.3/FCC/CE
3. Excellent low self-discharge feature
Solar Panels - Power Generation System
Solar Panel Concept: A solar power generation system consists of a solar cell array, a solar controller, and a battery pack. If the output power source is 220V or 110V AC, an inverter is also required. The functions of each component are as follows
Solar Panels
Solar panels are the core and most valuable component of a solar power generation system. They convert solar radiation into electrical energy, either storing it in a battery or powering a load. The quality and cost of the solar panels directly determine the quality and cost of the entire system.
Solar Controller
The solar controller controls the operating status of the entire system and provides overcharge and over-discharge protection for the battery. In environments with large temperature fluctuations, a qualified controller should also include temperature compensation. Other additional functions, such as light-controlled switching and time-controlled switching, should be optional.
Batteries
These are generally lead-acid batteries. In small and micro systems, nickel-metal hydride, nickel-cadmium, or lithium batteries can also be used. Its function is to store the electricity generated by solar panels during periods of sunlight and release it when needed.
Inverter
In many situations, 220VAC or 110VAC AC power is required. Since direct solar power output is generally 12VDC, 24VDC, or 48VDC, to power 220VAC appliances, the DC power generated by the solar power generation system must be converted into AC power, requiring a DC-AC inverter. In some situations, when loads with multiple voltages are required, a DC-DC inverter is also required, such as converting 24VDC power to 5VDC (note, this is not simply stepping down the voltage).
Company Advantage
BLOO POWER is the source manufacturer located in Shenzhen. We have 16 years of rich experience and are quite mature in production, technology and cost control.
1. Advanced manufacturing facilities: BLOO POWER has invested in advanced manufacturing facilities in order to utilizing cutting-edge technology and processes to produce high-quality lithium battery components.
2. Innovative technology: BLOO POWER is using the latest advancements in battery technology to enhance the performance, safety, and efficiency of their products.
3. High-quality battery components: BLOO POWER focused on producing high-quality lithium battery cells, modules, and packs. We cooperated with top suppliers. Like the CATL/BYD/EVE/GOTION for cell, and the PACE for BMS.
4. Complete product series: including the home energy storage systems, C&I energy storage systems, 12V/24V lithium-ion battery packs, portable power stations, power banks, lead-acid batteries, solar street lights and other related solar products.
5. Technician: our company is equipped with 10 technicians who can support customers with all kinds of questions, and make the better solution for customized projects.
6. Production capacity: with a 15000㎡ production base, we produce 200MWh per month, and 2GWh per year, meeting different sizes of projects.
7. We can keep abreast of market changes according to the feedback of our customers, So far, We have served more than 80,000 customers worldwide.
12v Lead Acid Replacement Certificate
12v Lead Acid ReplacementPakaging
Compatible Inverters
FAQ
Q: How do we address equipment issues during usage?
A: If you encounter any problems with our products, please don't hesitate to reach out to us via email, attaching pictures or a short video to illustrate the issue. Our team will promptly address the problem and, if necessary, send a replacement part free of charge during the warranty period.
Q: Is there overcharge and over discharge protection built into the battery?
A: Yes, the battery is equipped with advanced BMS technology that provides protection against overcharging and over discharging.
Q: Is it possible to overload the battery?
A: It is recommended to avoid overloading the battery as it may reduce its overall lifespan.
