Built-in 200A BMS Lithium Ion Battery Forklift Back-up
2、Impressive capacity, scalable battery

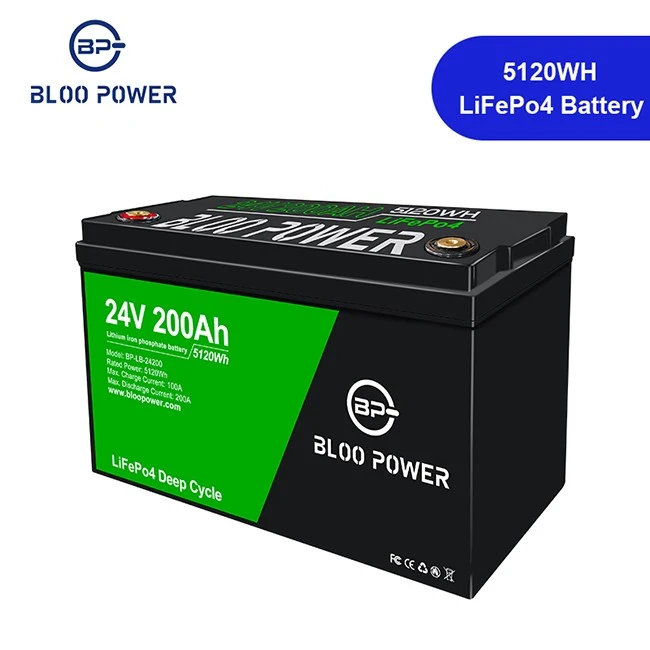

200Ah capacity type is the best selling lifepo4 lithium ion battery for backup. Integrated with an 8-cell prismatic lithium ion battery equipment that features high energy density, the small body holds a powerful 5120Wh energy with deep cycles that can power up golf carts, yachts, solar light, UPS backups, electric bicycles, solar systems, etc.
The scalable module can be expanded to a bigger capacity to meet different customers' needs. It's environmentally friendly, and can reduce your carbon footprint. And it's user-friendly, there is no need to maintain it once you get the charger.
Parameter
| NO | ITEM | SPEC | |||||
| 1 | Rated Capacity | 50AH | 100AH | 150AH | 200AH | 100AH | 200AH |
| 2 | Rated Voltage | DC-12.8V | DC-25.6V | ||||
| 3 | Rated Energy | 640wh | 1280wh | 1920wh | 2560wh | 2560wh | 5120wh |
| 4 | Operating Voltage | 10V～14.6V | 20V～29.2V | ||||
| 5 | Max. Charge Current | 50A | 100A | 100A | 100A | 100A | 100A |
| 6 | Max. Discharge Current | 70A | 100A | 100A | 100A | 100A | 100A |
| 7 | Peak Current | 140A | 200A | 320A | 320A | 300A | 320A |
| 8 | Battery Type | LiFePO4 Battery | |||||
| 9 | Discharge Temp | -20℃~60℃ | |||||
| 10 | Charge Temp | 0℃~50℃ | |||||
| 11 | Dimension |
L198mm* |
L328mm* *215mm |
L405mm* W180mm *215mm |
L520mm* |
L520mm* W238mm *225mm |
L520mm* |
| 12 | Weight | 6.5kg | 13.6kg | 18.5kg | 23.8kg | 19kg | 39kg |
| 13 | Internal Resistance | ≤30mΩ | |||||
| 14 | Cycle Life | ≥3000 | |||||
12v Lead Acid Replacement Battery Structure
1. Each pack is packed with an intelligent BMS
2. 3 times higher energy density than lead-acid battery
3. High efficiency with a low self-discharge rate
4. Durable ABS case protects the battery from collision
Why Choose a Built-in 200A BMS Lithium Ion Battery Forklift Back-up for Modern Material Handling?
The Built-in 200A BMS Lithium Ion Battery Forklift Back-up represents a high-performance, maintenance-free power solution designed specifically for electric forklifts in demanding industrial environments. This advanced lithium-ion system integrates a robust 200-amp Battery Management System (BMS) that ensures superior safety, efficiency, and reliability during continuous operation and emergency backup scenarios.
Industrial fleets require batteries that deliver consistent power while minimizing downtime. The Built-in 200A BMS Lithium Ion Battery Forklift Back-up excels by combining LiFePO4 chemistry with intelligent monitoring, enabling opportunity charging and multi-shift operations without performance degradation. Its built-in 200A continuous discharge capability supports high-current demands typical in Class I, II, and III forklifts.
Quality Control
1. Raw material quality control: all raw materials will be fully inspected before production. Only those that pass the inspection can be used for the next production step.
2. During production, Each process is supervised by QC staff, who will conduct production inspections from time to time. Any problems found will be solved as soon as possible.
3. QC before shipment: all products will be subjected to aging tests, and each batch of goods needs to provide a full-process quality control report, and no defects are allowed.
12v Lead Acid Replacement Certificate
12v Lead Acid ReplacementPakaging
Compatible Inverters
FAQ
Q: Is it possible for us to act as your agent?
A: Of course, we welcome you being our agent.
Q: Is it possible to arrange a visit to your factory located in China?
A: Certainly, you are welcome to visit our factory and take a tour of our facilities.
Q: Is there customer support available for batteries?
A: Our company offers various channels for customer support, including through messaging platforms such as WhatsApp, Skype, and WeChat, as well as email. If you encounter any issues with your battery after purchase, we are available for video calls and, if needed, our engineers can even travel overseas to provide on-site assistance.
