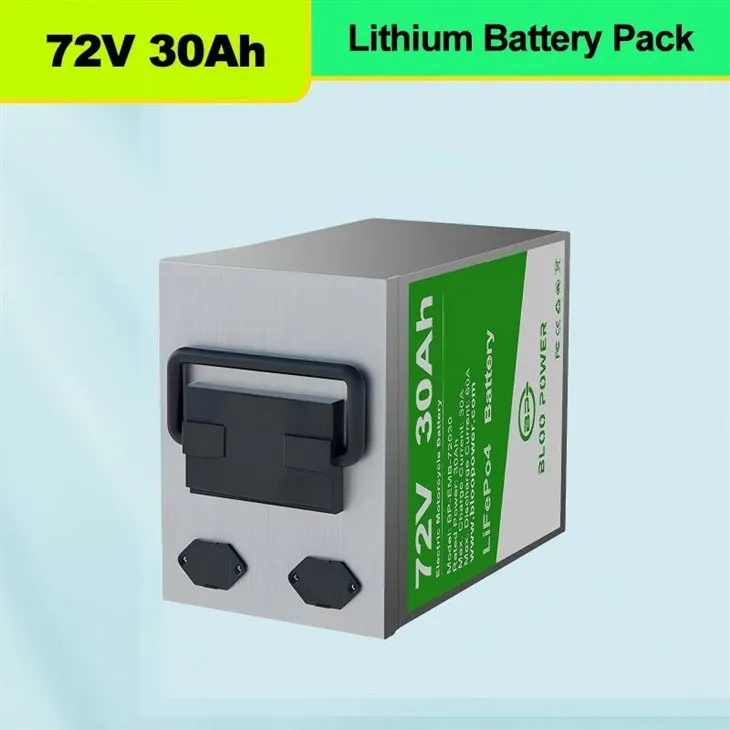

Advanced Electric Motorcycle 72v 30Ah LiFePO4 Battery Pack
2、Rated Power: 2160Wh
When choosing power sources for electric motorcycles, the 72V 30Ah LiFePO4 battery pack emerges as a high-performance option.Lifepo4 energy storage battery, with their advanced technology for renewable energy storage and manufacturing processes, come at a superior energy density than lead-acid batteries. What's more,for users seeking long term value and better performance (like those who ride frequently or need extended range), the LiFePO4 battery pack's longer lifespan and higher capacity offset the higher cost over time.
Parameter
| Model No. | BP-LB-48030 | BP-LB-60040 | BP-LB-72030 | BP-LB-72050 |
| Rated Voltage | 51.2V | 64V | 76.8V | 76.8V |
| Cell Combination Type | 16S | 20S | 24S | 4S |
| Rated Capacity | 30Ah | 40Ah | 30Ah | 50Ah |
| Voltage Range | 40V-58.4V | 50V-73V | 60V-87.6V | 60V-87.6V |
| Depth of Discharge | 80% | 80% | 80% | 80% |
| Charge Current | 30A | 40A | 30A | 25A |
| Discharge Current | 30A | 40A | 30A | 50A |
| Maximum Continuous Charge Current | 15A | 25A | 15A | 25A |
| Maximum Continuous Discharge Current | 60A | 80A | 60A | 60A |
| Dimension | L160*W122.4*H256.5mm | L160*W183.8*H271.5mm | L181.4*W160*H257.5mm | L287*W265.4*H160mm |
| Weight | 13kg | 18kg | 17kg | 26kg |
| Operation Temperature | Charge: 24℃~45℃, Discharge: -20℃~55℃ | |||
| Storage Temperature | Keep at 0℃~50℃ | |||
| Cell Tpye | Lithium ion Phosphates Battery | |||
| Maintenance | Maintenance free | |||
| BMS | Intellgent battery mangement system | |||
Similar Products
Battery dehydration
This is primarily manifested by a decrease in battery capacity, which can lead to thermal runaway, deformation of the positive plate, and expansion of the battery.
Repair method: Pry off the cover on the electric vehicle battery; remove the rubber cap to expose the vent. Observe the vent to see if the battery is dry. If so, rehydrate it. It is recommended to use a disposable medical syringe and double-distilled water. Be cautious when adding water, and add more if it's insufficient.
Power Battery Generator With Lifepo4 Highlight :
Multiple Protections,safe charge and discharge
Rated Power: 2160Wh
Voltage range:60V-87.6V
Electric motorcycle battery energy storage
Depth of discharge:80%~90%
Eco-friendly and lowering carbon emissions
Lead-acid batteries primarily consist of positive and negative plates, separators, an electrolyte, and a casing. Both the positive and negative plates are made of lead and its oxides, and the electrolyte is a sulfuric acid solution. During charging, electrical energy is converted into chemical energy. Lead sulfate is reduced to lead and lead dioxide at the electrodes, absorbing sulfuric acid to form water, increasing the density of the electrolyte. During discharge, the opposite occurs: chemical energy is converted into electrical energy, and lead and lead dioxide react with sulfuric acid to form lead sulfate, decreasing the electrolyte density.
Shipping term
For battery products, the transportation is mostly by sea, and shipping time varies from 20 to 60 days depending on the region.
If you have a trusted freight forwarder, we can deliver the goods to your freight forwarder and assist with transportation and customs clearance. If you need our help, our cooperating forwarder will provide the shipping service for you. The forwarder can deliver to the port, in this situation, you need to do the customs clearance, pay the taxes, and pick up the goods by yourself; The forwarder also can deliver to your specific address, in this situation, the forwarder will help to do the customs clearance and tax payment, all you need to do is to receive goods in your place.
May be you will like
FAQ
Q: What sets your battery apart from those offered by other suppliers?
A: Our battery is known for its safety features and long lifespan, which sets it apart from those offered by other suppliers.
Q: How does your battery ensure greater safety compared to others?
A: Our batteries are designed with safety as a top priority, with the latest technologies incorporated to ensure the protection of the battery from overheating, overcharging, and over-discharging.
Q: What are the reasons to choose your company?
A: Our team consists of experienced sales professionals and dedicated R&D specialists, ensuring that you receive a qualified product at a competitive price. Additionally, we pride ourselves on timely delivery and providing sincere, attentive customer service.
Q: What is the proper method for storing batteries?
A:To ensure proper battery storage, it's recommended to avoid both deep discharging and prolonged charging, and to keep the battery in a environment that is not too hot or too cold for an extended period of time. Additionally, it's important to store the battery in a place where it will not be exposed to moisture.
Q: What are the ways to maintain a battery?
A: The steps to properly maintain a battery include: avoiding deep discharging, regularly monitoring its charging status, and keeping the battery at optimal temperature and humidity levels to prevent overheating or excessive moisture.
