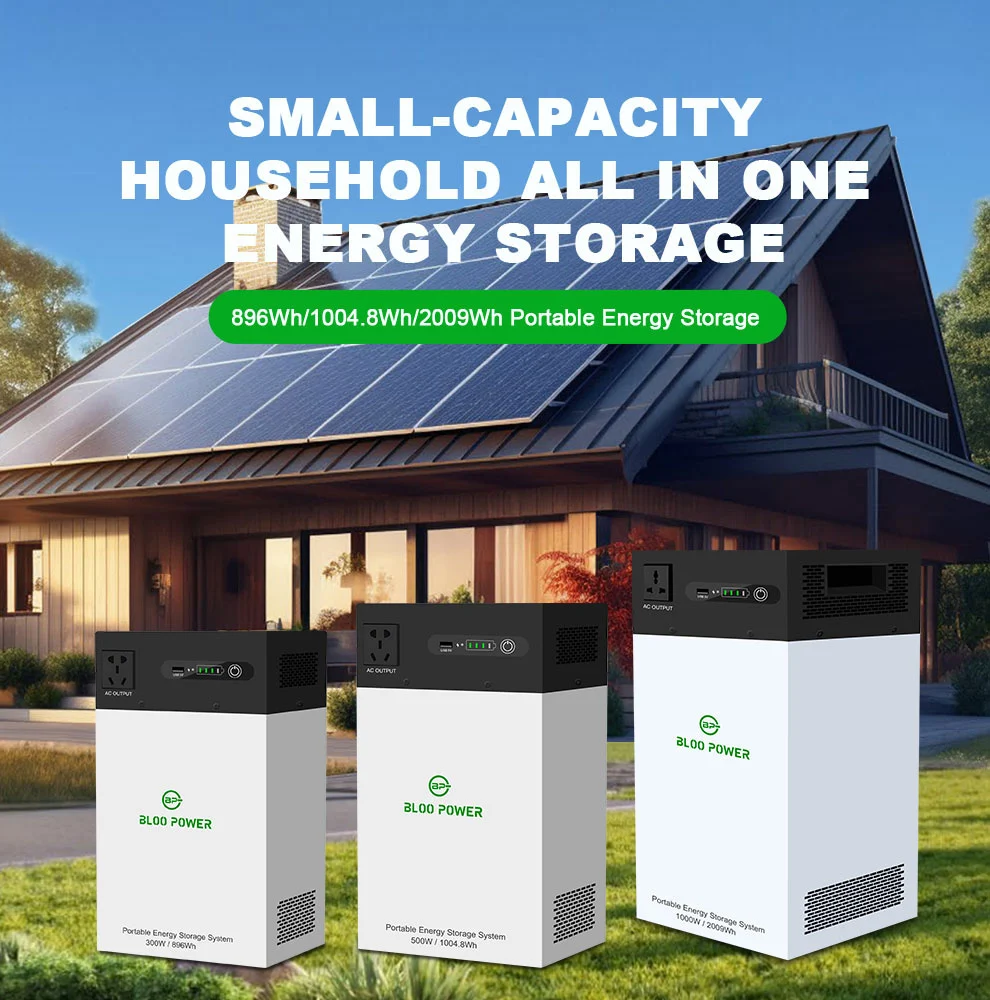

1KWh 1KW 500W Small Capacity Battery Storage All-In-One System For Home
In sunny but grid-unreliable African households, a compact 1kWh 1kW 500W small capacity battery storage all-in-one system for home in Africa-powered by reliable lithium technology from BLOOPOWER-has become the most practical entry-level solar energy solution in 2025. These plug-and-play units combine solar charge controller, lithium battery, and pure sine wave inverter in one box, perfectly matching the daily needs of rural and peri-urban homes that only require lighting, phone charging, fans, and small TVs.
All-in-one battery energy storage systems address key pain points in renewables integration: intermittency, space constraints, and high upfront costs. By embedding Power Conversion Systems (PCS) and Energy Management Software (EMS), they enable seamless on-grid/off-grid switching in under 10 ms, ideal for microgrids and EV charging.
Unlike modular or split systems, all-in-one battery energy storage systems minimize wiring complexity, reduce installation time by up to 40%, and achieve 95–98% round-trip efficiency (RTE) via DC-coupled designs. NREL's 2025 Residential Battery Storage Update highlights their role in boosting PV utilization from 60% to over 90%, cutting CO2 emissions by 1–2 tons annually per household while supporting Virtual Power Plants (VPP) for ancillary revenue.
Parameter

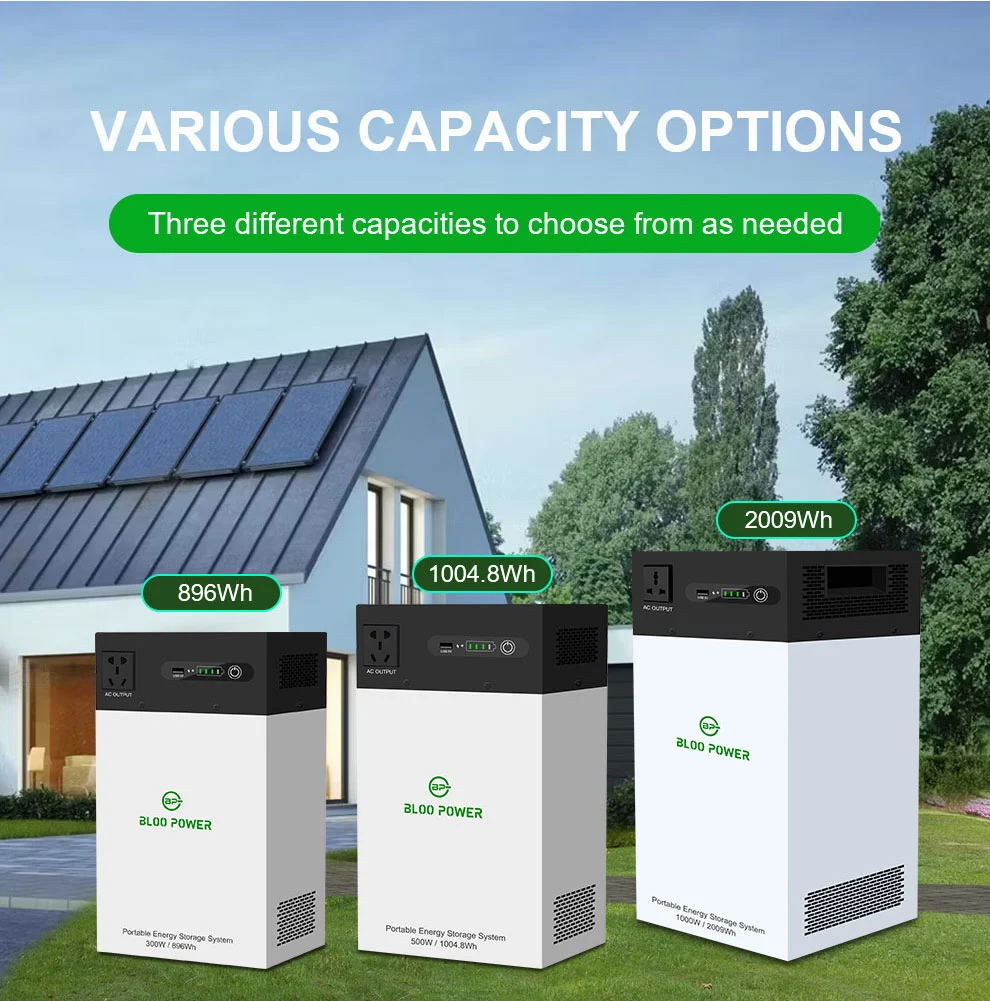

| Model | BP-ALL-896WH | BP-ALL-1000WH | BP-ALL-2009WH |
| Inverter/Charger | |||
| Rated AC Output Power | 300W | 500W | 1000W |
| Output Voltagc Wavoform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Output Voltage | 185~230VAC50Hz | 185~230VAC50Hz | 185~230VAC50Hz |
| Low DC Warning Point | ≤19% | ≤19% | ≤19% |
| Low DC Cut-off Voltage | 2.9Vdc | 2.9Vdc | 5.8Vdc |
| Low DC Warning Return Voltage | >20% | >20% | >20% |
| Charging Powor(Utility and sola rtogcthcr) | 400W Max | 500W Max | 800W Max |
| Bulk Charging Voltage | 3.6Vdd | 3.6Vdd | 7.2Vdd |
| Float Charging Voltage | 3.5Vdd | 3.5Vdd | 7.2Vdd |
| ACInput | |||
| Nominal Input Voltage | 230Vac | 230Vac | 230Vac |
| Low Loss Voltagc | 90Vac±7 | 90Vac±7 | 90Vac±7 |
| Low Loss Returm Voltage | 100Vac±7 | 100Vac±7 | 100Vac±7 |
| High Loss Voltage | 280Vac±7 | 280Vac±7 | 280Vac±7 |
| High Loss Returm Voltage | 270Vgc+7 | 270Vgc+7 | 270Vgc+7 |
| Max. AC Input Voltage | 300VaC | 300VaC | 300VaC |
| Nominal Input Frequency | 45~65Hz | 45~65Hz | 45~65Hz |
| AC Charging Power | 300WMax |
500WMax |
800WMax |
| Solar Input | |||
| Nominal PV Voltage | 30Vdc | 30Vdc | 38Vdc |
| PV Array MPPT Voltage Range | 10Vdc~55Vdc | 10Vdc~55Vdc | 13Vdc~55Vdc |
| Max. PV Array Open Circuit Voltage | 56Vdc | 56Vdc | 56Vdc |
| Solar Charging Power | 300W Max. | 300W Max. | 550W Max. |
| Lithium lron Battery | |||
| Capacity | 896Wh | 1004.8Wh | 2009Wh |
| Nominal Battery Voltage | 3.2Vdc | 3.2Vdc | 6.4Vdc |
| Typical Capacity | 280Ah | 314Ah | 314Ah |
| Max. Charge Current | 130A | 220A | 220A |
| Max. Discharge Current | 130A | 220A | 220A |
| Operation Voltage Range | 2.9Vdc~3.6Vdc | 5.8Vdc~7.2Vdc | |
| Operation Temperature | -10°℃~+50°℃ | ||
| DC Output | |||
| DC Output Power | 5W Max. | ||
| DC Output Socket | 1pcs 5V1A USB charger | ||
| Display Function | |||
| LED Indicator | 4pcs SOC indicators, 1pcs working status indicators | ||
| Protection | Ovcrchargc protcction,Ovcrdischargc protoction.Ovcrcurrcnt protoction Shortcircuit protection,Overtemperature protection |
||
| Ambient | |||
| Noise(dB) | <40dB(1meter) | ||
| working Temperature | -10℃~+50°℃ | ||
| Humidity | 5~95%(no condensgtion) | ||
| Sca Lovol(m) | ≤2000 | ||
| Dimension | |||
| LxWxH(products size) | 312*215*146mm | 356*210*156mm | 422*295*160mm |
| Weight(NW Kg) | 9.9Kg | 11.0Kg | 22.7Kg |
Advantages of All In One ESS
Highly integrated and easy to use

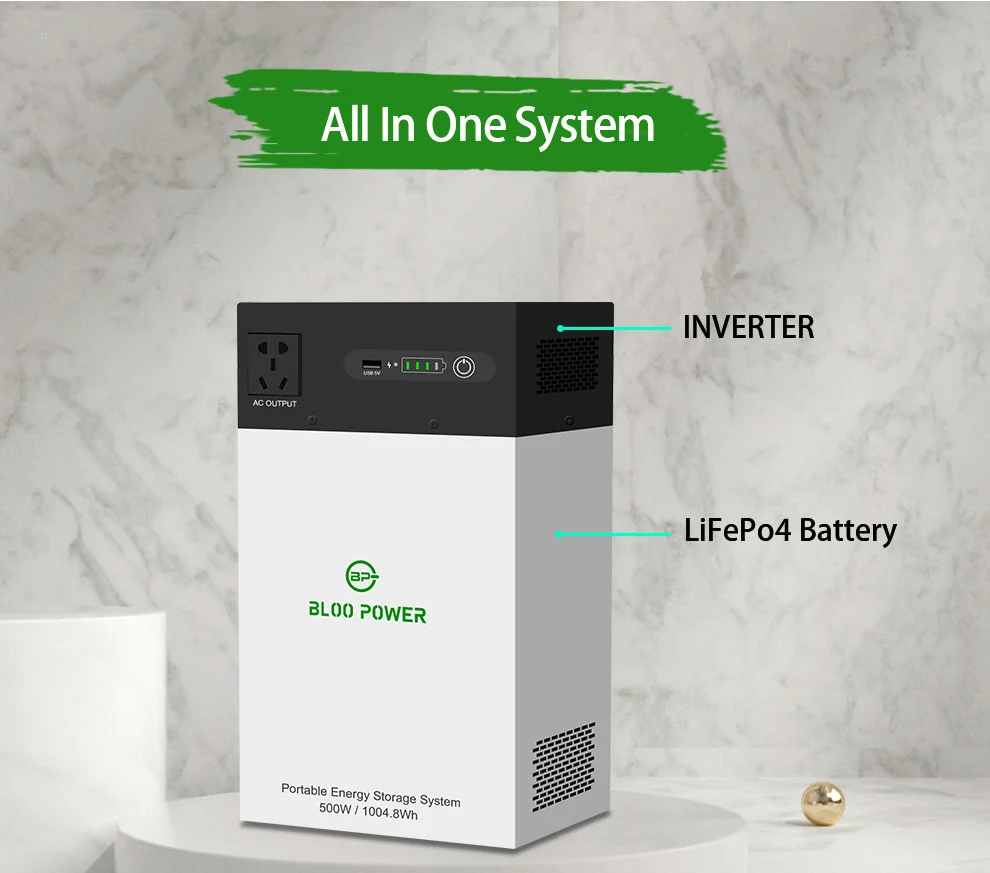

Integrating the inverter, battery, BMS, and power management system into one unit eliminates the need for complex wiring, allowing for immediate use upon power-up and easy operation even for beginners.
Portable design, power anytime, anywhere
Small in size and light in weight, equipped with a handle or wheels, it is suitable for camping, road trips, outdoor work and other scenarios, truly realizing a "mobile power station".
Multiple output interfaces, strong compatibility
Supports multiple interfaces such as AC, DC, USB, and Type-C, and can simultaneously power devices such as mobile phones, laptops, drones, and small home appliances.
High safety performance
Built-in multiple protection mechanisms (overcharge, over-discharge, short circuit, over-temperature, etc.), coupled with intelligent BMS, ensure stability and reliability, making it safer to use.
Frequent power outages (averaging 200–600 hours/month in many sub-Saharan countries) make a 1kWh 1kW 500W small capacity battery storage all-in-one system for home in Africa the ideal "starter pack".
As power challenges persist across Africa, many households face frequent blackouts, rising electricity costs, and unreliable grid power. To address these issues, homeowners in Nigeria, Kenya, South Africa, and Ghana have installed BLOO POWER 1KWh all-in-one home energy storage system, integrating advanced LiFePO4 battery technology with solar power to achieve greater energy independence and long-term savings.
Warranty Policy
For Energy storage batteries, we offer 10 years warranty to give customers peace of mind. Within 10 years, maintained for free. During use, if there has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
May Be You Will Like
FAQ
Q: What is the reason for needing a home energy storage battery?
A: By installing a home energy storage battery, homeowners can enjoy both cost savings on their energy bills and peace of mind during power outages.
Having a storage battery in your home means that you can store electricity when it's available, and then use it when it's needed. This can help reduce your reliance on the grid, which can lead to lower energy bills. Additionally, if there is a power outage, you will still have access to electricity, as the stored energy in your battery can provide a backup power source.
Q: Can you explain what a home energy storage battery is?
A: Home energy storage batteries serve as a reliable source of electricity during times when renewable sources like solar panels are not producing enough power. This can help homeowners save on their energy bills and maintain a steady power supply, even during power outages.
Q: How do I go about placing an order?
A: We are currently offering a big promotion in the market and would welcome the opportunity to cooperate with you. For more information, please don't hesitate to contact us.
Q: When can I expect to receive a quotation?
A: We generally respond to inquiries with a quote within 24 hours. If you require a quicker response, please let us know and we will prioritize your request.
Q: Is it possible to use an alternative AC adapter, or a non-branded AC adapter, to charge the power station?
A: You can contact us to find out if a different AC adapter can be used to charge your power station. We suggest you to provide us with your order number and model information for further assistance.
