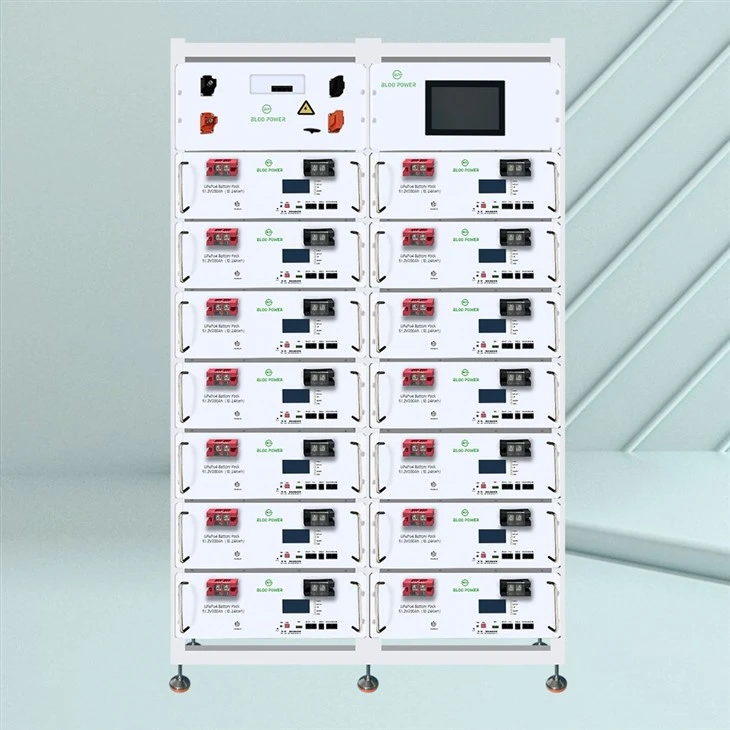

White Black Solar 100kwh Battery For Energy Storage With Compact Size
2. Modular design for ultra-easy expansion
To DIY 100KWh battery for energy storage is not a hard project, our high voltage battery bank is a parallel connection by using seven 14.3KWh rack batteries, The modular design unit allows it easily to add energy without effort. Each unit with an LCD shows the battery's data at any time, very safe and reliable.
This rechargeable 100kwh battery for energy storage is equipped with an advanced BMS that supports most of the on-off hybrid inverters, monitors and manages the battery all the time. It requires no maintenance after setup, a user-friendly device to use.
Parameter
|
NO |
Model No. |
BP-HP-50KWH |
BP-HP-100KWH | BP-HP-150KWH | BP-HP-200KWH | |||
|
1 |
Rated Voltage |
256V |
358.4V | 512V | 716.8V | |||
|
3 |
Rated Capacity |
200Ah |
280Ah | 300Ah | 280Ah | |||
|
4 |
Rated Energy |
51.2KWh |
100.3KWh | 153.6KWh | 200.7KWh | |||
| 5 | Voltage Range | 200V～292V | 280V～408.8V | 400V～574V | 627.2V～817.6V | |||
|
6 |
Cycles(80% DOD) |
6500 cycles |
6500 cycles | 6500 cycles | 6500 cycles | |||
|
7 |
Depth of Discharge |
80% |
80% | 80% | 80% | |||
|
8 |
Charge Current |
40A |
40A | 40A | 40A | |||
|
9 |
Discharge Current |
40A | 40A | 40A | 40A | |||
|
10 |
Maximum Continuous Charge Current |
160A |
160A | 160A | 160A | |||
|
11 |
Maximum Continuous Discharge Current |
200A |
200A | 200A | 200A | |||
|
12 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||||||
| 13 | Display | LCD | ||||||
| 14 | Cell Type | LiFePo4 Lithium Ion Phosphate Battery | ||||||
| 15 | Communication | RS485/CAN/RS232 | ||||||
| 16 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||||||
| 17 | BMS | Intelligent battery mangement system | ||||||
Product Features
1. Suitable for farms, shopping malls, factories, buildings, etc.
2. Low voltage can connect max 16pcs in parallel.
3. Faster charging and high efficiency.
4. Support to do your own brand battery
It's more lightweight and compact than wall-mounted, and we support doing 4U or 3U design for different heights. It can be racked, installed in a cabinet, or just stacked up directly according to your requirement
Product qualification
Compatible Inverters
Packaging
About us
FAQ
Q：Is it possible to customize the size of the battery?
A： Yes, we offer tailored solutions to meet the unique needs of our customers by providing custom-sized batteries to fit their specifications.
Q：Is there a minimum order quantity requirement?
A：No.order one and we can also sell.
Q：Are there any discounts available for large orders?
A：We offer varying discounts based on the size and scope of your order.
