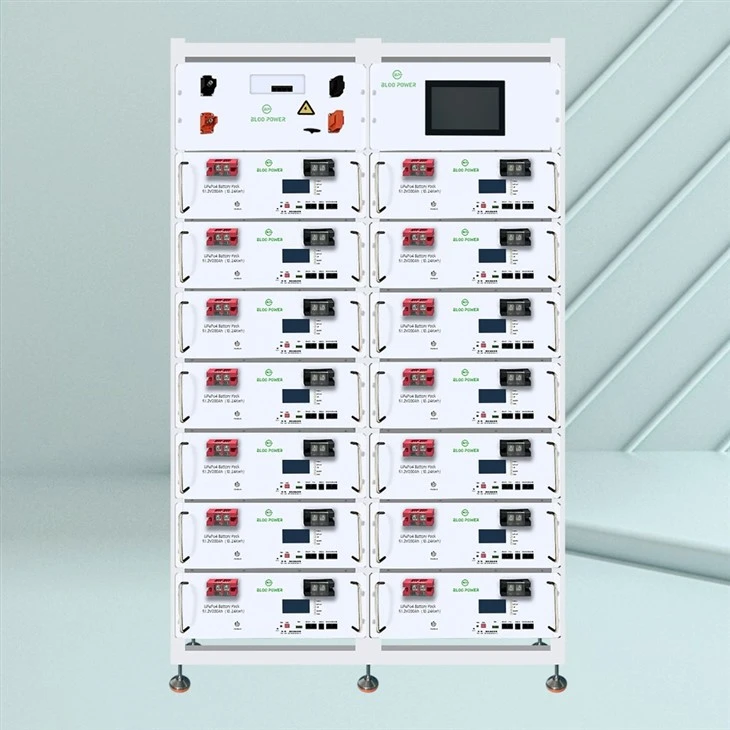

50KWh HV Industrial Battery Storage System Rack Design
2. The inner BMS offers various protections
Enabling renewable energy with battery energy storage systems, no leakage, no explosion, no maintenance, our Bloo Power BESS battery energy storage systems use multi-level energy consumption management, max the performance to a large degree.
It can be customized to 3U, with less height to save more space when installed together. This 50KWh rack-mounted battery features advanced lithium iron phosphate battery cells, integrated with a battery management system to assure safety during transportation and work
.
Parameter
|
NO |
Model No. |
BP-HP-50KWH |
BP-HP-100KWH | BP-HP-150KWH | BP-HP-200KWH | |||
|
1 |
Rated Voltage |
256V |
358.4V | 512V | 716.8V | |||
|
3 |
Rated Capacity |
200Ah |
280Ah | 300Ah | 280Ah | |||
|
4 |
Rated Energy |
51.2KWh |
100.3KWh | 153.6KWh | 200.7KWh | |||
| 5 | Voltage Range | 200V～292V | 280V～408.8V | 400V～574V | 627.2V～817.6V | |||
|
6 |
Cycles(80% DOD) |
8000 cycles |
8000 cycles | 8000 cycles | 8000 cycles | |||
|
7 |
Depth of Discharge |
80% |
80% | 80% | 80% | |||
|
8 |
Charge Current |
40A |
40A | 40A | 40A | |||
|
9 |
Discharge Current |
40A | 40A | 40A | 40A | |||
|
10 |
Maximum Continuous Charge Current |
160A |
160A | 160A | 160A | |||
|
11 |
Maximum Continuous Discharge Current |
200A |
200A | 200A | 200A | |||
|
12 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||||||
| 13 | Display | LCD | ||||||
| 14 | Cell Type | LiFePo4 Lithium Ion Phosphate Battery | ||||||
| 15 | Communication | RS485/CAN/RS232 | ||||||
| 16 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||||||
| 17 | BMS | Intelligent battery mangement system | ||||||
Product Features
1. Each equipment with LCD for real-time battery status.
2. Can customize your logo, voltage and capacity.
3. Solar energy storage reduces carbon footprint.
4. Powering up green energy.
What Are the Core Technical Specifications of a 50KWh HV Industrial Battery Storage System Rack Design?
In the evolving landscape of commercial and industrial energy storage, the 50KWh HV Industrial Battery Storage System Rack Design stands out as a compact, high-efficiency solution for peak shaving, backup power, and renewable integration. High-voltage (HV) configurations-typically operating at 400–800V DC-minimize cable losses and simplify integration with existing electrical infrastructure.
A typical 50KWh HV Industrial Battery Storage System Rack Design employs Lithium Iron Phosphate (LFP) prismatic cells arranged in modular racks within a cabinet or open-frame enclosure. Nominal voltage ranges from 409.6V to 716.8V, with continuous power output of 50 kW (1C rate) and usable energy of approximately 47.5 kWh at 95% depth of discharge (DoD). Cycle life exceeds 8,000 cycles at 80% DoD and 25°C, with calendar life of 10–15 years. Round-trip efficiency reaches 95–98%, supported by active thermal management and an advanced Battery Management System (BMS).
Company Advantage
BLOO POWER is the source manufacturer located in Shenzhen. We have 16 years of rich experience and are quite mature in production, technology and cost control.
1. Advanced manufacturing facilities: BLOO POWER has invested in advanced manufacturing facilities in order to utilizing cutting-edge technology and processes to produce high-quality lithium battery components.
2. Innovative technology: BLOO POWER is using the latest advancements in battery technology to enhance the performance, safety, and efficiency of their products.
3. High-quality battery components: BLOO POWER focused on producing high-quality lithium battery cells, modules, and packs. We cooperated with top suppliers. Like the CATL/BYD/EVE/GOTION for cell, and the PACE for BMS.
4. Complete product series: including the home energy storage systems, C&I energy storage systems, 12V/24V lithium-ion battery packs, portable power stations, power banks, lead-acid batteries, solar street lights and other related solar products.
5. Technician: our company is equipped with 10 technicians who can support customers with all kinds of questions, and make the better solution for customized projects.
6. Production capacity: with a 15000㎡ production base, we produce 200MWh per month, and 2GWh per year, meeting different sizes of projects.
7. We can keep abreast of market changes according to the feedback of our customers, So far, We have served more than 80,000 customers worldwide.
It's more lightweight and compact than wall-mounted, and we support doing 4U or 3U design for different heights. It can be racked, installed in a cabinet, or just stacked up directly according to your requirement
Product qualification
Compatible Inverters
Packaging
About us
FAQ
Q：Do you manufacture lithium batteries?
A： Yes, our factory specializes in the production of lithium batteries and has been doing for more than 10 years.
Q：Is there a minimum order quantity requirement?
A：No.order one and we can also sell.
Q：Are there any discounts available for large orders?
A：We offer varying discounts based on the size and scope of your order.
