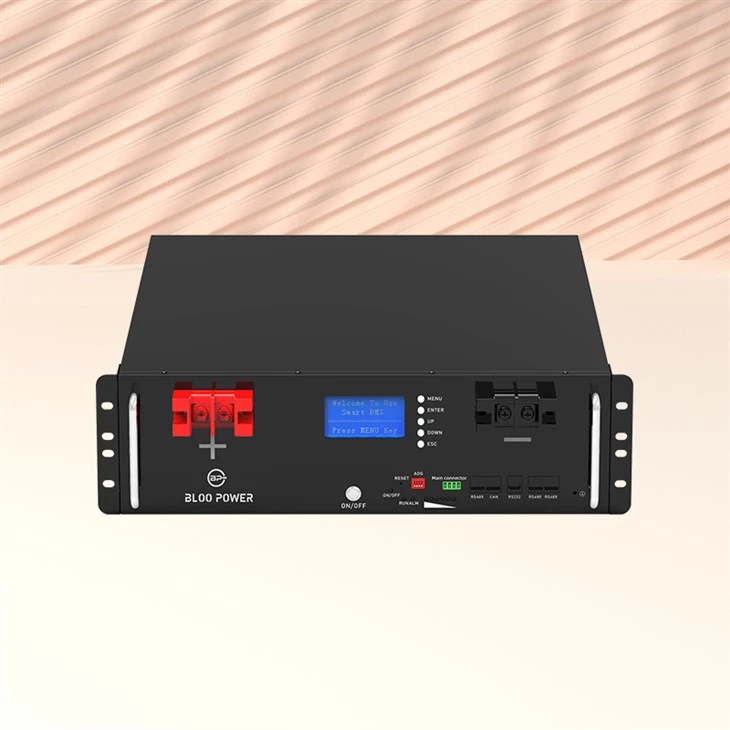

48V 200Ah LiFePo4 Lithium Ion Solar Battery Pack For Residential
2.Lcd display can monitoring the battery in real time
This 48V 200Ah LiFePo4 lithium ion solar battery pack for residential is a perfect choice for those who want to enjoy their life with stable electricity. Each 10KWh rack mounted solar system energy storage battery features an intelligent battery management system, providing multiple protections at all times. With an LCD design, checking the information of the battery LiFePo4 battery 48V 200Ah becomes easy.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-3U |
BP-HP-7KWH-3U |
BP-HP-10KWH-3U |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
8000 cycles |
8000 cycles | 8000 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L550*W442*H131mm |
L570*W442*H131mm |
L600*W442*H131mm |
|
15 |
Battery Type |
Rack-mounted |
||
|
16 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||

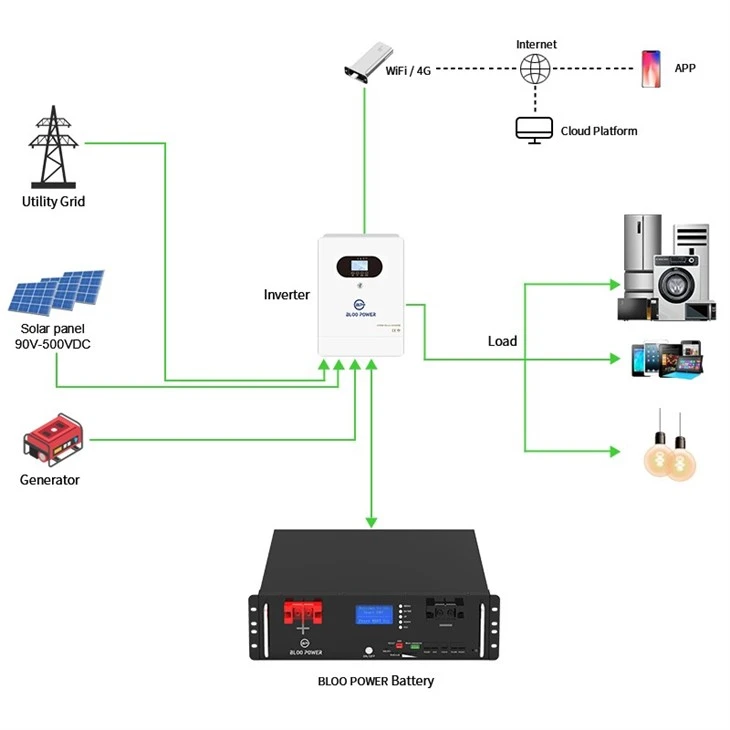

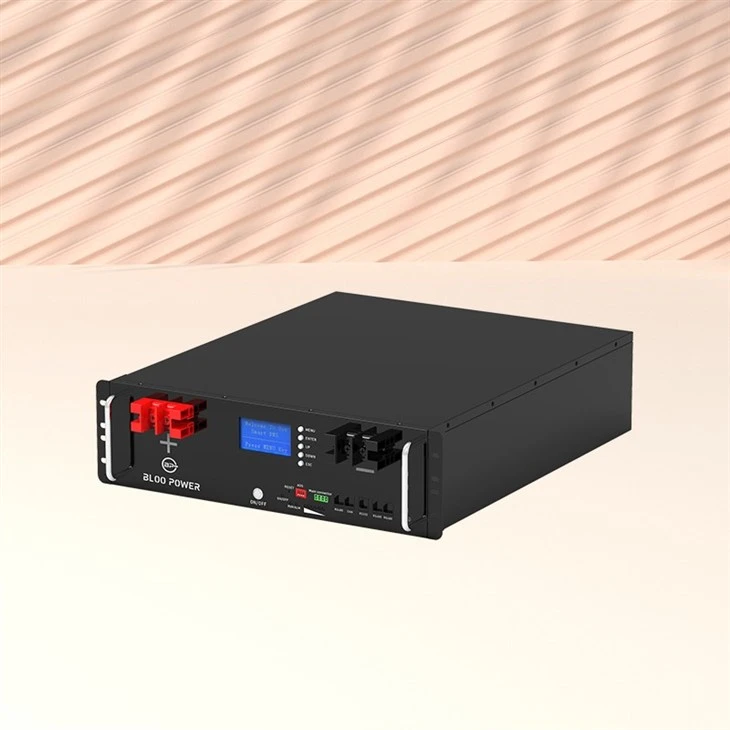

| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features

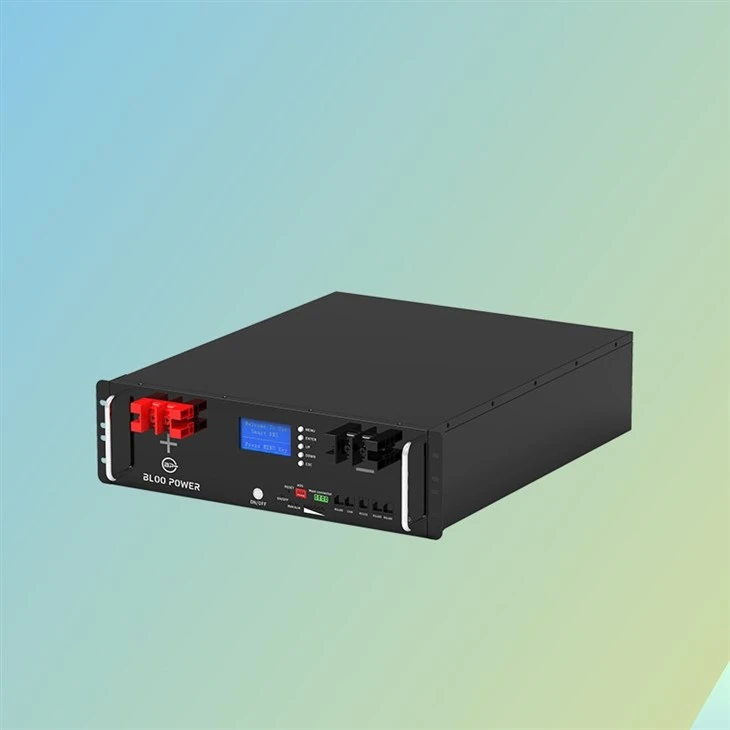

1. Rack type has 4U and 3U optional.
2. Communicate interface:RS232,RS485,CAN.
3. Support maximum 16 units same battery in parallel.
What Makes the 48V 200Ah LiFePO4 Lithium Ion Solar Battery Pack For Residential a Top Choice for Home Energy Storage?
The 48V 200Ah LiFePO4 Lithium Ion Solar Battery Pack For Residential is engineered for seamless compatibility with 48V inverters common in home solar setups. It offers high energy density in a compact form factor, often wall-mounted or rack-configurable, with weights around 70-80 kg depending on the model-significantly lighter than equivalent lead-acid banks.
Key technical advantages include a typical cycle life of 8,000–10,000+ cycles at 80-100% depth of discharge (DoD), far exceeding lead-acid batteries (often 500–1,000 cycles). This translates to 10–15+ years of service in daily solar cycling scenarios. Efficiency ratings often exceed 95-98% round-trip, minimizing energy losses. Built-in Battery Management Systems (BMS) provide multi-level protection against overcharge, over-discharge, thermal extremes, and short circuits.
Installation Policy
Solar energy system products require professional technicians to install. For safety reasons, we do not recommend that customers install solar products themselves unless they are professional technicians.
We can provide technical support during the installation process. If you have any questions, please send us the relevant photos and videos for communication and check. We will provide online technical services in time.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Is the cost of the battery reasonable?
A：Yes, we offer competitive pricing for our batteries by carefully considering the model and quantity to provide the best value for our customers.
Q：Can battery deformations occur during transportation?
A：Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
Q：Is it possible to arrange a visit to your factory located in China?
A：Certainly, you are welcome to visit our factory and take a tour of our facilities.
