51 Voltage 48V Lifepo4 Battery Energy Storage Battery Solar Home Solar System Solution
2.Battery status can be checked easily from the LCD

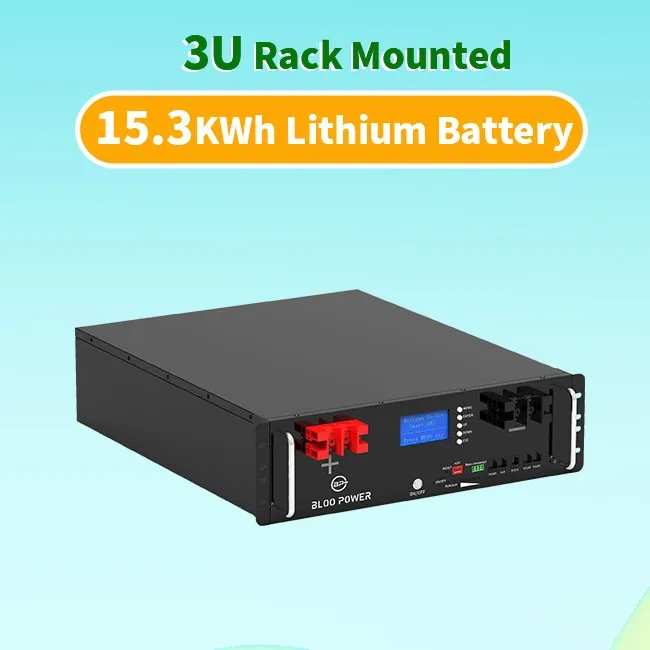

Comprehensive storage system lithium-ion battery storage energy comes with parallel cables for enlarging capacity, and the communication interfaces support connecting with various mainstream inverters. This black elegant rack mount battery adopts an independent battery management system to keep the battery under good status.
Most battery energy storage companies will produce kinds of different quality level items, to pick up a battery that suits your projects need to check more details and do a sample test before a big order.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-3U |
BP-HP-7KWH-3U |
BP-HP-10KWH-3U |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L550*W442*H131mm |
L570*W442*H131mm |
L600*W442*H131mm |
|
15 |
Battery Type |
Rack-mounted |
||
|
16 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Lightweight and less high than 4U battery.
2. OEM/ODM: current, voltage, capacity, color, package, logo, etc..
3. No maintenance, inner BMS will balance the battery all the time.
4. LiFePo4 battery offers longer cycles and high-density power than lead-acid battery.
Why 51.2V (48V Nominal) LiFePO4 Is the Best Chemistry for Home Solar in 2025
A 51.2V 48V LiFePO4 battery energy storage battery home solar system solution offers unmatched safety (no thermal runaway below 270°C), 6,000–12,000 cycles at 80% DoD¹, and zero cobalt/nickel. Unlike NMC or lead-acid, LiFePO4 experiences <1% annual degradation in typical daily cycling (Fraunhofer ISE 2025 field data).
Pre-sale, in-sale and after-sale service
Pre-sale: we will help you do a highly cost-effective solutions according to your specific requirements.
In-sale: we will update the pictures and videos for customers when producing; Offer quality control reports before delivery; and assist with delivery and customs clearance.
After-sale:
For installation, we offer online technical support; If you have any questions during the installation, contact us with relevant pictures and videos in time. During usage, if has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Can batteries conserve energy?
A：Our batteries are designed with energy efficiency in mind and are capable of saving energy, leading to improved battery performance and cost savings for the user.
Q：How do I go about placing an order?
A：We are currently offering a big promotion in the market and would welcome the opportunity to cooperate with you. For more information, please don't hesitate to contact us.
Q：When can I expect to receive a quotation?
A：We generally respond to inquiries with a quote within 24 hours. If you require a quicker response, please let us know and we will prioritize your request.
