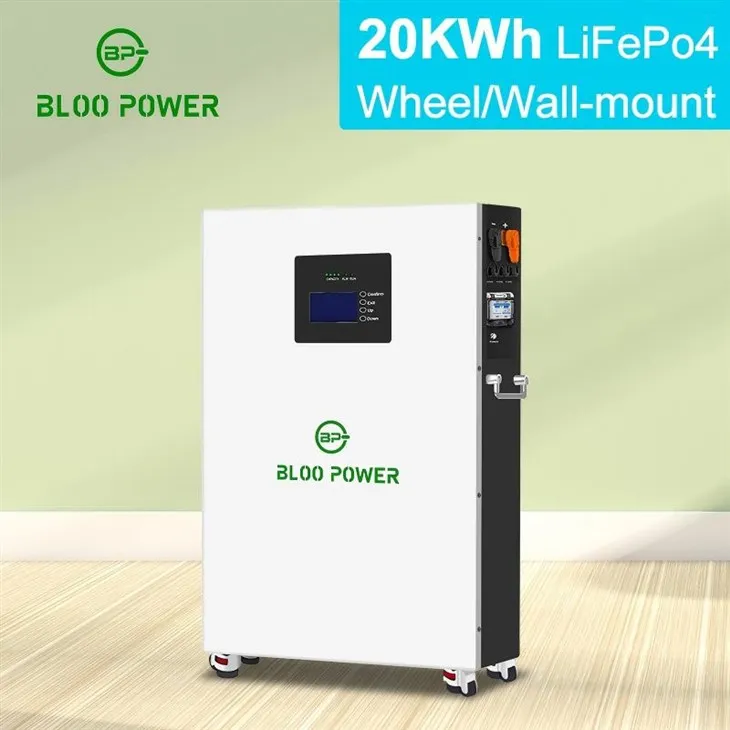

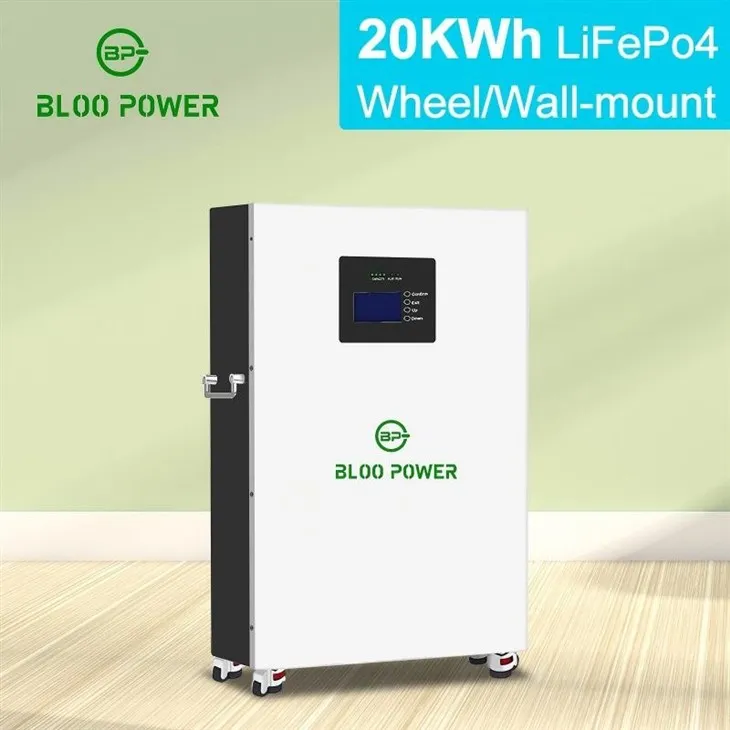

Green Energy Home Energy Storage 20KWh Rechargeable Battery Pack
2、Power wall 20 KW energy system for outage and emergencies

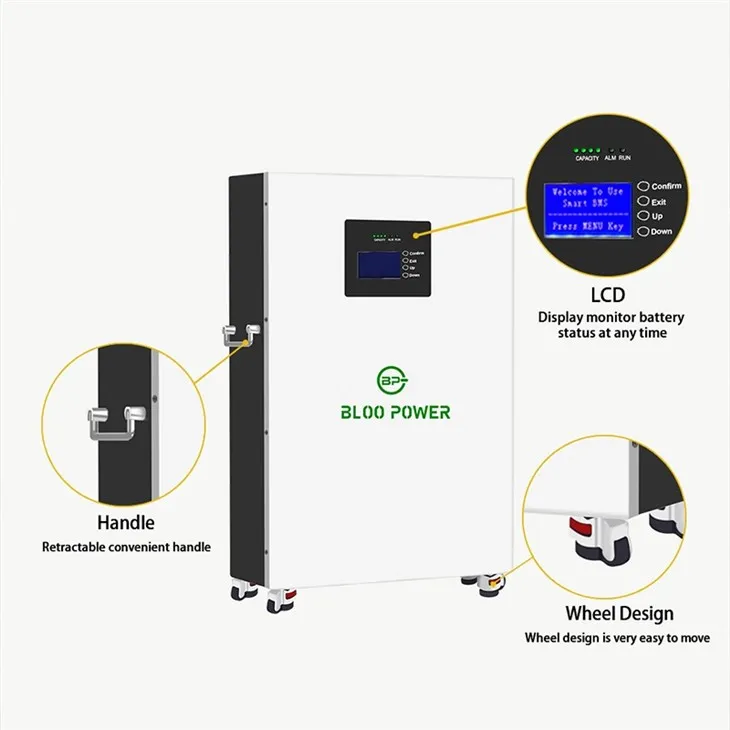

Our green energy home energy storage 20KWh rechargeable battery pack is ideal for various home appliances. If for an 80KWh small business project, the scalable lithium ion solar battery can be connected in parallel by using 4 of the same modules. The green energy home energy storage 20KWh rechargeable battery pack requires no maintenance. Built-in BMS will keep the battery from overvoltage, overheating, overcharging, overcurrent, and others. For wall mounted lithium iron phosphate battery, we adopt premium type from top brand, guaranteeing high performance and good after-sales service. What's more, this power wall lithium battery 48V 200Ah has an LCD design that allows for easy checking.
Parameter
| Model No. | BP-HP-10KWH-C | BP-HP-15KWH-C | ||
| Rated Voltage | 51.2V | 51.2V | ||
| Cell Combination Type | 16S | 16S | ||
| Rated Capacity | 200Ah | 300Ah | ||
| Battery Energy | 10KWh | 15KWh | ||
| Voltage Range | 40V-58.4V | 40V-58.4V | ||
| Cycles (80% DOD) | 8000 cycles | 8000 cycles | ||
| Depth of Discharge | 80% | 80% | ||
| Charge Current | 40A | 40A | ||
| Discharge Current | 40A | 40A | ||
| Maximum Continuous Charge Current | 160A | 160A | ||
| Maximum Continuous Discharge Current | 200A | 200A | ||
| Weight | 120kg | 165kg | ||
| Dimension | L680*W412*H231mm | L700*W420*H250mm | ||
| Battery Type | Wall-mounted / Wheel | |||
| Operation Temperature | Charge: 0℃~50℃, Discharge: -20℃~60℃ | |||
| Storage Temperature | Keep at 0℃~50℃ | |||
| Cell Tpye | Lithium ion Phosphates Battery | |||
| Maintenance | Maintenance free | |||
| Compatibility | Compatible with all off-grid/hybrid inverters and charge controllers | |||
| BMS | Intellgent battery mangement system | |||
| IP Protection | IP66 | |||
| Maximum Parallel Connection | 16 pcs | |||
Similar Products
Power Battery Generator With Lifepo4 Highlight :

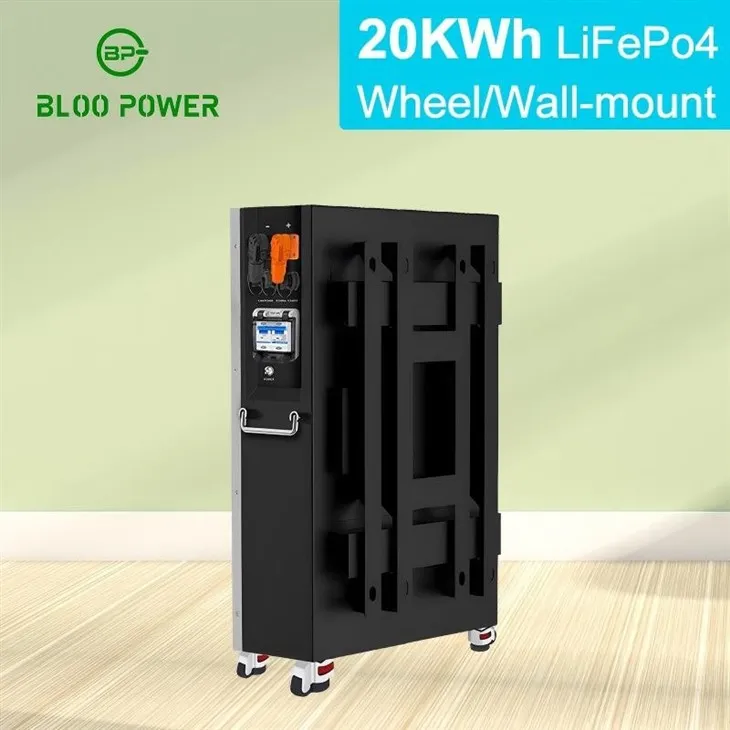

Can be installed both on the wall and the floor
Environmentally friendly devices without harmful substances are produced
Rated energy 20KWh with 16S2P combination
Battery works well with off-grid/hybrid inverters
Easy to move and use, a user-friendly battery pack
Modular design wheel lithium battery is perfect for capacity expansion
We have rack-mounted battery, wall-mounted battery, roller battery, and stackable battery for different scenarios. Supporting OEM and ODM services.
Pre-sale, in-sale and after-sale service
Pre-sale: we will help you do a highly cost-effective solutions according to your specific requirements.
In-sale: we will update the pictures and videos for customers when producing; Offer quality control reports before delivery; and assist with delivery and customs clearance.
After-sale:
For installation, we offer online technical support; If you have any questions during the installation, contact us with relevant pictures and videos in time. During usage, if has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
May be you will like
FAQ
Q: Is the cost of the battery reasonable?
A: Yes, we offer competitive pricing for our batteries by carefully considering the model and quantity to provide the best value for our customers.
Q: What is the method of delivery for the battery?
A: Typically, batteries are shipped via air or sea.
Q: Can battery deformations occur during transportation?
A: Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
Q: What measures are taken to protect the battery during transportation?
A: Yes, we provide effective protective measures during transportation to ensure the safety and reliability of batteries.
Q: What is the location of your loading port?
A: The loading port is Shenzhen/ Guangzhou for optional.
