10KWh Wall Mounted Home Solar Energy Storage Battery For Solar Battery Solution
2.Battery is scalable for larger storage system
To monitor and manage the home power battery wall for energy storage system at any time, it is equipped with a smart BMS system, and the front LCD shows many work status parameters, so users can find and address potential problems in time. This upgraded power wall battery with IP65 can be installed both indoors and outdoors because it can against water and dust.
Bloo Power battery for home energy storage power wall can store the power from solar panels or charge from off-peak periods, which will save A lot of electricity bills. The environmentally friendly device also can help you to reduce your carbon footprint in the long run.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-C |
BP-HP-7KWH-C |
BP-HP-10KWH-C |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 65 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features

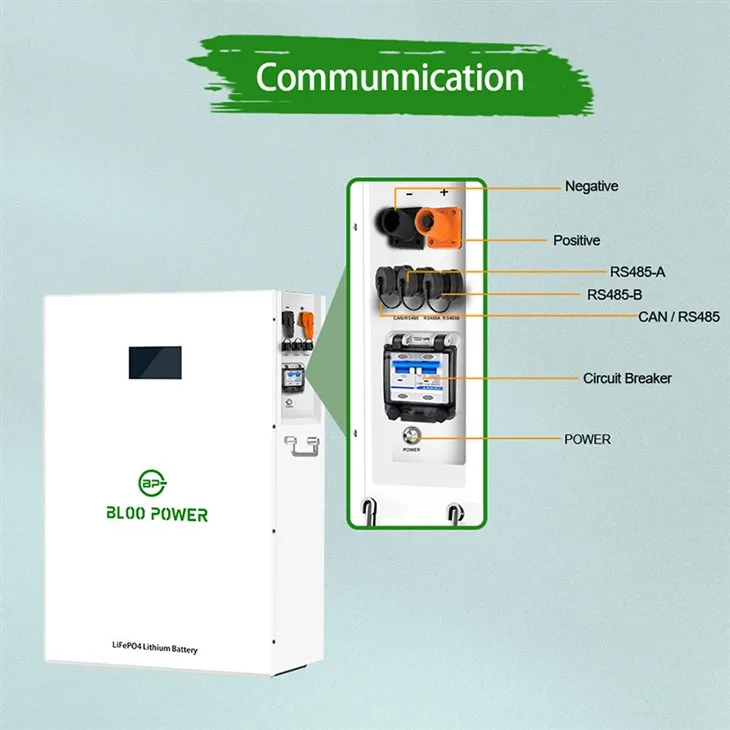

1. Features with CAN and RS485 protocols.
2. Including power cables and communication cables.
3. Built-in high-quality BMS, monitoring and management functions.
4. Along with MSDS, UN38.3, CE, FCC certificates.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：What are the reasons to choose your company?
A：Our team consists of experienced sales professionals and dedicated R&D specialists, ensuring that you receive a qualified product at a competitive price. Additionally, we pride ourselves on timely delivery and providing sincere, attentive customer service.
Q：What are the ways to maintain a battery?
A：The steps to properly maintain a battery include: avoiding deep discharging, regularly monitoring its charging status, and keeping the battery at optimal temperature and humidity levels to prevent overheating or excessive moisture.
Q：Can you tell me the different kinds of batteries used for residential energy storage?
A：Home energy storage batteries can be divided into lithium-ion batteries, lead-acid batteries, nickel-cadmium batteries, etc. The lithium-ion battery we use has become the most common type of household energy storage battery on the market because of its high energy density and low discharge speed.
