Customizable Lithium Iron Phosphate Battery Meet Different Customers

Customizable Lithium Iron Phosphate Battery Meet Different Customers

1.Wall-mounted design, suitable for walls that can bear weight

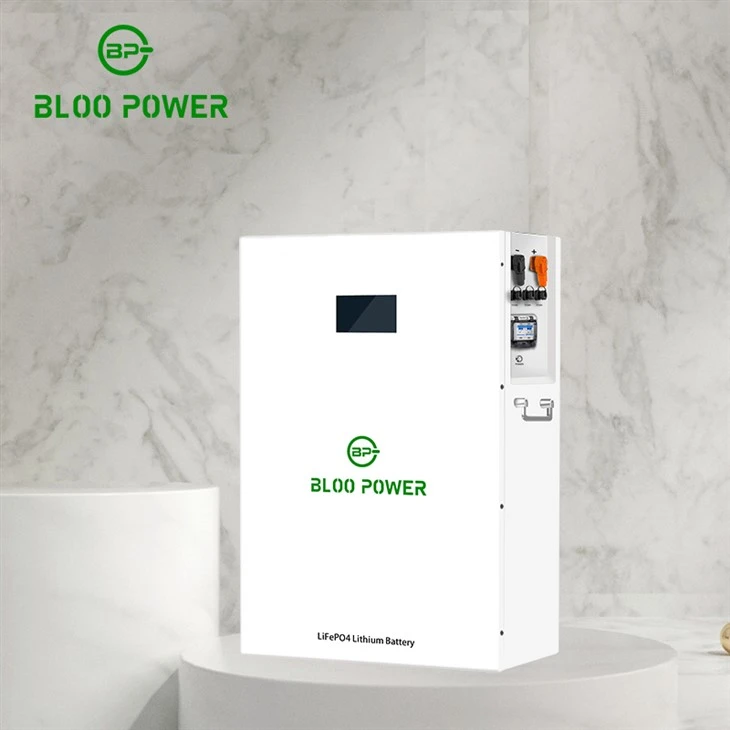

2.Beautiful appearance with LCD display
3.Inside BMS board has many protections
Send Inquiry
Add To Inquiry

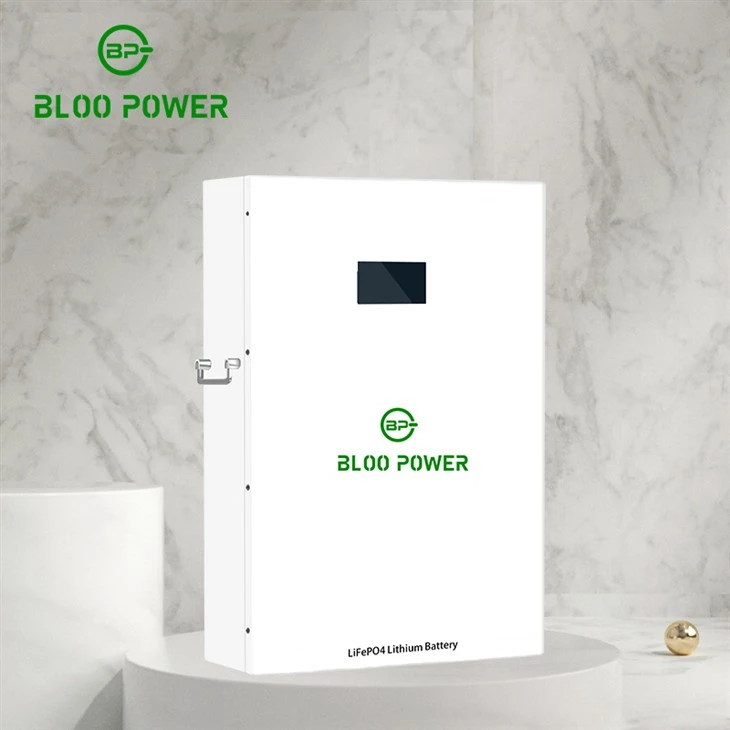

     The Customizable Lithium Iron Phosphate Battery Meet Different Customers. With IP65 grade design, this lithium ion batteries 48v 100ah solar battery can be installed not only in the house but also outside, it can be suitable for many markets in the world. The metal shell covers the inside lithium iron phosphate cell, with premium BMS and neat internal structure, the battery can be more safely used and last longer. If a 5kWh LFP battery pack is not enough for your loads, just parallel the same 5KWh battery up to 16 pieces to add different capacities.





Wall-mounted-LiFePo4-Battery-48v









 Parameter



NO

Model No.

BP-HP-5KWH-C

BP-HP-7KWH-C

BP-HP-10KWH-C

1

Rated Voltage

51.2V

51.2V

51.2V

2

Cell Combination Type

16S

16S

16S

3

Rated Capacity

100Ah

135Ah

200Ah

4

Rated Energy

5.12KWh

6.91KWh

10.24KWh
5 Voltage Range 40V~58.4V 40V~58.4V 40V~58.4V

6

Cycles(80%DOD)

6500 cycles

6500 cycles 6500 cycles

7

Depth of Discharge

80%

80% 80%

8

Charge Current

20A

20A

40A

9

Discharge Current

20A

20A

40A

10

Maximum Continuous Charge Current

80A

80A

160A

11

Maximum Continuous Discharge Current

100A

100A

200A

12

Maximum Continuous Charge/Discharge Current

5.12KW

6.19KW

10.24KW

13

Weight

60kg

80kg

120kg

14

Dimension L*W*D(mm)

L650*W384*H142mm

L650*W420*H135mm

L680*W412*H231mm

15

Battery Type

Wall-mounted

16

Operation Temperature

Charge: -10℃~55℃,Discharge: 0~55℃

17 Storage Temperature Keep at -10℃ to 55℃
18 Cell Type LiFePo4 Cell
19 Maintenance Maintenance free
20 Compatibility Compatible with most of available off-gird/hybird inverters and charge controllers
21 BMS Intelligent battery mangement system
22 IP Protection IP 65
23 Maximum Parallel/Moduler Connection 16pcs





Battery with iverter solar system


Product Features



1. A grade lithium-ion cell with great performance
2. Voltage, capacity, and appearance can be customized
3. Hot selling 48v lithium ion battery



Wall-mounted-LiFePo4-Battery-51.2v

Storage-Solution-Provider

IP65-Dustproof-And-Waterproof-Level

BMS-Can-Automatically-Adapt-To-The-Inverter



How Solar Cells Power Generation



A solar cell is a device that responds to light and converts its energy into electricity. There are many materials capable of producing the photovoltaic effect, including single-crystal silicon, polycrystalline silicon, amorphous silicon, gallium arsenide, and copper indium selenide. The principles of their generation are essentially the same, so let's use crystals as an example to describe the photovoltaic process. P-type crystalline silicon can be doped with phosphorus to produce N-type silicon, forming a P-N junction. When light strikes the surface of a solar cell, some photons are absorbed by the silicon. The energy from these photons is transferred to silicon atoms, causing electrons to migrate, becoming free electrons that gather on both sides of the P-N junction and create a potential difference. When an external circuit is connected, this voltage causes a current to flow through the circuit, generating a certain output power. This process essentially converts photon energy into electrical energy. The production process of a crystalline silicon solar cell: Silicon is one of the most abundant materials on our planet. Since scientists discovered the semiconductor properties of crystalline silicon in the 19th century, it has changed almost everything, even human thinking.







Wall-mounted-LiFePo4-Battery-Advantages

Wall-mounted-LiFePo4-Battery-Communnication

Our-Chip-Structure-Advantages



Shipping term



For battery products, the transportation is mostly by sea, and shipping time varies from 20 to 60 days depending on the region.



If you have a trusted freight forwarder, we can deliver the goods to your freight forwarder and assist with transportation and customs clearance. If you need our help, our cooperating forwarder will provide the shipping service for you. The forwarder can deliver to the port, in this situation, you need to do the customs clearance, pay the taxes, and pick up the goods by yourself; The forwarder also can deliver to your specific address, in this situation, the forwarder will help to do the customs clearance and tax payment, all you need to do is to receive goods in your place.







Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.


Residential Battery Bank system



Product qualification

Certificate



Install


Battery Customer Case



Packaging



Wall-mounted-LiFePo4-Battery-Packaging





About us



Wall-mounted-LiFePo4-Battery-About-Us



FAQ



Q: Is it possible to request samples for testing before making a purchase order?

A: Yes, sample orders are accepted, however, the customer will be responsible for paying the sample fees and shipping costs.



Q:Are the batteries safe to use?
A:Our Home Power Storage Solutions are powered by the latest lithium-ion technology and are designed with absolute safety in mind for both residential and commercial applications. There is no risk of explosion or fire.



Q:What sets your battery apart from those offered by other suppliers?
A:Our battery is known for its safety features and long lifespan, which sets it apart from those offered by other suppliers.
