High-level Anti Water IP65 Battery Pack With Comprehensive Protections

High-level Anti Water IP65 Battery Pack With Comprehensive Protections

1.Many capacity battery pack options
2.BMS system offers multi-level safeguards

Send Inquiry

Add To Inquiry

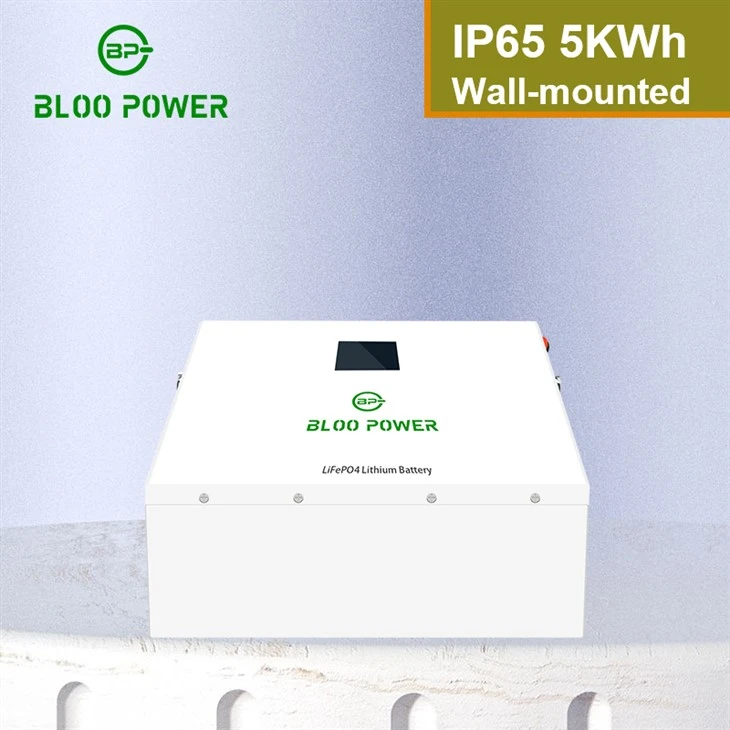

Our High-level Anti Water IP65 Battery Pack With Comprehensive Protections, 8000+ deep cycle prismatic battery cell offers a long-lasting service life, users can use the battery for about 15 years as long as it is operated in a good way. Bloopower environmentally friendly 5000Wh powerful backup for home is popular globally, it can connect with different brand inverters. If users are looking for more capacity after installation, the scalable module allows you to connect the same type of battery in parallel.

Wall-mounted-LiFePo4-Battery-48v

NO	Model No.	BP-HP-5KWH-C	BP-HP-7KWH-C	BP-HP-10KWH-C
1	Rated Voltage	51.2V	51.2V	51.2V
2	Cell Combination Type	16S	16S	16S
3	Rated Capacity	100Ah	135Ah	200Ah
4	Rated Energy	5.12KWh	6.91KWh	10.24KWh
5	Voltage Range	40V～58.4V	40V～58.4V	40V～58.4V
6	Cycles(80%DOD)	8000 cycles	8000 cycles	8000 cycles
7	Depth of Discharge	80%	80%	80%
8	Charge Current	20A	20A	40A
9	Discharge Current	20A	20A	40A
10	Maximum Continuous Charge Current	80A	80A	160A
11	Maximum Continuous Discharge Current	100A	100A	200A
12	Maximum Continuous Charge/Discharge Current	5.12KW	6.19KW	10.24KW
13	Weight	60kg	80kg	120kg
14	Dimension LWD(mm)	L650W384H142mm	L650W420H135mm	L680W412H231mm
15	Battery Type	Wall-mounted
16	Operation Temperature	Charge: -10℃~55℃,Discharge: 0~55℃
17	Storage Temperature	Keep at -10℃ to 55℃
18	Cell Type	LiFePo4 Cell
19	Maintenance	Maintenance free
20	Compatibility	Compatible with most of available off-gird/hybird inverters and charge controllers
21	BMS	Intelligent battery mangement system
22	IP Protection	IP 65
23	Maximum Parallel/Moduler Connection	16pcs

Battery with iverter solar system

1. Can connect with mainstream inverters in the market
2. Each unit offers 8000 cycles
3. We offer a 10-year warranty

Wall-mounted-LiFePo4-Battery-51.2v

Storage-Solution-Provider

IP65-Dustproof-And-Waterproof-Level

BMS-Can-Automatically-Adapt-To-The-Inverter

Energy storage systems can serve as a backup power source, providing electricity in the event of grid failure or power outage, ensuring the reliability of power supply to important facilities. High-level Anti Water IP65 Battery Pack With Comprehensive Protections

Wall-mounted-LiFePo4-Battery-Advantages

Wall-mounted-LiFePo4-Battery-Communnication

Our-Chip-Structure-Advantages

1. Raw material quality control: all raw materials will be fully inspected before production. Only those that pass the inspection can be used for the next production step.

2. During production, Each process is supervised by QC staff, who will conduct production inspections from time to time. Any problems found will be solved as soon as possible.

3. QC before shipment: all products will be subjected to aging tests, and each batch of goods needs to provide a full-process quality control report, and no defects are allowed.

Residential Battery Bank system

Certificate

Battery Customer Case

Wall-mounted-LiFePo4-Battery-Packaging

Wall-mounted-LiFePo4-Battery-About-Us

Q： Is it possible to request samples for testing before making a purchase order?

A： Yes, sample orders are accepted, however, the customer will be responsible for paying the sample fees and shipping costs.

Q：Do you perform testing on each battery before shipping it out?
A：Yes, we conduct thorough testing on every battery before shipment, including checking the voltage and internal resistance and so on.

Q：Can you describe your quality control process?
A：At our factory, we place great emphasis on quality control and have put in place a thorough process to ensure that every aspect of production, from obtaining raw materials to delivering the final product, meets the highest standards. Our ISO 9001 certification is evidence of this dedication. Before assembly, the battery cells undergo extensive examination and are carefully selected to guarantee only the best components are used. Prior to delivery, each batch undergoes aging tests to guarantee the optimal performance and longevity of the product.
