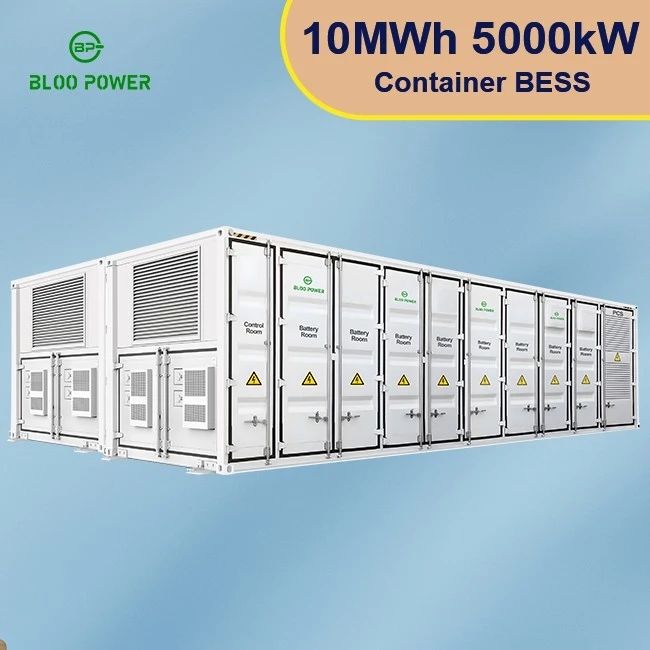

10MWh Liquid Cooled All-In-One Energy Storage Container
2、 Energy storage bank with BMS enhances the safety
The standard 10MWh liquid cooled all-in-one energy storage container is suitable for utility-scale projects requiring high safety and capacity. Each industrial and commercial energy storage container consists of battery packs, PCS, power distribution, thermal systems, and other systems. Large-scale 10MWh liquid cooled all-in-one energy storage container is a worthwhile investment, the 10 MWh battery storage cost can be fully recovered within 5 years.
Parameter
|
System Parameters |
|||
|
Rated AC Power |
250KW/500KW | 500KW/1000KW | |
| Rated AC Voltage |
400V |
||
| Rated AC Current |
360A/720A |
720A/720A*2 | |
| THD | <3%(Linear load) | ||
| PF Adjustable Range | -1(leading) ~ +1(lagging) | ||
|
Battery Cell Specification |
3.2V/120Ah; 3.2V/280Ah |
||
| Battery Cell cycle Life |
>6000 cycls@0.5C, 25℃ |
||
|
Available Rated Capacity |
500KWh/1000KWh | 500KWh/1000KWh | |
|
Type |
Modular, High efficiency three level | ||
|
Protection |
Over temperature, low temperature charging, over current, short circuit, over voltage, under voltage, DC bus protection, tec. |
||
| Connection Mode | Three phase three wire/three phase four wire | ||
| Isolation Transformer | Equipped(optional) | ||
| Working Mode | Grid-tied peak shaving/off-grid power supply guarantee | ||
| General Parameters | |||
| Dimension(W*D*H) | 6058*2438*2896mm | 12196*2438*2896mm | |
| Weight | 18 tons | 35 tons | |
| IP Grade | IP55 | ||
| Operating Temperature | -25℃ ~ 60℃(Derating>45℃) | ||
| Relative Humidity | 0 ~ 95%(non-condensing) | ||
| Altitude | 3000m(>3000m Derating) | ||
| Fire Extinguishing System | FM200 pipe fire extinguishing system | ||
| Cooling System | Air cooling / Liquid cooling | ||
| Communication Interface/Protocol | RS485, Ethernet/Modbus RTU, Modbus TCP | ||
Similar Products
Power Battery Generator With Lifepo4 Highlight :
Perfect for peak shaving to save money
LFP battery has a 10-year long-term warranty
All will be set before delivery, shorten the installation time
5000KW power with 10MWh capacity energy storage
Integrated with PCS, EMS, modular batteries, thermal systems, etc.
Communication interface: RS485, Ethernet/Modbus TCP, Modbus RTU
For commercial BESS, we provide the scalable modules, so it's flexible to expand the capacity by parallel connection. Internal BMS monitors and manages the battery in real-time. The green power from solar has no harmful substances, not only saving electricity bills but also reducing your carbon footprint.
Company Advantage
BLOO POWER is the source manufacturer located in Shenzhen. We have 16 years of rich experience and are quite mature in production, technology and cost control.
1. Advanced manufacturing facilities: BLOO POWER has invested in advanced manufacturing facilities in order to utilizing cutting-edge technology and processes to produce high-quality lithium battery components.
2. Innovative technology: BLOO POWER is using the latest advancements in battery technology to enhance the performance, safety, and efficiency of their products.
3. High-quality battery components: BLOO POWER focused on producing high-quality lithium battery cells, modules, and packs. We cooperated with top suppliers. Like the CATL/BYD/EVE/GOTION for cell, and the PACE for BMS.
4. Complete product series: including the home energy storage systems, C&I energy storage systems, 12V/24V lithium-ion battery packs, portable power stations, power banks, lead-acid batteries, solar street lights and other related solar products.
5. Technician: our company is equipped with 10 technicians who can support customers with all kinds of questions, and make the better solution for customized projects.
6. Production capacity: with a 15000㎡ production base, we produce 200MWh per month, and 2GWh per year, meeting different sizes of projects.
7. We can keep abreast of market changes according to the feedback of our customers, So far, We have served more than 80,000 customers worldwide.
May be you will like
FAQ
Q: What is the method of delivery for the battery?
A: Typically, batteries are shipped via air or sea.
Q: Can battery deformations occur during transportation?
A: Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
Q: What measures are taken to protect the battery during transportation?
A: For a detailed price list, please provide us with your preference products and quantity ,we'll get back to you promptly with the requested information.
Q: What is the cost estimate for the battery?
A: Yes, we provide effective protective measures during transportation to ensure the safety and reliability of batteries.
Q: What is the location of your loading port?
A: The loading port is Shenzhen/ Guangzhou for optional.
