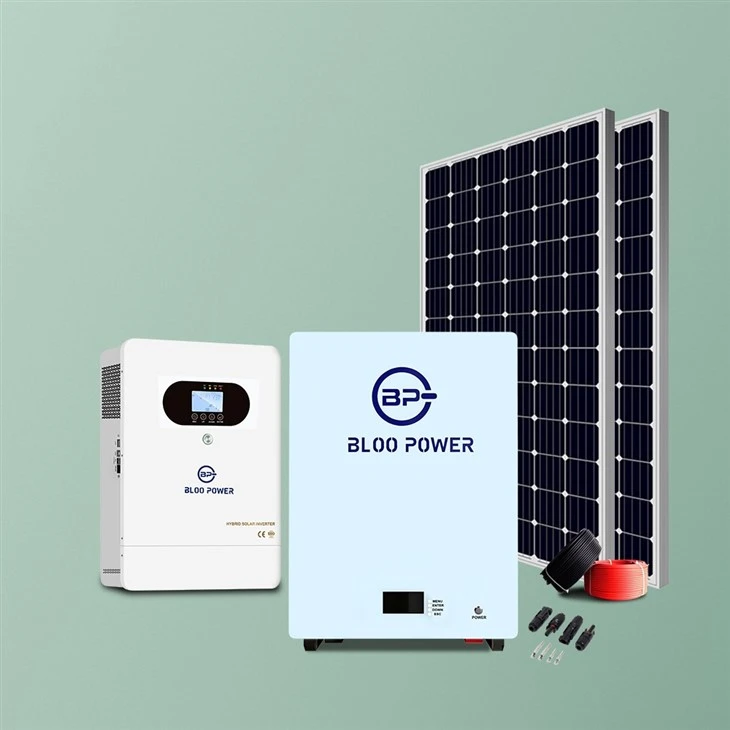

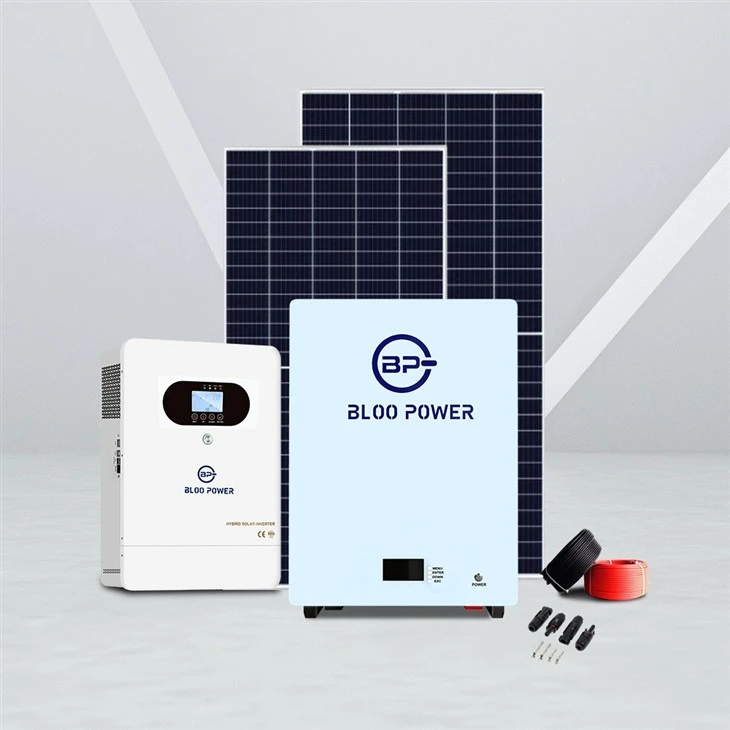

Cutting-edge Modular Lithium Solar Battery System Solar Panel And Hybrid Inverter
2.N-type panel, better than P-type
Roof mounted home solar energy storage battery system makes full use of the space on the roof, we take N-type panels with a high 21.66% conversion efficiency, and can charge 10KWh lifepo4 battery wall mount type in a fast way.
Expect solar panel charging, we can also charge from the grid by using the premium hybrid inverter. Once the mode is set on the inverter, the lithium ion battery pack for solar power system can be very flexible to alternate charging.
Parameter
|
NO |
Model No. |
BP-SS-5KWH |
BP-SS-10KWH |
BP-HR-15KWH |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
LiFePo4 Battery |
1 pcs |
1 pcs | 1 pcs |
|
3 |
Rated Capacity |
100Ah |
200Ah |
300Ah |
|
4 |
Rated Energy |
5.12KWh |
10.24KWh |
15.36KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
10 |
Inverter |
5KW |
10KW |
15KW |
|
11 |
550W Solar Panel |
10 pcs |
20 pcs |
30 pcs |
|
12 |
Solar Cable |
2 pcs | 2 pcs | 2 pcs |
|
13 |
MC4 |
2 pcs | 2 pcs | 2 pcs |
|
15 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 16 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 17 | Cell Type | LiFePo4 Lithium ion Phosphates Battery | ||
| 18 | Maintenance | Maintenance free | ||
| 19 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 20 | BMS | Intelligent battery mangement system | ||
| 21 | Maximum Parallel/Moduler Connection | 16pcs | ||
What Makes a Cutting-edge Modular Lithium Solar Battery System Solar Panel And Hybrid Inverter Truly "Cutting-edge" in 2025?
In an era of rising electricity costs and grid instability, the Cutting-edge Modular Lithium Solar Battery System Solar Panel And Hybrid Inverter has emerged as the most advanced, scalable, and efficient residential and commercial energy storage solution available in 2025. This integrated system combines high-efficiency monocrystalline solar panels, LFP (LiFePO4) modular lithium batteries, and intelligent hybrid inverters into a single plug-and-play platform that delivers unmatched performance, safety, and expandability.
The true innovation lies in full modularity and smart energy orchestration. Unlike traditional fixed-size systems, a Cutting-edge Modular Lithium Solar Battery System Solar Panel And Hybrid Inverter allows users to start with as little as 5 kWh and scale up to 100+ kWh by simply adding battery modules - no rewiring or new inverter required.
Product Features
1. With a high 21.66% conversion efficiency.
2. Many inverters, solar panels and batteries to choose.
3. Communication interfaces: RS485, CAN, RS232.
Wall Mounted LiFePo4 Battery
Easy installation and maintenance Local and remote management,standard rack&module design, front maintenance.High density LFP high-capacity Li-Ion battery. Self-developed 3-level BMS, complex protection, safe and reliable.
Long cycle life,6500 cycles.
Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg.
Hybrid Off Grid Solar Inverter
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A Max.
10pcs parallel DC couple and AC couple to retrofit existing solar system
Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc Support full lifecycle data storage to ensure data security and reliability
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional Rated Voltage:600VDC(UL)/1000VDC(TUV) Rated Current: 55A,70A Colors: Black For STD, Red Optional. Lifetime:≤25 Years
Warranty Policy
For Energy storage batteries, we offer 10 years warranty to give customers peace of mind. Within 10 years, maintained for free. During use, if there has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
We can offer you customized complete solar system solutions, providing the best supporting services and after-sales warranty
safety certifications
customer Case
Compatible With Inverters
Packaging
About us
FAQ
Q：Is it possible to have the batteries manufactured on an OEM basis?
A： Of course.
Q：Do you manufacture lithium batteries?
A：Yes, our factory specializes in the production of lithium batteries and has been doing for more than 10 years.
Q：Is there a minimum order quantity requirement?
A：No.order one and we can also sell.
