Lithium Iron Phosphate Battery Packs With BMS Board
2、BMS control safety, no anomalies

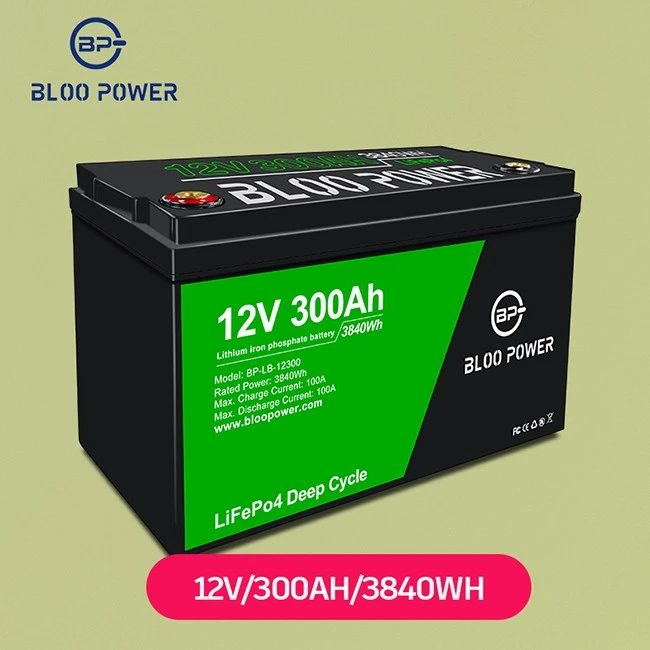

The 300Ah 12V customized lifepo4 energy storage battery supports four-parallel and four-series connections, which can provide 61.44KWh energy. Integrated with an independent battery management system (BMS), each replaced lead-acid battery always performs well during the working period. For car energy storage battery, has high density, small size with a compact shape that can store more energy and more cycles. Compared to the lead-acid battery, the LPF one lasts longer, and more lighter. Plug-and-play design and no maintenance is required.
Parameter
| NO | ITEM | SPEC | |||||
| 1 | Rated Capacity | 50AH | 100AH | 150AH | 200AH | 100AH | 200AH |
| 2 | Rated Voltage | DC-12.8V | DC-25.6V | ||||
| 3 | Rated Energy | 640wh | 1280wh | 1920wh | 2560wh | 2560wh | 5120wh |
| 4 | Operating Voltage | 10V～14.6V | 20V～29.2V | ||||
| 5 | Max. Charge Current | 50A | 100A | 100A | 100A | 100A | 100A |
| 6 | Max. Discharge Current | 70A | 100A | 100A | 100A | 100A | 100A |
| 7 | Peak Current | 140A | 200A | 320A | 320A | 300A | 320A |
| 8 | Battery Type | LiFePO4 Battery | |||||
| 9 | Discharge Temp | -20℃~60℃ | |||||
| 10 | Charge Temp | 0℃~50℃ | |||||
| 11 | Dimension |
L198mm* |
L328mm* *215mm |
L405mm* W180mm *215mm |
L520mm* |
L520mm* W238mm *225mm |
L520mm* |
| 12 | Weight | 6.5kg | 13.6kg | 18.5kg | 23.8kg | 19kg | 39kg |
| 13 | Internal Resistance | ≤30mΩ | |||||
| 14 | Cycle Life | ≥3000 | |||||
12v Lead Acid Replacement Battery Structure
1. Each module is packed with 6 prismatic cells
2. Larger capacity by connecting the same pack in parallel or series
3. ABS durable material against collision
Solar panels
Solar panels are the core and most valuable component of a solar power generation system. Their function is to convert solar energy into electricity, either for storage in batteries or to power a load. The quality and cost of solar panels directly determine the quality and cost of the entire system.
Distributor Policy
SUPPORT: we can offer online technical assistance and offline technical service if necessary.
EXCLUSIVE: we can design exclusive products' appearance for distributors which other customers cannot use.
MOQ: 20-foot container for each order, which can include a few kinds of products.
PRICING: Distributors can get lower prices than any other customers in the same country.
MARKETING: we can design marketing posters or brochure for distributor anytime for free.
12v Lead Acid Replacement Certificate
12v Lead Acid ReplacementPakaging
Compatible Inverters
FAQ
Q: How can I obtain a sample to evaluate the quality?
A: The connection of an energy storage battery to the grid through an inverter means that it won't affect the grid in any way.
Q: Is there a battery testing service available?
A: You can reach us through online channels or by adding our WhatsApp/WeChat to buy.
Q: Do you offer samples and is it free of charge?
A: We need to collect the sample charge.
