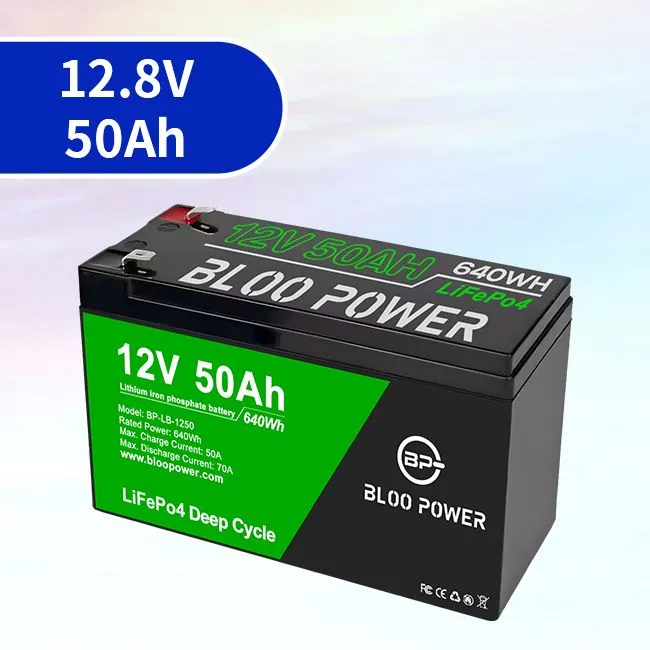

Built-in 50Ah BMS Lithium Ion Electric Bicycle Battery Pack Long-lasting Lifespan
2、Smart battery management system to monitor and balance battery

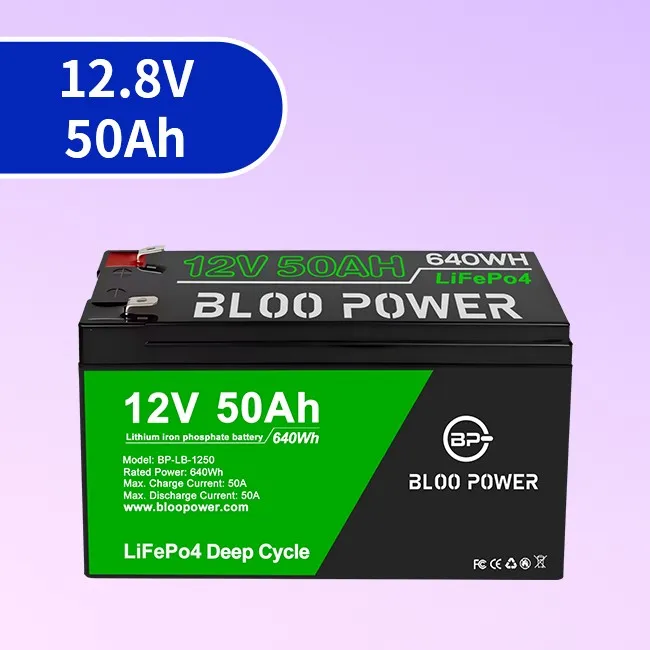

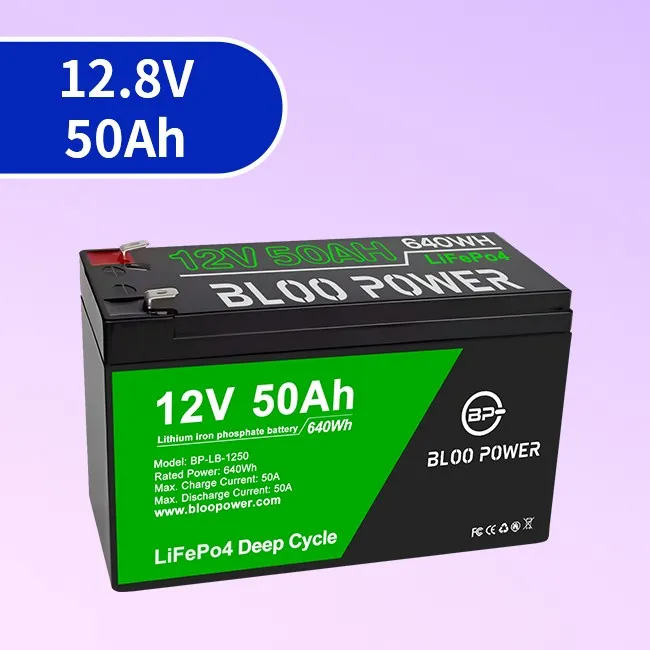

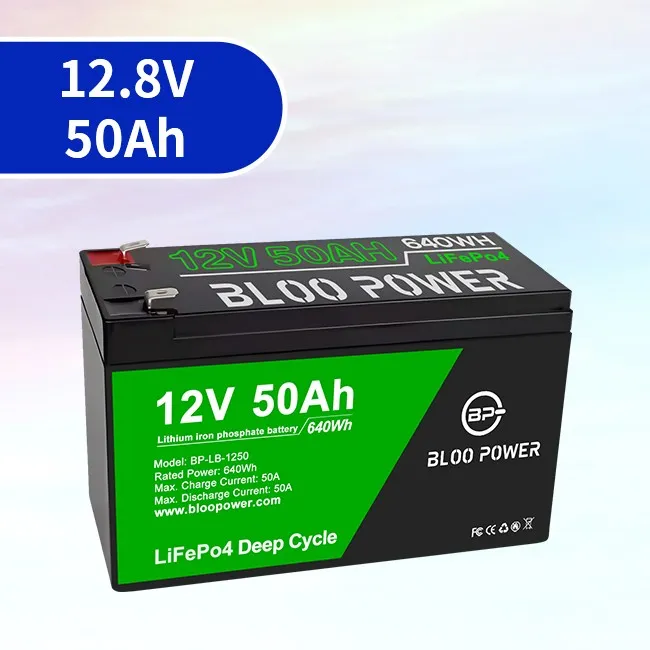

Battery rechargeable lithium ion 12v battery pack adopts top brand cells, four pieces of 3.2 voltage 50Ah prismatic cells in series. This lithium-ion battery has a long cycle life and safety advantages, the solid ABS case keeps the battery from external squeeze and collision, and the independent BMS(battery management system) enhances the security. And Built-in 50Ah BMS Lithium Ion Electric Bicycle Battery Pack Long-lasting Lifespan.
With CE, FCC, MSDS, and UN38.3 certifications, we can guarantee our quality for our clients globally. With professional team, we will support and expand your business at our best.
Parameter
| NO | ITEM | SPEC | |||
| 1 | Rated Capacity | 10AH | 20AH | 30AH | 50AH |
| 2 | Rated Voltage | DC-12.8V | |||
| 3 | Rated Energy | 128wh | 256wh | 384wh | 640wh |
| 4 | Operating Voltage | 10V～14.6V | |||
| 5 | Max. Charge Current | 8.6A | 10A | 20A | 25A |
| 6 | Max. Discharge Current | 10A | 20A | 25A | 50A |
| 8 | Cell Type | LiFePO4 Lithium ion Phosphates Battery | |||
| 9 | Discharge Temp | -20℃~65℃ | |||
| 10 | Charge Temp | 0℃~45℃ | |||
| 11 | Dimension |
L150mm*W65mm*H94mm |
L181mm*W170mm*H77mm |
L200mm*W180mm*H112mm |
L227.8mm*W137.4mm*H211.6mm |
| 12 | Weight | 1.05kg | 1.8kg | 3.5kg | 5kg |
| 13 | Internal Resistance | ≤30mΩ | |||
| 14 | BMS | Intelligent battery mangement system | |||
12v Lead Acid Replacement Battery Structure
1. Adopt high-density prismatic LFP cells.
2. Scalable module: max 4pcs in parallel connection.
3. Application: RV, finishing boats, UPS backups, solarlights, electric sprayer, etc.
The Application of Lead-to-Lithium Technology in Electric Vehicles
The application of lead-to-lithium technology in electric vehicles cannot be ignored. Compared to traditional lead-acid batteries, lithium batteries offer higher energy density and a longer lifespan, providing longer driving range and more stable performance. This technology has significantly improved the power and range of electric vehicles, making them a promising alternative to traditional fuel vehicles. Furthermore, lithium batteries offer faster charging speeds and higher charge-discharge efficiencies, improving the efficiency and convenience of electric vehicles, further driving the development of the electric vehicle market.
Customization Policy
OEM & ODM service to satisfy customer's requirements. For OEM service, all our products can do it, Also, our marketing team can design the logo and online posters for free. For ODM service, We can design exclusive products' appearance for you which other customers cannot use or we can manufacture according to your specific technical requirements.
12v Lead Acid Replacement Certificate
12v Lead Acid ReplacementPakaging
Compatible Inverters
FAQ
Q: What factors contribute to the extended lifespan of your battery?
A: The stable LiFePO4 structure used in our batteries adds to their longevity.
Q: Do you perform testing on each battery before shipping it out?
A: Yes, we conduct thorough testing on every battery before shipment, including checking the voltage and internal resistance and so on.
Q: What sets your battery apart from those offered by other suppliers?
A: Our battery is known for its safety features and long lifespan, which sets it apart from those offered by other suppliers.
