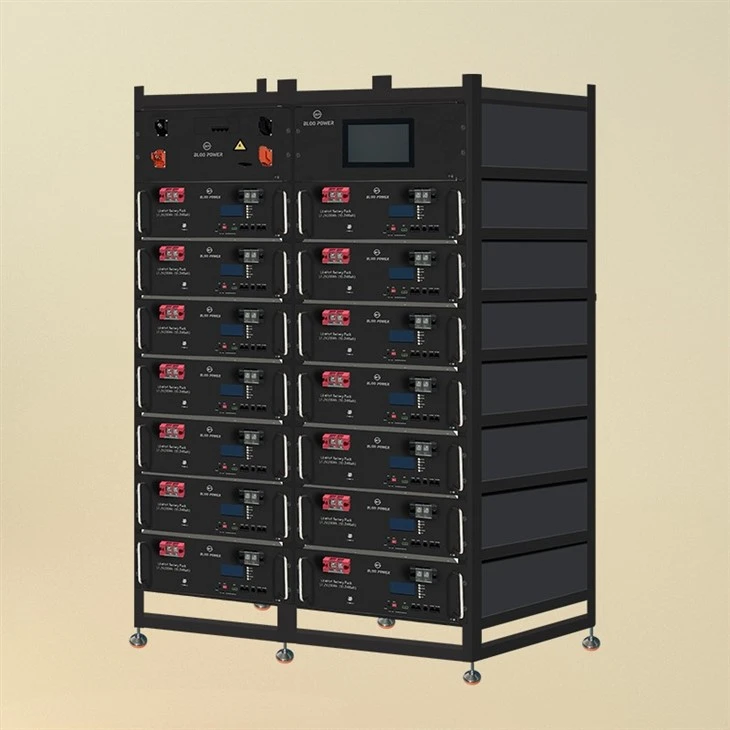

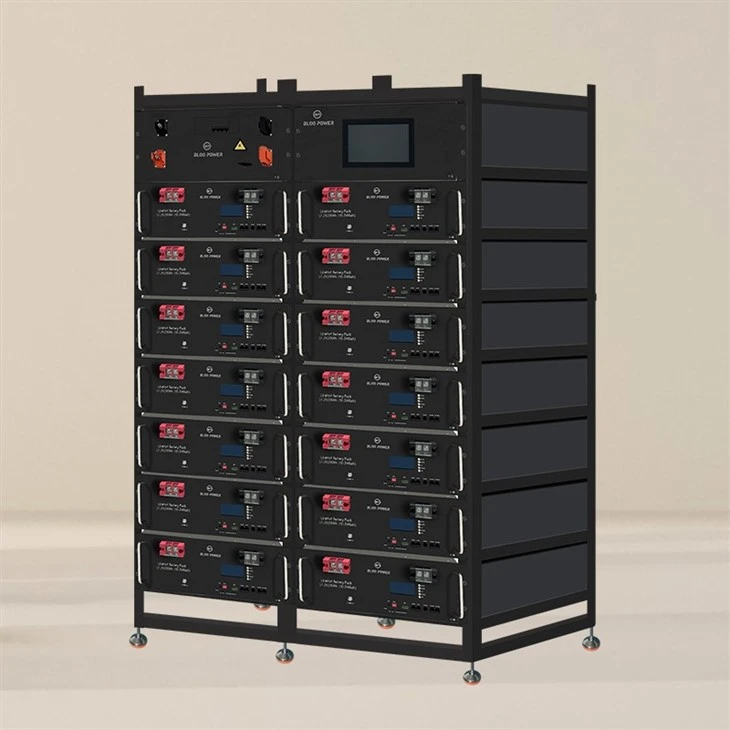

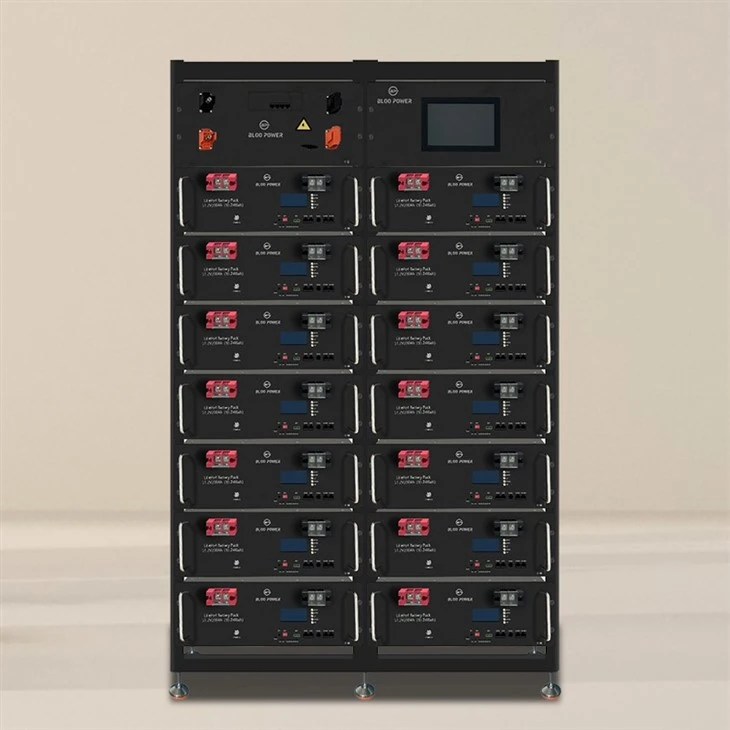

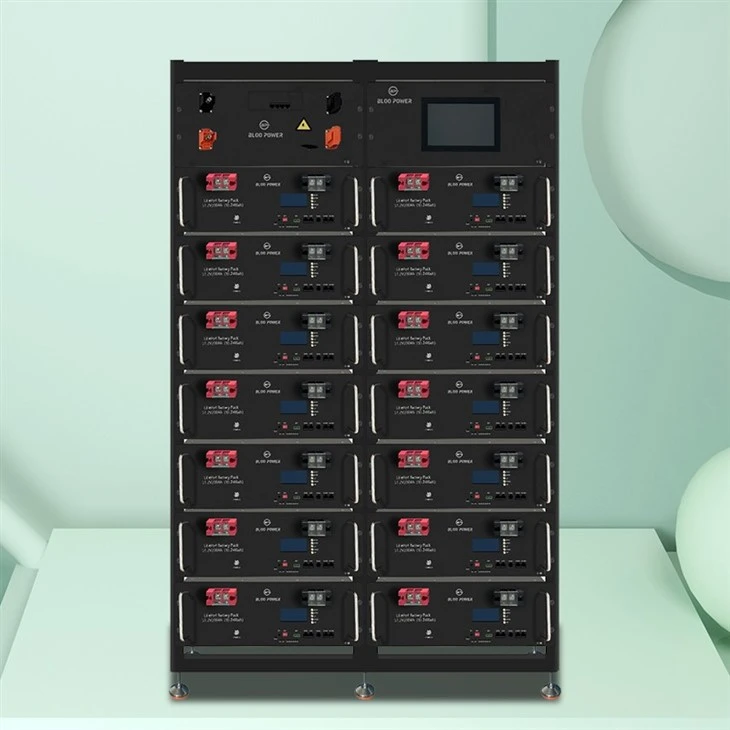

LFP Solar Commercial Solar Battery Installations Packs 200KWh RS485
2. Rack type has 4U and 3U options
The LFP Solar Commercial Solar Battery Installations Packs 200KWh RS485. This HV commercial and industrial battery storage is a type of environmental protection backup. It adopts safe and pollution-free lithium-ion cells, and an advanced battery management system to manage the battery effectively, which provides higher performance than those traditional batteries.

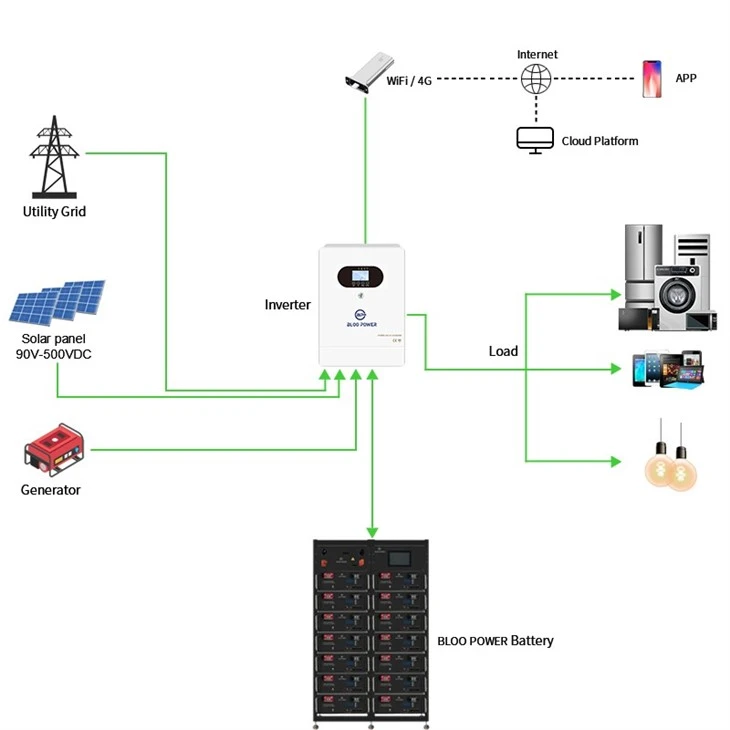

There are several ways to charge industrial solar battery storage 200KWh, such as solar panels, grid, and generators if the inverter has this function. It requires no maintenance after set up, ultra-friendly for users.
Parameter
|
NO |
Model No. |
BP-HP-50KWH |
BP-HP-100KWH | BP-HP-150KWH | BP-HP-200KWH | |||
|
1 |
Rated Voltage |
256V |
358.4V | 512V | 716.8V | |||
|
3 |
Rated Capacity |
200Ah |
280Ah | 300Ah | 280Ah | |||
|
4 |
Rated Energy |
51.2KWh |
100.3KWh | 153.6KWh | 200.7KWh | |||
| 5 | Voltage Range | 200V～292V | 280V～408.8V | 400V～574V | 627.2V～817.6V | |||
|
6 |
Cycles(80% DOD) |
6500 cycles |
6500 cycles | 6500 cycles | 6500 cycles | |||
|
7 |
Depth of Discharge |
80% |
80% | 80% | 80% | |||
|
8 |
Charge Current |
40A |
40A | 40A | 40A | |||
|
9 |
Discharge Current |
40A | 40A | 40A | 40A | |||
|
10 |
Maximum Continuous Charge Current |
160A |
160A | 160A | 160A | |||
|
11 |
Maximum Continuous Discharge Current |
200A |
200A | 200A | 200A | |||
|
12 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||||||
| 13 | Display | LCD | ||||||
| 14 | Cell Type | LiFePo4 Lithium Ion Phosphate Battery | ||||||
| 15 | Communication | RS485/CAN/RS232 | ||||||
| 16 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||||||
| 17 | BMS | Intelligent battery mangement system | ||||||
Product Features
1. 14.3KWh each device, very easy to install.
2. High voltage controller management of the whole system.
3. RS485, RS232 and CAN communications.
4. LCD design shows real-time battery data
Security and Encryption
To protect system security and user privacy, we have implemented a series of security measures, including identity authentication, access control, data encryption, and firewalls. By strictly protecting sensitive data and effectively preventing potential threats, we ensure the safe operation of the system in various environments.
Customization Policy
OEM & ODM service to satisfy customer's requirements. For OEM service, all our products can do it, Also, our marketing team can design the logo and online posters for free. For ODM service, We can design exclusive products' appearance for you which other customers cannot use or we can manufacture according to your specific technical requirements.
It's more lightweight and compact than wall-mounted, and we support doing 4U or 3U design for different heights. It can be racked, installed in a cabinet, or just stacked up directly according to your requirement
Product qualification
Compatible Inverters
Packaging
About us
FAQ
Q：Are energy storage batteries recyclable?
A： Yes,Energy storage batteries are capable of undergoing repeated charging and discharging cycles, as long as the minimum level of charge is maintained.
Q：Does the use of energy storage batteries affect the grid?
A：The connection of an energy storage battery to the grid through an inverter means that it won't affect the grid in any way.
Q：If I only use electricity at night, can I use the electricity generated during the day at night?
A：You can store the electricity generated during the day in the battery for use at any time. No problem.
