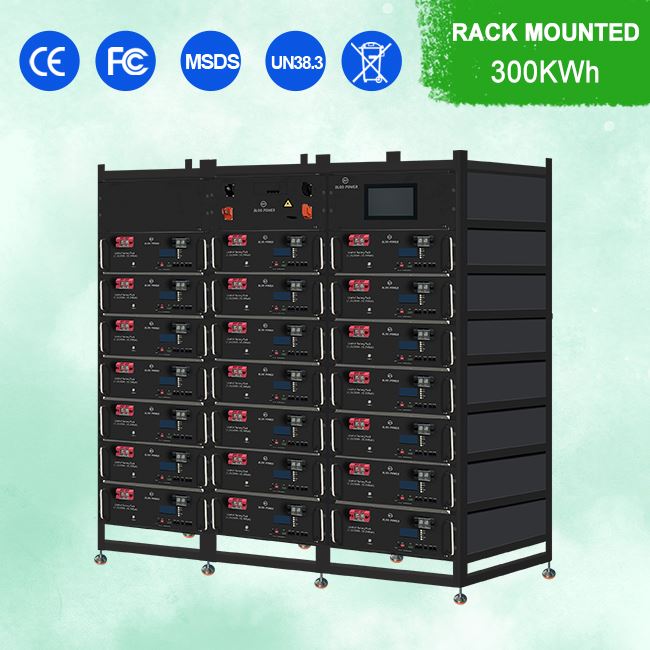

Batteries Solaire Energy Storage Compact With Growatt Deye Solis Inverters

Batteries Solaire Energy Storage Compact With Growatt Deye Solis Inverters

1. 21 14.3 kWh LFP battery packs connected in series
2. Lower your electricity bills
Send Inquiry
Add To Inquiry



      A wide range of capacity 10-300kwh battery residential energy storage system options for different projects. Working with the HV inverter, the energy storage battery 300kWh will store the power from solar panels or grids at normal times, and offer electricity when in emergencies. It's a kind of higher usable energy ratio, less self-consumption device that can last for 15 years lifespan.



      It requires no maintenance, multiple protection design will keep the battery pack in good condition all the time. We offer customizable services from voltage, current, color, capacity, package, brand of BMS and prismatic cell.



Five devices with HV controller











 Parameter



NO

Model No.

BP-HP-50KWH

BP-HP-100KWH BP-HP-150KWH BP-HP-200KWH

1

Rated Voltage

256V

358.4V 512V 716.8V

3

Rated Capacity

200Ah

280Ah 300Ah 280Ah

4

Rated Energy

51.2KWh

100.3KWh 153.6KWh 200.7KWh
5 Voltage Range 200V~292V 280V~408.8V 400V~574V 627.2V~817.6V

6

Cycles(80% DOD)

6500 cycles

6500 cycles 6500 cycles 6500 cycles

7

Depth of Discharge

80%

80% 80% 80%

8

Charge Current

40A

40A 40A 40A

9

Discharge Current

40A 40A 40A 40A

10

Maximum Continuous Charge Current

160A

160A 160A 160A

11

Maximum Continuous Discharge Current

200A

200A 200A 200A

12

Operation Temperature

Charge: 0℃~55℃,Discharge: -10~55℃

13 Display LCD
14 Cell Type LiFePo4 Lithium Ion Phosphate Battery
15 Communication RS485/CAN/RS232
16 Compatibility Compatible with most of available off-gird/hybird inverters and charge controllers
17 BMS Intelligent battery mangement system





Industrial Energy System





Product Features



1. Deep cycle: over 6000 times.
2. Design life can reach up to 15 years.
3. Stable the power, and no pollution.

4. Various protocols: CAN bus, RS232, and RS485.



Built-in high performance BMS

Safe lithium-ion phosphate battery

Equipped with an intelligent BMS system

User-friendly and environmentally friendly

Charged through solar panels or grid





Superior Performance of Lithium-Ion Batteries



① High Energy Density: A lithium-ion battery with the same capacity weighs only about half the weight of a nickel-metal hydride or nickel-cadmium battery. A lithium-ion battery with the same capacity is 40-50% smaller than a nickel-cadmium battery and 20-30% smaller than a nickel-metal hydride battery.



② High Voltage: The voltage of a single lithium-ion battery is 3.6V, equivalent to the voltage of three nickel-cadmium or nickel-metal hydride batteries connected in series.



③ Environmentally Friendly: Lithium-ion batteries contain no pollutants that could pollute the environment, such as cadmium and lead.



④ High Output Capacity: Lithium-ion batteries are capable of high-rate continuous discharge.



⑤ Long Lifespan: Under normal operating conditions, a lithium-ion battery can achieve ≥500 charge/discharge cycles.



⑥ No Memory Effect: Lithium-ion batteries do not suffer from the so-called memory effect found in nickel-cadmium batteries. Therefore, lithium-ion batteries do not require discharge before charging.



⑦ Fast Charging: Lithium-ion batteries can typically be fast-charged with a current of ≥0.5C, shortening the charging process to 1-2 hours.



⑧ High cost: Compared with other secondary batteries, lithium-ion batteries are more expensive.







With a 51.2v 200Ah rating

Five devices with HV controller




Pre-sale, in-sale and after-sale service



Pre-sale: we will help you do a highly cost-effective solutions according to your specific requirements.



In-sale: we will update the pictures and videos for customers when producing; Offer quality control reports before delivery; and assist with delivery and customs clearance.



After-sale:
For installation, we offer online technical support; If you have any questions during the installation, contact us with relevant pictures and videos in time. During usage, if has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.







It's more lightweight and compact than wall-mounted, and we support doing 4U or 3U design for different heights. It can be racked, installed in a cabinet, or just stacked up directly according to your requirement


Residential Battery Bank system

Product qualification

Offer CE, FCC, UN38.3, MSDS certs



Compatible Inverters


Long lifespan, no worry about maintenance





Packaging



Each device built-in an independent BMS





About us

RS485 and CAN connections

Powering up green energy



commercial solar battery storage


FAQ



Q:How long does it take to fully charge the battery?
A: The charging time of the battery will vary based on the total power of the solar panles and the weather.



Q:Can you describe your quality control process?
A:At our factory, we place great emphasis on quality control and have put in place a thorough process to ensure that every aspect of production, from obtaining raw materials to delivering the final product, meets the highest standards. Our ISO 9001 certification is evidence of this dedication. Before assembly, the battery cells undergo extensive examination and are carefully selected to guarantee only the best components are used. Prior to delivery, each batch undergoes aging tests to guarantee the optimal performance and longevity of the product.



Q:Are the batteries safe to use?

A:Our Home Power Storage Solutions are powered by the latest lithium-ion technology and are designed with absolute safety in mind for both residential and commercial applications. There is no risk of explosion or fire.
