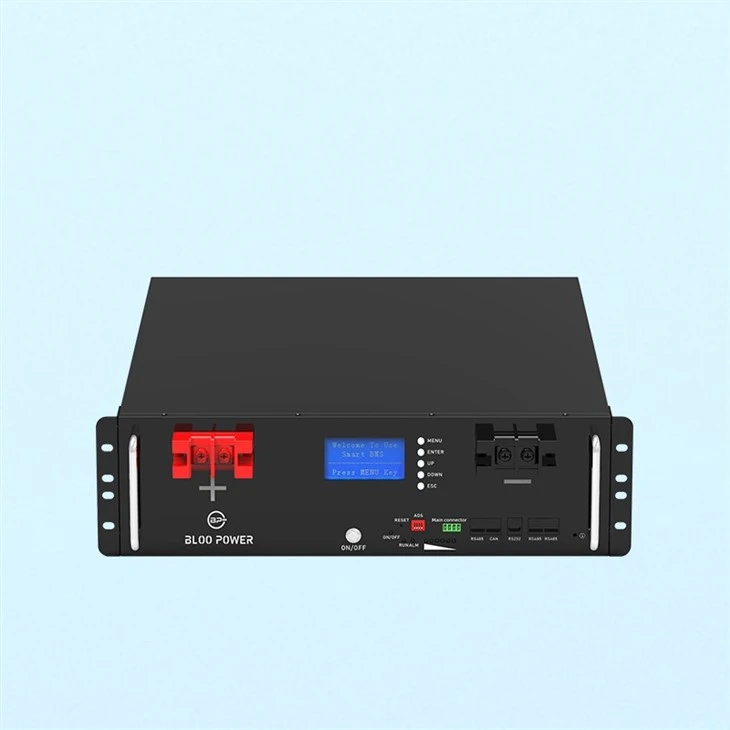

Rack Mounted 5kwh Solar Energy Storage Battery
2.We have a variety of capacity 5kwh/7kwh/10kwh/15kwh
3.This battery built-in smart BMS could protect over load,over charge,over discharge and over current
The 48v 100ah server rack lifepo4 battery uses advanced technology and high-quality new A grade lithium iron phosphate(lifepo4) cells and smart BMS. The 48v rack mount lifepo4 battery has a 10-year lifespan, over 6,500 cycles life, and is maintenance-free. We also provide ten years of after-sales service, technical support, and free replacement of batteries and accessories. And Rack Mounted 5kwh Solar Energy Storage Battery.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-3U |
BP-HP-7KWH-3U |
BP-HP-10KWH-3U |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L550*W442*H131mm |
L570*W442*H131mm |
L600*W442*H131mm |
|
15 |
Battery Type |
Rack-mounted |
||
|
16 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. BlooPower server rack lithium battery provide 10 years after-sales service
2. All of products obtained the CE/FCC/UN38.3/RoHS certificate.has been exported to US,Germany,Japan and Italy etc.

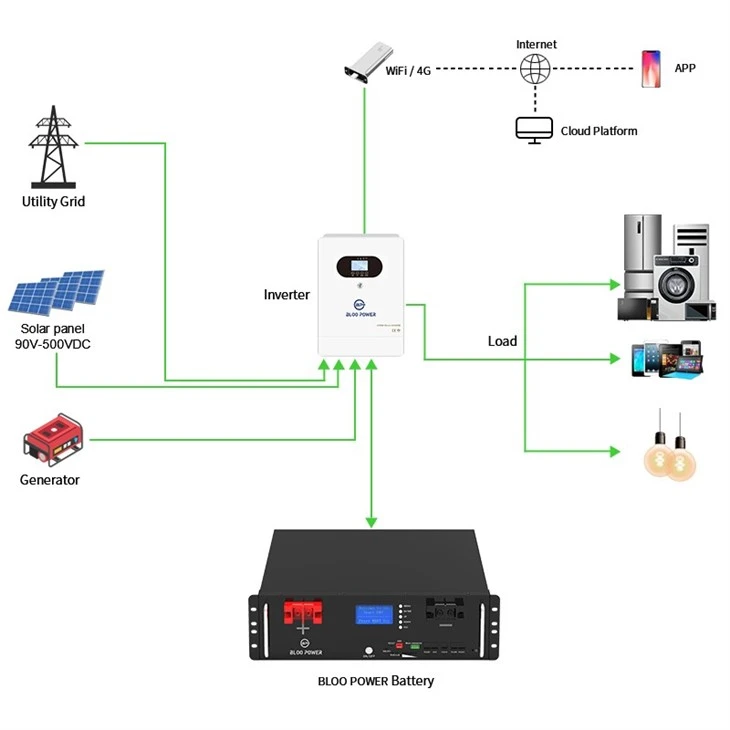

3. Compatible with most of available Off-gird/Hybrid Inverters
Maximum Continuous Charge/Discharge (Rate)
The maximum continuous charge/discharge rate determines the battery's performance over extended periods of time. For example, a battery that supports a 3C continuous discharge rate can release a large amount of energy in a short period of time.
Payment Term
We can only support Telegraphic Transfer or online website pay. after all the product questions are confirmed. For the sample order, 100% payment before our sample making. For the big order, a 30% deposit payment is needed first, after receiving the 30% payment, we will arrange to start the production in time as promised; when the order is completed, after receiving the 70% balance payment we will arrange the delivery, and will offer the logistics information, update it in time.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Are the batteries safe to use?
A：Our Home Power Storage Solutions are powered by the latest lithium-ion technology and are designed with absolute safety in mind for both residential and commercial applications. There is no risk of explosion or fire.
Q：How does your battery ensure greater safety compared to others?
A：Our batteries are equipped with an advanced BMS system that monitors temperature, voltage, and current, providing protection against over-voltage, over-current, over-temperature, short-circuits, and reverse polarity.
Q：What are the ways to maintain a battery?
A：The steps to properly maintain a battery include: avoiding deep discharging, regularly monitoring its charging status, and keeping the battery at optimal temperature and humidity levels to prevent overheating or excessive moisture.
