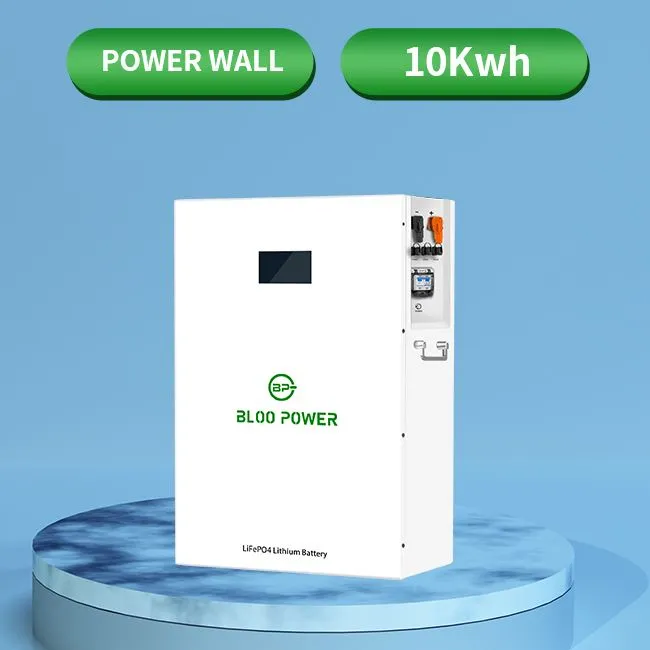

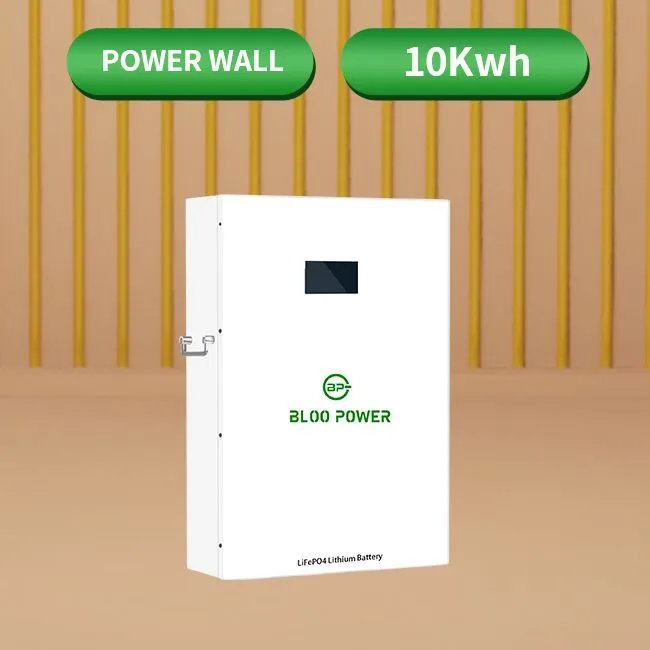

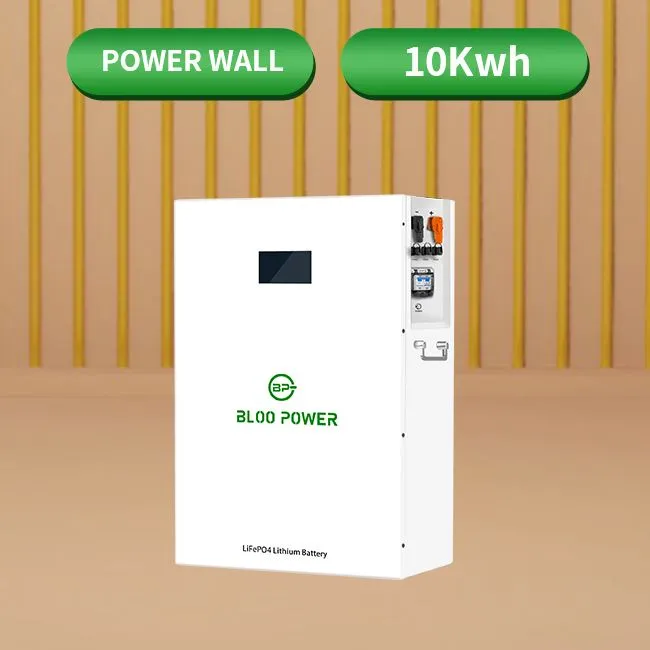

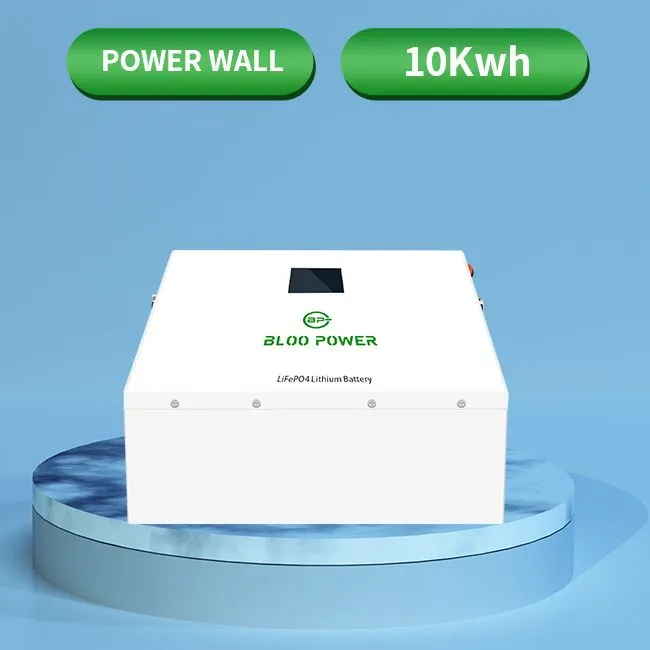

Premium Prismatic Solar Cell Wall Mounted Lithium Battery For Safe Reliable And Efficient
2.Perfect match different brands of inverter

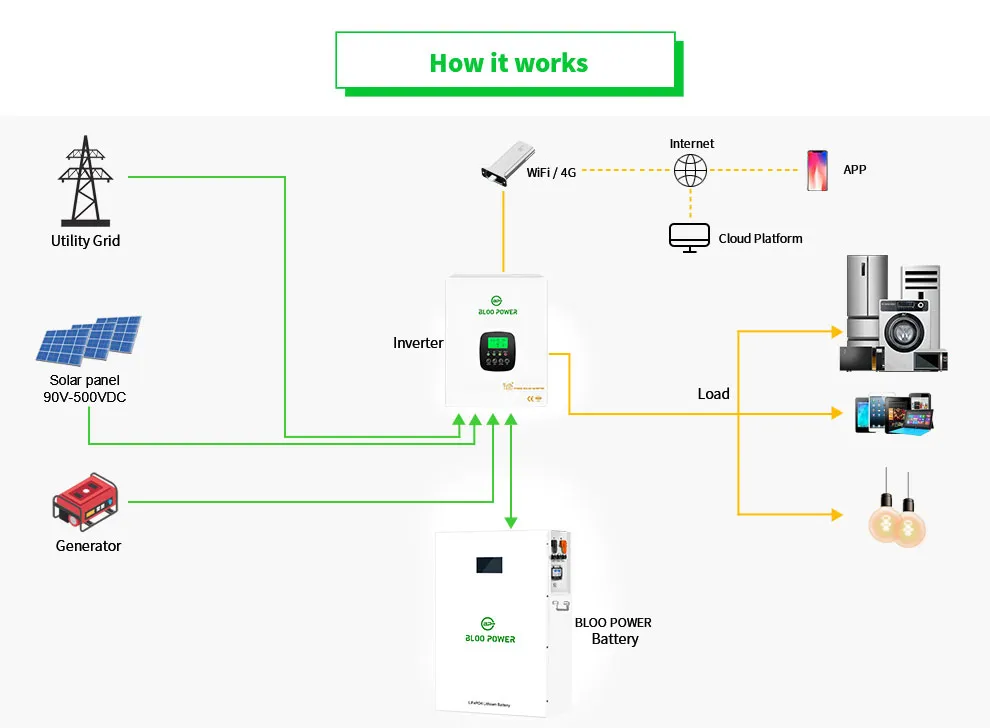

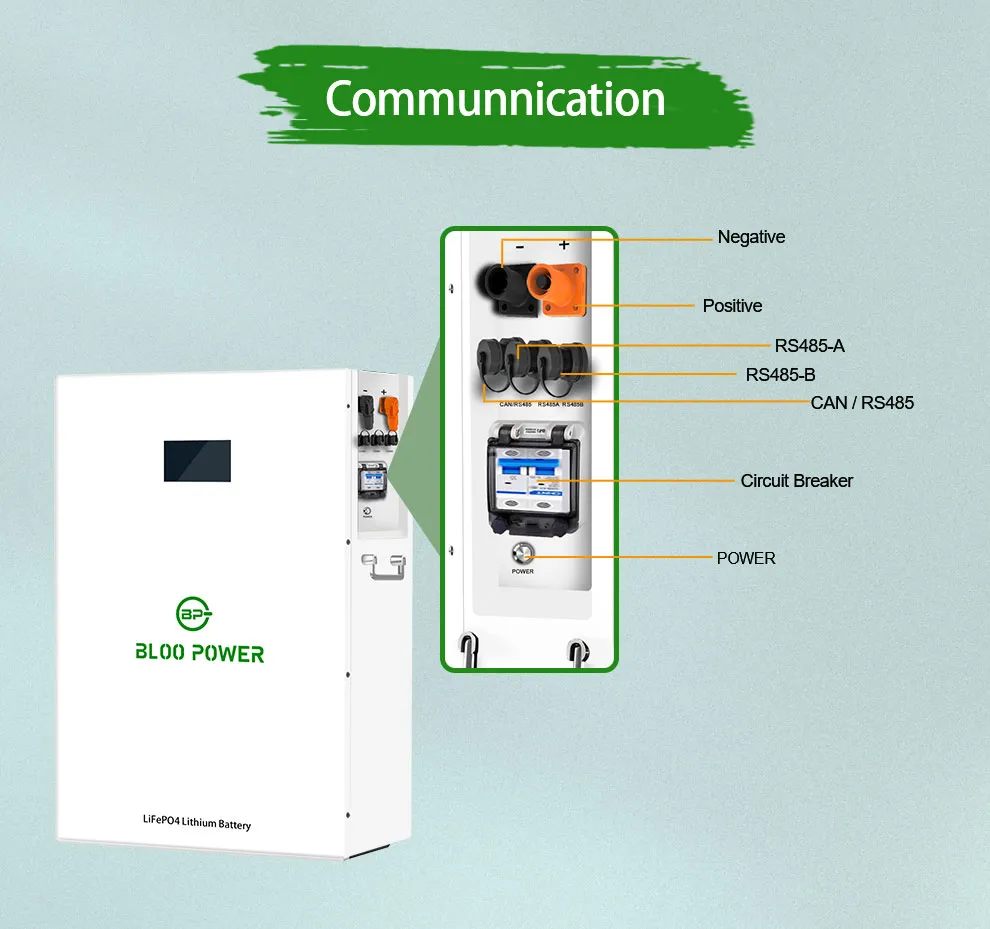

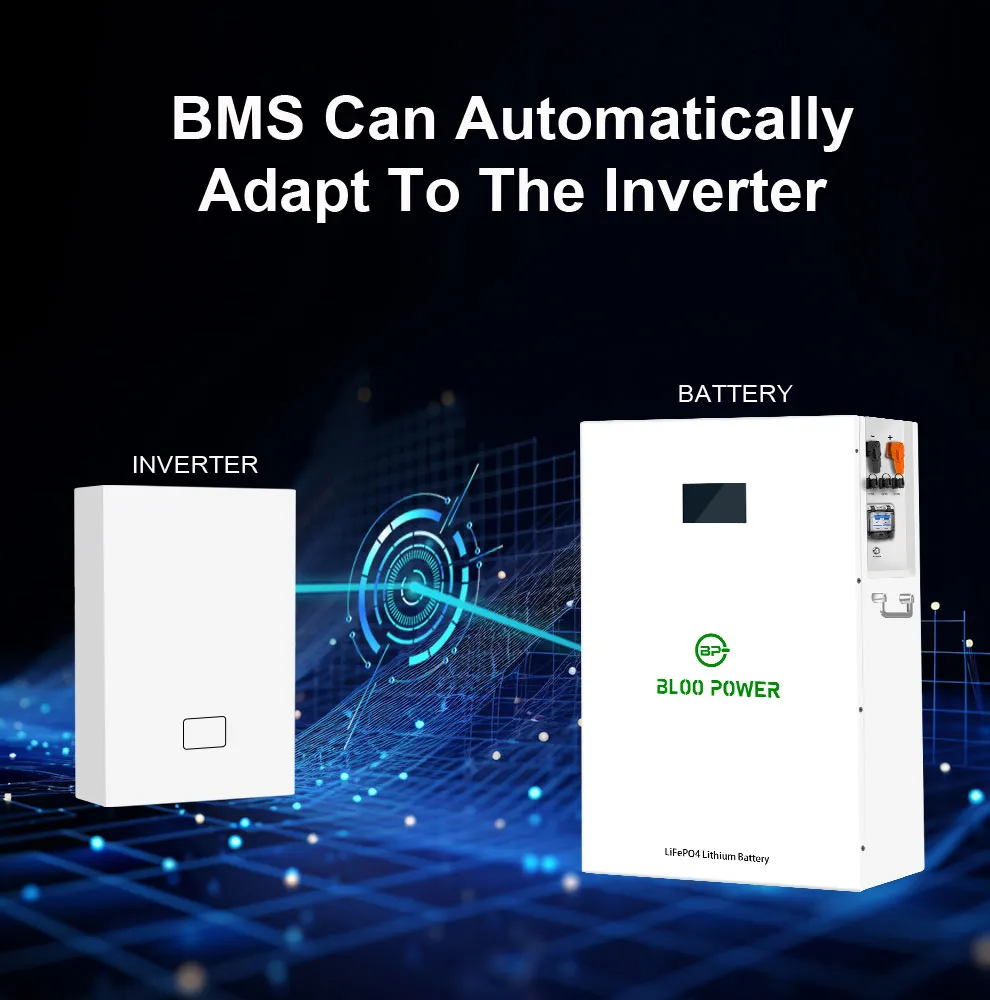

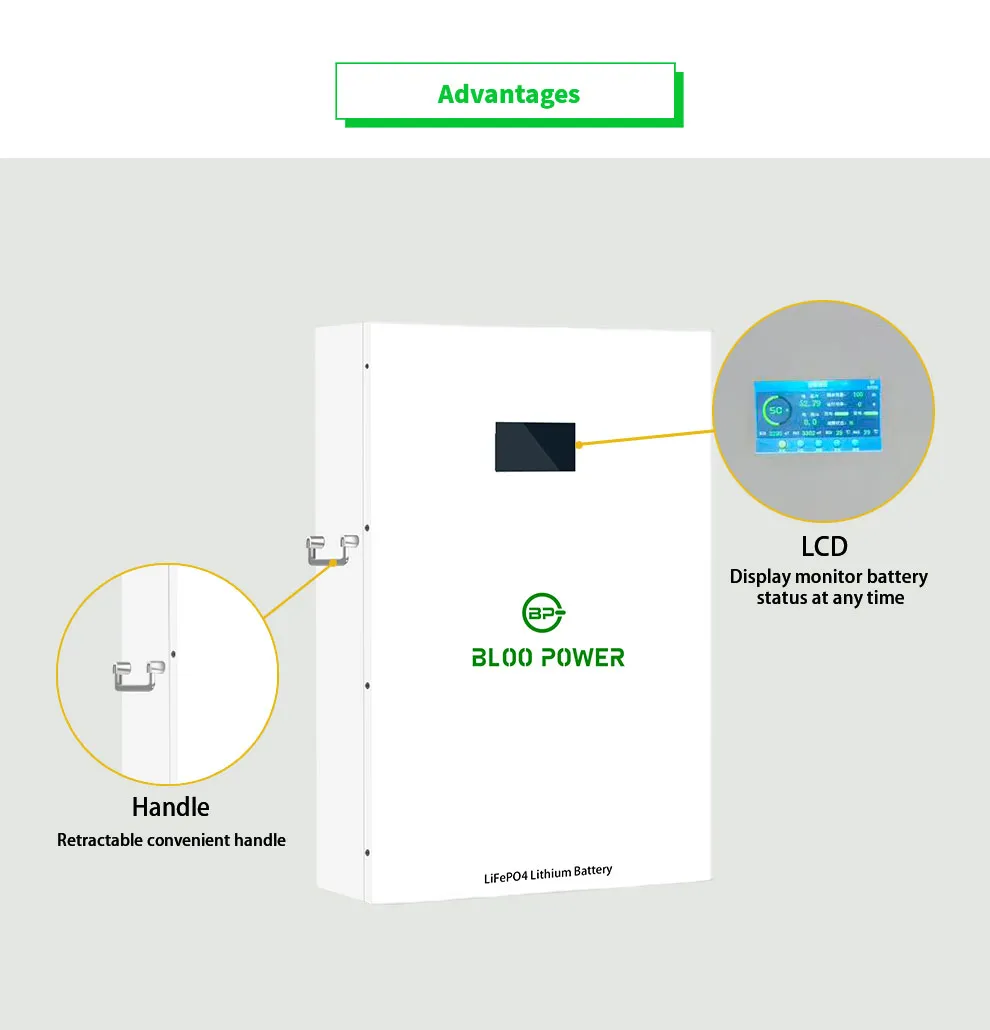

Wall mounted energy storage battery pack with quality prismatic LiFePo4 battery cells provides long life and can be widely used for electric applications. Packed with RS485, RS232 and CANbus communication interfaces, the wall mounted LiFePo4 lithium battery for solar works very well with different brands of inverters, the battery will be set before delivery, so you can simply plug and play to use without any complicated steps. To check the battery's working condition, we can see the front LCD, which shows the battery pack status collected from BMS.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-A |
BP-HP-7KWH-A |
BP-HP-10KWH-A |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
8000 cycles |
8000 cycles | 8000 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. We have wall-mounted, rack-mounted, roller, and stackable types
2. Each battery offers 8000 cycles
3. Zero pollution, good for the environment
What Is a Premium Prismatic Solar Cell Wall Mounted Lithium Battery For Safe Reliable And Efficient Operation?
In today's solar energy landscape, the Premium Prismatic Solar Cell Wall Mounted Lithium Battery For Safe Reliable And Efficient performance has become a preferred choice for residential and light commercial installations. These advanced LiFePO4 systems combine prismatic cell technology with space-saving wall-mounted design, delivering superior safety, longevity, and round-trip efficiency compared to traditional lead-acid or cylindrical alternatives.
Premium Prismatic Solar Cell Wall Mounted Lithium Battery For Safe Reliable And Efficient solutions utilize rectangular prismatic LiFePO4 cells, which offer high packing density and structural stability. Unlike cylindrical cells, prismatic formats maximize space utilization-often achieving near 100% volumetric efficiency in battery packs-making them ideal for wall-mounted enclosures.
Distributor Policy
SUPPORT: we can offer online technical assistance and offline technical service if necessary.
EXCLUSIVE: we can design exclusive products' appearance for distributors which other customers cannot use.
MOQ: 20-foot container for each order, which can include a few kinds of products.
PRICING: Distributors can get lower prices than any other customers in the same country.
MARKETING: we can design marketing posters or brochure for distributor anytime for free.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Is there a feature for automatic charging in batteries?
A：Yes, some batteries are equipped with an automatic charging feature. This allows the battery to recharge itself when its power is running low, ensuring extended usage.
Q：Is it possible to overload the battery?
A：It is recommended to avoid overloading the battery as it may reduce its overall lifespan.
Q：Is there overcharge and over discharge protection built into the battery?
A：Yes, the battery is equipped with advanced BMS technology that provides protection against overcharging and over discharging.
