Lithium-ion Energy Storage Wall Mounted Battery Pack Is Scalable
2.5/10/15 kWh types available
51.2V 200Ah wall mount lithium iron phosphate battery case 10kWh packed with a 16-cell layout, tidy structure with a solid shell keep the battery from collision and squeeze during the transportation and working time. Fully charged 10kWh 48V wall mount lithium batteries for solar systems can save power from the sun and grid, charging home appliances when the grid cuts or an emergency. Connected with the inverter, we can also monitor the battery or the whole system's working status by the remote controller.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-A |
BP-HP-7KWH-A |
BP-HP-10KWH-A |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Digital display shows battery status in real-time
2. Connect more units in parallel to get more capacity
3. Advanced BMS software with various protections
4. We accept to customize voltage, IP level, current, capacity, color, and package
Brief Introduction to Energy Storage Batteries
The safety performance of individual energy storage battery cells, modules, and clusters must strictly comply with relevant regulations, such as GB/T36276, and pass inspection by a legally qualified testing institution, obtaining a type test report. When battery cells or modules use plastic as the casing or separator material, the flammability rating should not be lower than Class B1 as specified in GB 8624. Control harnesses and cables should use flame-retardant materials, electrical interfaces should preferably employ foolproof designs, and exposed live parts should be insulated and shielded to improve safety. Simultaneously, the battery module casing and energy storage cabinet should form a reliable equipotential bond, and thermal insulation materials such as mica or aerogel should be installed between individual cells within the energy storage battery module to effectively prevent safety issues caused by heat transfer.
Installation Policy
Solar energy system products require professional technicians to install. For safety reasons, we do not recommend that customers install solar products themselves unless they are professional technicians.
We can provide technical support during the installation process. If you have any questions, please send us the relevant photos and videos for communication and check. We will provide online technical services in time.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification

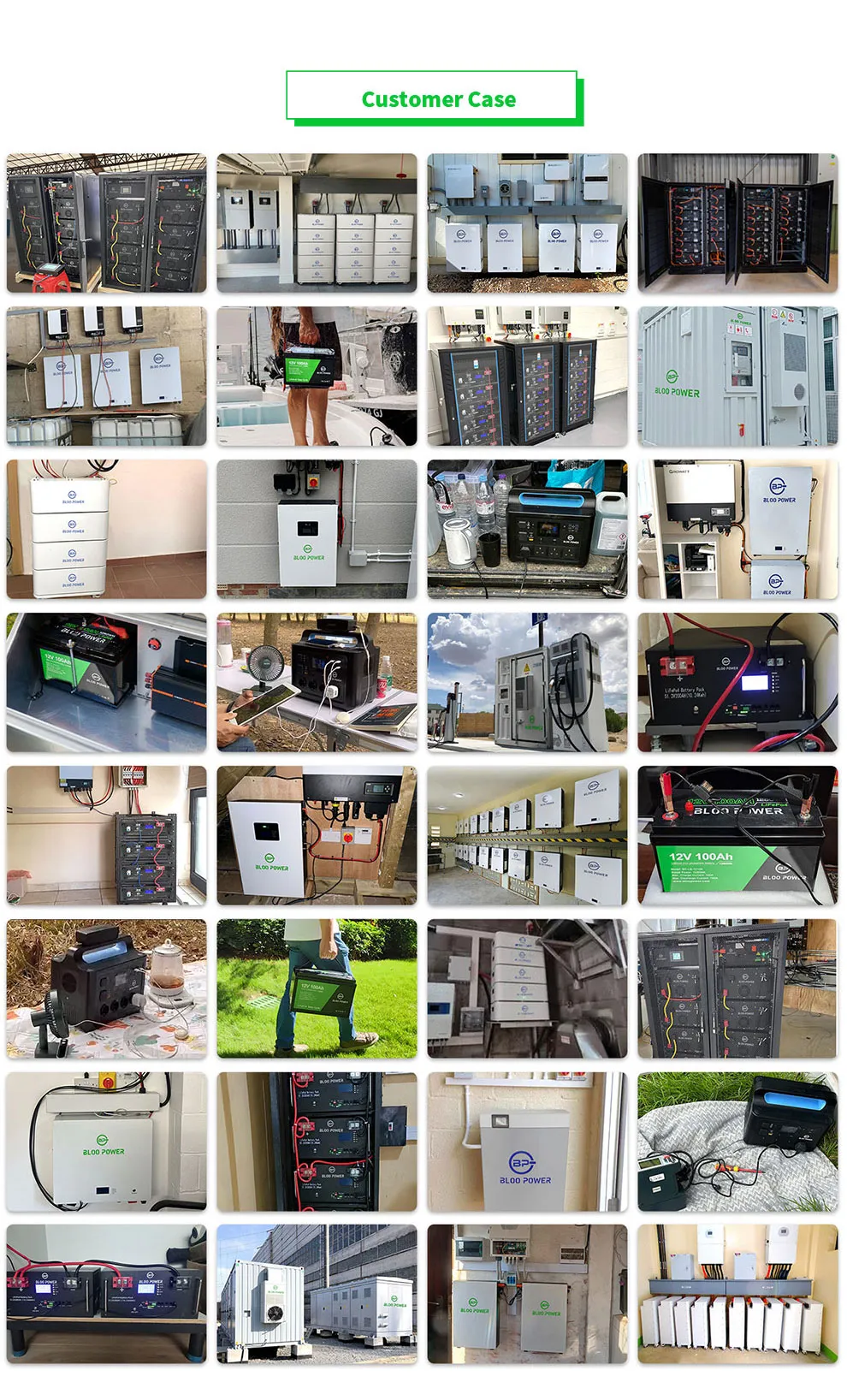

Install

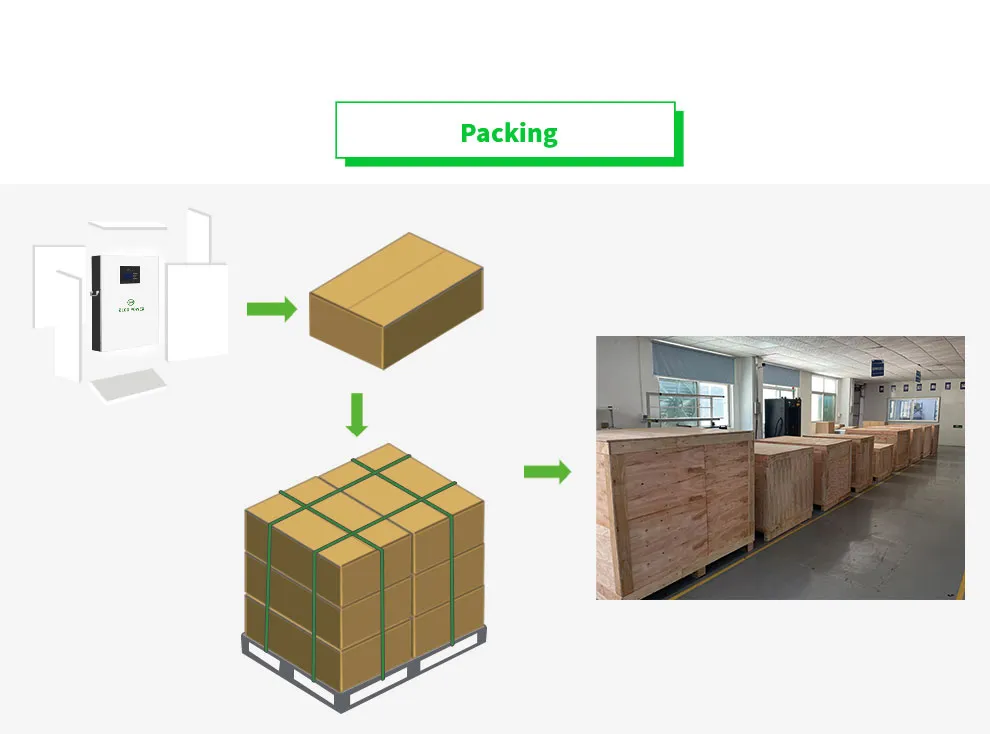

Packaging
About us
FAQ
Q：Are energy storage batteries recyclable?
A：Yes,Energy storage batteries are capable of undergoing repeated charging and discharging cycles, as long as the minimum level of charge is maintained.
Q：How does your battery ensure greater safety compared to others?
A：Our batteries are equipped with an advanced BMS system that monitors temperature, voltage, and current, providing protection against over-voltage, over-current, over-temperature, short-circuits, and reverse polarity.
Q：Can you describe your quality control process?
A：At our factory, we place great emphasis on quality control and have put in place a thorough process to ensure that every aspect of production, from obtaining raw materials to delivering the final product, meets the highest standards. Our ISO 9001 certification is evidence of this dedication. Before assembly, the battery cells undergo extensive examination and are carefully selected to guarantee only the best components are used. Prior to delivery, each batch undergoes aging tests to guarantee the optimal performance and longevity of the product.
