51.2V 48V Lifepo4 Battery Wall Mount Built-in BMS For Off/On Grid
2.Passed MSDS, UN38.3, CE, and FCC certificates

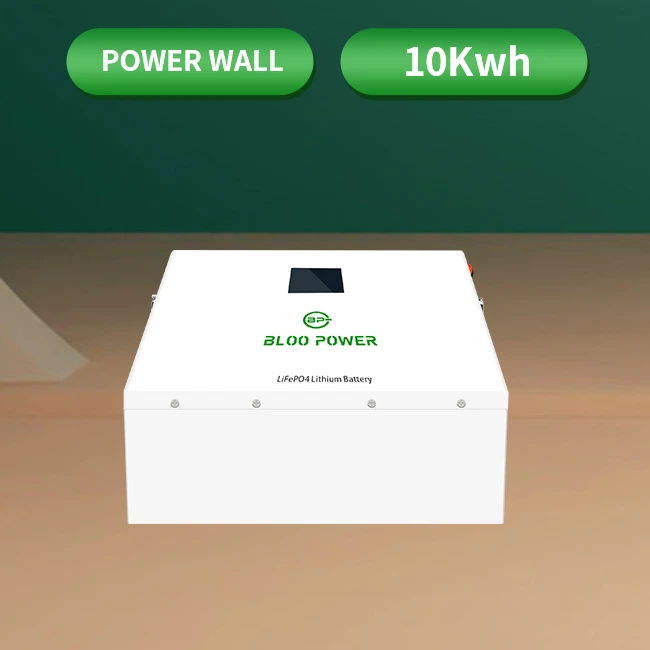

This 51.2V 48V Lifepo4 Battery Wall Mount Built-in BMS For Off/On Grid, Lithium battery wall mounted for household has three capacities per unit, 5kWh, 10kWh and 15kWh. If it requires a large capacity for a big home, our scalable mode supports adding more pieces (max 16 units) to parallel connection.
This lithium battery 51.2V 200Ah wall mount comes with 16pcs cells in series, and sufficient 10kWh power can last for a long time. Monitoring and managing the battery by the battery management system, ensuring safety throughout all lifespan.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-A |
BP-HP-7KWH-A |
BP-HP-10KWH-A |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Features many communication interfaces
2. More safer than traditional lead-acid battery
3. With over-temp protection, over-voltage protection, over-current protection, etc.
Technological progress and cost reduction
With the continuous advancement of key technologies such as battery technology and energy storage control technology, the efficiency and lifespan of energy storage systems have been significantly improved, while costs have continued to decline. This has laid a solid foundation for the widespread application of energy storage systems.
Customization Policy
OEM & ODM service to satisfy customer's requirements. For OEM service, all our products can do it, Also, our marketing team can design the logo and online posters for free. For ODM service, We can design exclusive products' appearance for you which other customers cannot use or we can manufacture according to your specific technical requirements.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Is there a warning function for low battery levels in the battery?
A：The battery can be equipped with an early warning function, providing real-time monitoring of battery parameters and prompt notifications to users for timely resolution of any issues.
Q：Are energy storage batteries suitable for use in cold temperatures?
A：The operating temperature range of our batteries is typically between -10°C to 55°C,we won't recommend to use in temperature lower -10°C.
Q：How long does it take to fully charge the battery?
A：The charging time of the battery will vary based on the total power of the solar panles and the weather.
