6000 Deep Cycles Home Solar Energy Wall Mount Storage Battery Backup
2.Working temperature: -14°F ~ 104°F

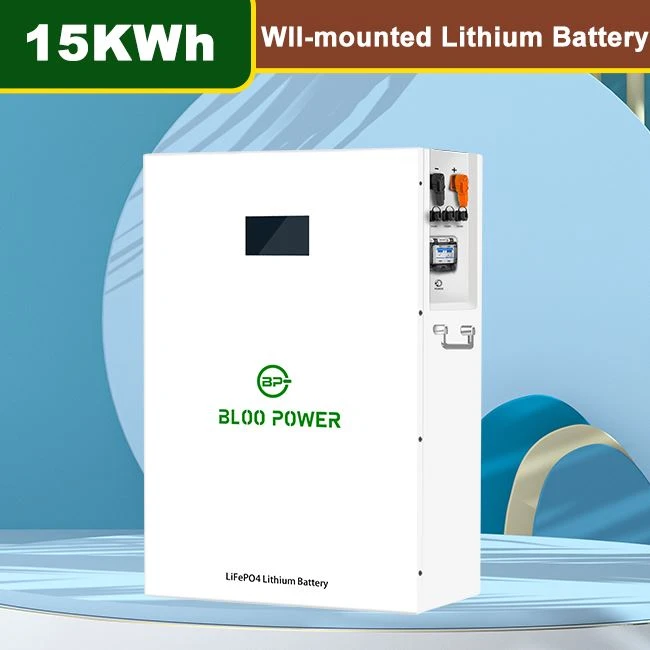

Introducing our home energy storage battery wall-mounted power wall device with an elegant appearance, solid metal shell protects the battery from collision and squeeze. We can do different IP levels for different working environments, and the IP65 can be installed indoors and outdoors due to the waterproof and dustproof functions.
The wholesale price wall 5KWh 10KWh home energy storage battery chargers are widely used in homes, offices, base stations, farms and other commercial occasions. It's a kind of user-friendly battery that requires no maintenance once set up.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-A |
BP-HP-7KWH-A |
BP-HP-10KWH-A |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. LCD screen monitor, check battery status easily
2. Compatible most of the inverter brands
3. Adopt a wall-mounted design for easy installation
4. Each battery pack is integrated with premium prismatic cells
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Is it possible for us to act as your agent?
A：Of course, we welcome you being our agent.
Q：What is the location of your loading port?
A：The loading port is Shenzhen/ Guangzhou for optional.
Q：What measures are taken to protect the battery during transportation?
A：Yes, we provide effective protective measures during transportation to ensure the safety and reliability of batteries.
