550W Solar Panel Kit With 48V Lithium Ion Battery IP65 For Outdoor Installation
2.Black and white color options

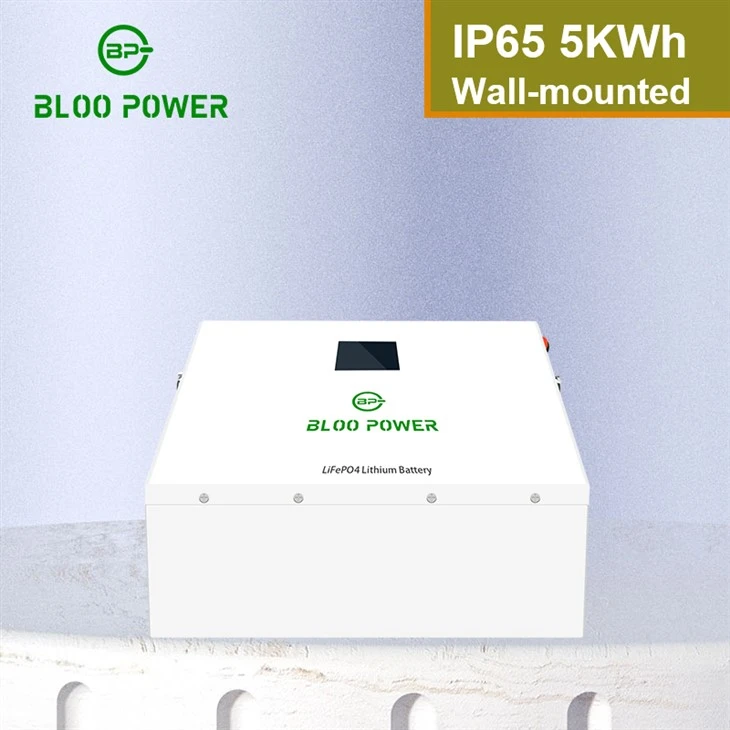

New-arrive IP65 5KWh wall-mounted battery is designed for money saving and stability. Durable case with white color presents an elegant appearance, it can be installed indoors and outdoors without worrying about humidity and dirt. This scalable home energy storage battery pack supports up to 16 modules in parallel, very flexible for expansion. We can not only offer a single unit 5KWh but also offer wholesale solar LiFePO4 power pack 10KWh. Each device we adopt premium lithium iron phosphate battery cells, with their high-density power and 8000 cycles, the LiFePO4 battery is more compact and longer life when compared to the lead-acid battery.
The 550W Solar Panel Kit with 48V Lithium Ion Battery IP65 for Outdoor Installation is one of our classic solutions for green energy. DIY solar system is always acceptable, users can decide the type of battery and inverter, size of the PV, level of protection for the inverter and battery. Our technicians will base on the client's suggestions and combine them with their professional knowledge, and a final appropriate solution will be provided.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-C |
BP-HP-7KWH-C |
BP-HP-10KWH-C |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
8000 cycles |
8000 cycles | 8000 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 65 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. With 16 cells each battery pack
2. Grade A prismatic battery cell with high power energy
3. Each 5 kWh battery weighs 60kg
What Makes the 550W Solar Panel Kit With 48V Lithium Ion Battery IP65 For Outdoor Installation Ideal for Modern Energy Needs?
The 550W Solar Panel Kit With 48V Lithium Ion Battery IP65 For Outdoor Installation delivers a robust, weather-resistant solution for residential, commercial, and off-grid applications. This high-efficiency system combines powerful monocrystalline panels with advanced lithium-ion storage and full IP65 protection, ensuring reliable performance in demanding outdoor environments.
Modern energy users seek dependable, low-maintenance renewable solutions. The 550W Solar Panel Kit With 48V Lithium Ion Battery IP65 For Outdoor Installation stands out by offering high power output, intelligent battery management, and superior environmental sealing. Its IP65 rating protects against dust ingress and water jets, making it suitable for rooftops, ground mounts, or remote installations exposed to rain, snow, or dust.
This kit typically includes multiple 550W panels, a 48V lithium-ion battery bank (often LiFePO4 chemistry for safety), an MPPT charge controller, and necessary cabling. Systems scale from 2-12 panels, delivering daily generation of 2.2–13 kWh under optimal 4–6 peak sun hours.
Price Advantage
We cannot promise that we can offer you the lowest price, but we can promise that we can offer you the best price, which means you can get the best quality products at a reasonable price. We will not sacrifice product quality to attract customers at low prices, Doing one-off business is not our goal. We hope to support our customers in expanding their businesses, we always know customer prosperity is our priority.
Product qualification
Install
Packaging
About us
FAQ
Q： How does your battery ensure greater safety compared to others?
A： Our batteries are designed with safety as a top priority, with the latest technologies incorporated to ensure the protection of the battery from overheating, overcharging, and over-discharging.
Q：What are the reasons to choose your company?
A：Our team consists of experienced sales professionals and dedicated R&D specialists, ensuring that you receive a qualified product at a competitive price. Additionally, we pride ourselves on timely delivery and providing sincere, attentive customer service.
Q：What is the proper method for storing batteries?
A：To ensure proper battery storage, it's recommended to avoid both deep discharging and prolonged charging, and to keep the battery in a environment that is not too hot or too cold for an extended period of time. Additionally, it's important to store the battery in a place where it will not be exposed to moisture.
