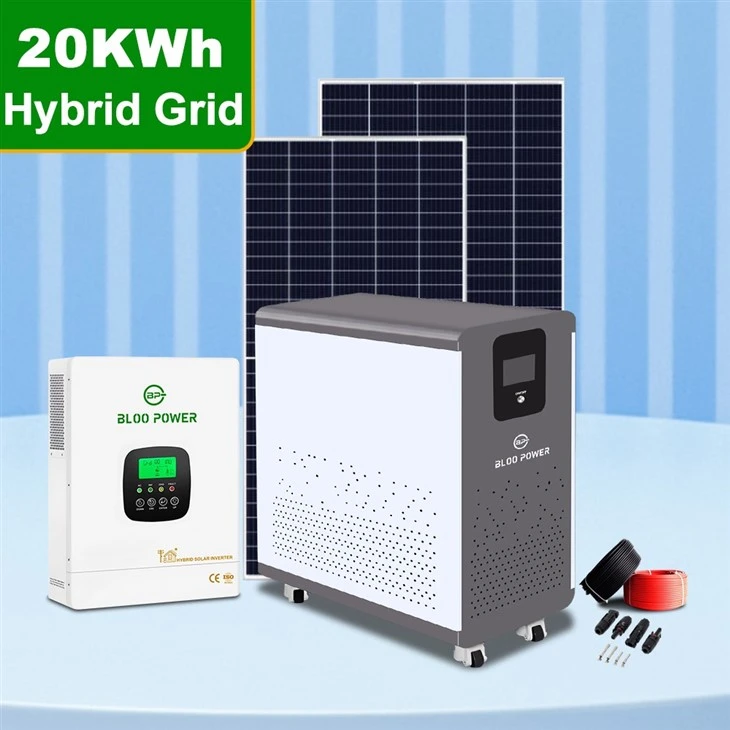

Complete On/off Grid Solar Systems For Home And Commercial Solar SystemS
2.Cutting-edge technology PV has an excellent performance
Passed the CE, FCC, MSDS, and UN38.3 certifications, our green Lithium iron phosphate battery cell device is more safe and durable, the high power density saves more space when compared to the same capacity for the lead-acid battery cell.
This new upgraded model 51.2V 400Ah battery with pure sine wave inverter is a popular solution for small offices, houses, farms, and shops. Each battery can charge and discharge up to 6500 times, with an intelligent BMS system, it requires no maintenance after it is installed.
Parameter
|
NO |
Model No. |
BP-SS-20KWH |
BP-SS-25KWH |
BP-HR-30KWH |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
LiFePo4 Battery |
1 pcs |
1 pcs | 1 pcs |
|
3 |
Rated Capacity |
400Ah |
456Ah |
560Ah |
|
4 |
Rated Energy |
20KWh |
25KWh |
30KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
10 |
Inverter |
12KW |
12KW |
12KW |
|
11 |
700W Solar Panel |
20 pcs |
20 pcs |
20 pcs |
|
12 |
Solar Cable |
2 pcs | 2 pcs | 2 pcs |
|
13 |
MC4 |
Included | Included | Included |
|
15 |
Operation Temperature |
Charge: 0℃~55℃,Discharge: -10~55℃ |
||
| 16 | Storage Temperature | Keep at 0℃ to 55℃ | ||
| 17 | Cell Type | LiFePo4 Lithium ion Phosphates Battery | ||
| 18 | Maintenance | Maintenance free | ||
| 19 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 20 | BMS | Intelligent battery mangement system | ||
| 21 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Environmentally friendly solar system with zero maintenance
2. 20KWh per unit battery with flexible four wheels
3. Wide area application: homes/small malls/shops/farms/etc.
Wheel Lithium LiFePo4 Battery
Easy installation and maintenance Local and remote management,standard roller&module design, front maintenance.High density LFP high-capacity Li-Ion battery. Self-developed 3-level BMS, complex protection, safe and reliable.
Long cycle life,6500 cycles.
Half Cut Mono 700W Solar Panel
Peak Power Watts: 700W
Maximum Power Voltage: 40.5V
Maximum Power Current: 17.28A
Open Circuit Voltage: 48.5V
Short Circuit Current: 18.34A
Dimensions:2384x1303x35mm
Weight:38 kg.
Hybrid Off Grid Solar Inverter
Adopting high-frequency design,high power density,small size,andhighoverallefficiency;
Bidirectional energy storage design,which can achieve bidirectional flow control of electrical energy,and both photovoltaic and mains electricity can be charged to the battery;
UItra wide MPPT range,with a minimum of 40Vdc(24V models)/80Vdc(48V models).
Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc Support full lifecycle data storage to ensure data security and reliability
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional Rated Voltage:600VDC(UL)/1000VDC(TUV) Rated Current: 55A,70A Colors: Black For STD, Red Optional. Lifetime:≤25 Years
Shipping term
For battery products, the transportation is mostly by sea, and shipping time varies from 20 to 60 days depending on the region.
If you have a trusted freight forwarder, we can deliver the goods to your freight forwarder and assist with transportation and customs clearance. If you need our help, our cooperating forwarder will provide the shipping service for you. The forwarder can deliver to the port, in this situation, you need to do the customs clearance, pay the taxes, and pick up the goods by yourself; The forwarder also can deliver to your specific address, in this situation, the forwarder will help to do the customs clearance and tax payment, all you need to do is to receive goods in your place.
safety certifications
customer Case
Compatible With Inverters
Packaging
About us
FAQ
Q：What is the warranty policy for the battery?
A：The warranty for the battery varies, ranging from 5 to 10 years, depending on the specific model.
Q：Is it possible to customize the size of the battery?
A：Yes, we offer tailored solutions to meet the unique needs of our customers by providing custom-sized batteries to fit their specifications.
Q：Do you manufacture lithium batteries?
A：Yes, our factory specializes in the production of lithium batteries and has been doing for more than 10 years.
