Complete High Voltage & Low Voltage Solar Panels For Off Grid Systems
2. Passed the CE, FCC, MSDS and UN38.3 certifications

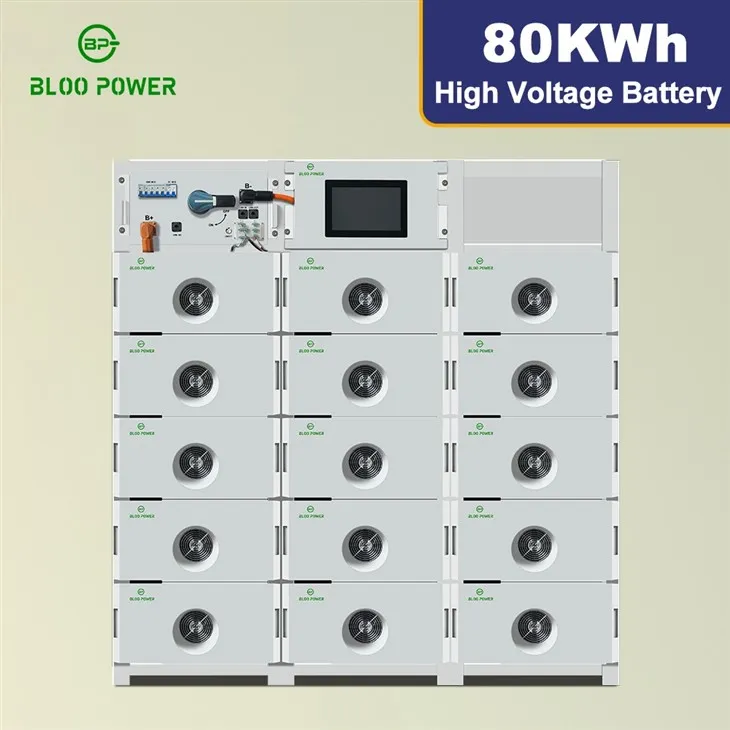

The high capacity 30KW complete solar system consists of battery packs, HV inverter, and PV. Compared to the low-voltage solar system, it has higher efficiency and allows a greater number of modules to connect in parallel. This 80KWh lithium-ion battery system has an impressive protection mechanism, monitoring and balancing the whole battery system within the safe operating range. The HV ESS is widely used in data centers, shops, large manufacturing enterprises, and large shopping malls.
We offer complete high voltage & low voltage solar panels for off grid systems. Customizing different energy storage systems for different-sized projects.
Parameter
| NO | Model No. | BP-HP-50KWH | BP-HP-100KWH | BP-HP-150KWH | BP-HP-200KWH | BP-HP-215KWH |
| 1 | Rated Voltage | 256V | 358.4V | 512V | 716.8V | 768V |
| 2 | Rated Capacity | 200Ah | 280Ah | 300Ah | 280Ah | 280Ah |
| 3 | Rated Energy | 51.2KWh | 100.3KWh | 153.6KWh | 200.7KWh | 215KWh |
| 4 | Voltage Range | 200V～292V | 280V～408.8V | 400V～574V | 627.2V～817.6V | 672V～864V |
| 5 | Cycles(80% DOD) | 6500 cycles | 6500 cycles | 6500 cycles | 6500 cycles | 6500 cycles |
| 6 | Depth of Discharge | 80% | 80% | 80% | 80% | 80% |
| 7 | Charge Current | 40A | 40A | 40A | 40A | 40A |
| 8 | Discharge Current | 40A | 40A | 40A | 40A | 40A |
| 9 | Maximum Continuous Charge Current | 160A | 160A | 160A | 160A | 160A |
| 10 | Maximum Continuous Discharge Current | 200A | 200A | 200A | 200A | 200A |
| 11 | Operation Temperature | Charge: 0℃~55℃,Discharge: -10~55℃ | ||||
| 12 | Display | LCD | ||||
| 13 | Cell Type | LiFePo4 Lithium Ion Phosphate Battery | ||||
| 14 | Communication | RS485/CAN/RS232 | ||||
| 15 | Compatibility | Compatible with most of available in/off-gird inverters and charge controllers | ||||
| 16 | BMS | Intelligent battery mangement system | ||||
Product Features
1. Multiple protections for each battery pack
2. High voltage system offers efficient energy
3. Environmentally friendly battery device with long service life
Pre-sale, in-sale and after-sale service
Pre-sale: we will help you do a highly cost-effective solutions according to your specific requirements.
In-sale: we will update the pictures and videos for customers when producing; Offer quality control reports before delivery; and assist with delivery and customs clearance.
After-sale:
For installation, we offer online technical support; If you have any questions during the installation, contact us with relevant pictures and videos in time. During usage, if has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
Product qualification
Compatible Inverters
Packaging
About us
FAQ
Q：What is the method of delivery for the battery?
A： Typically, batteries are shipped via air or sea.
Q：Can battery deformations occur during transportation?
A：Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
Q：What measures are taken to protect the battery during transportation?
A：Yes, we provide effective protective measures during transportation to ensure the safety and reliability of batteries.
