Upgraded Lifepo4 Off-grid Solar Power Backup With High IP65 Design
2.No harmful substance during use

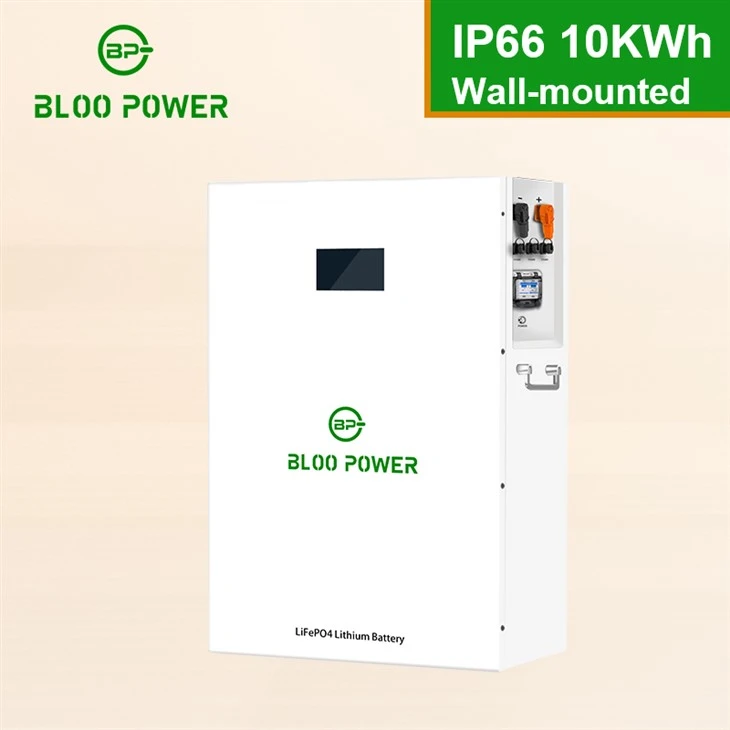

Introducing Bloopower home solar battery wall mount type, it's equipped with the cutting-edge lithium iron phosphate battery cell technology, each cell has high-density energy and a 15-year service life.
Dimensions 680 X 412 X 231mm, the compact device with 10kWh large power is mainly used for residential energy storage solutions, can provide electricity when users need. If the customer wants to add more energy backup devices, our LiFePO4 battery in the same module can be connected up to 16 pieces in parallel.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-C |
BP-HP-7KWH-C |
BP-HP-10KWH-C |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 65 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Indoor installation with IP20, and outdoor with IP65
2. Bloopower Lithium-ion battery is durable and scalable
3. Compatible with many mainstream hybrid inverters
4. Customization: voltage, ingress protection, color, capacity, etc.
Photovoltaic systems and energy storage systems
A photovoltaic system converts sunlight into direct current (DC) electricity through solar panels. Its core component is the solar panel, which converts sunlight into electricity through the photoelectric effect. Energy storage systems, typically consisting of batteries, supercapacitors, and flywheels, store this energy. Energy storage systems can address the intermittent nature of photovoltaic power generation and improve grid stability.
Distributor Policy
SUPPORT: we can offer online technical assistance and offline technical service if necessary.
EXCLUSIVE: we can design exclusive products' appearance for distributors which other customers cannot use.
MOQ: 20-foot container for each order, which can include a few kinds of products.
PRICING: Distributors can get lower prices than any other customers in the same country.
MARKETING: we can design marketing posters or brochure for distributor anytime for free.
Product qualification
Install
Packaging
About us
FAQ
Q： When can I expect to receive a quotation?
A： We generally respond to inquiries with a quote within 24 hours. If you require a quicker response, please let us know and we will prioritize your request.
Q：Is it possible to use an alternative AC adapter, or a non-branded AC adapter, to charge the power station?
A：You can contact us to find out if a different AC adapter can be used to charge your power station. We suggest you to provide us with your order number and model information for further assistance.
Q：Where can I purchase an AC adapter for my power station battery?
A：If you need a replacement AC charger for your battery workstation, please contact us with your order information, and we would be happy to help you find the right solution.
