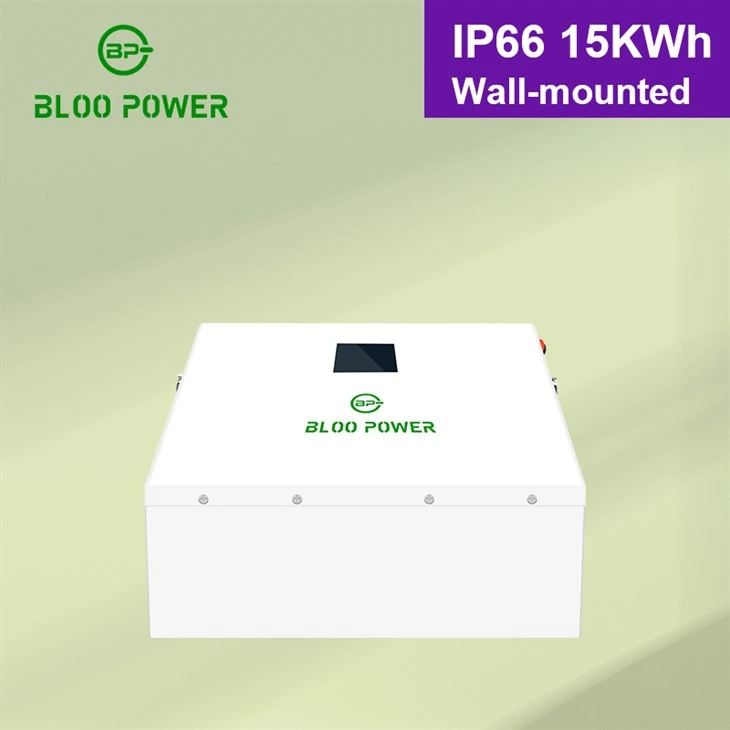

UN38.3 Certified Wall Mounted Battery Case With Anti-water Function
2.6500 times charge & discharge every device
Hot selling wall mounted life po4 lithium battery of Bloopower is the 5KWh and 10KWh, and now, we adopt cutting-edge technology to reach 15KWh single pack. Before delivery, there will be multiple quality inspections, the problem will be solved once we find it. So, each energy storage battery wall-mounted device is durable. Plus, by using the top brand battery management system that enhances the safety, whether during transportation or working.

Parameter
|
NO |
Model No. |
BP-HP-5KWH-C |
BP-HP-7KWH-C |
BP-HP-10KWH-C |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V~58.4V | 40V~58.4V | 40V~58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 66 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||

Product Features
1. There are 5 kWh, 7 kWh, 10 kWh, 15 kWh single battery capacities
2. BMS can monitor and manage the battery all the time
3. High energy density in a small size
4. We support to DIY solar system for your project




Lifespan of lithium iron phosphate batteries
Lithium iron phosphate batteries offer a significantly longer lifespan, with a cycle life exceeding 6,000 cycles, meaning they can last for 7 to 8 years under the same operating conditions. In comparison, ordinary lead-acid batteries have a cycle life of only around 300 cycles, and even the highest-rated only reach 500. Lithium iron phosphate power batteries, on the other hand, can easily achieve a cycle lifespan exceeding 2,000 cycles, and even up to 2,000 cycles if charged at a standard rate (5 hours). Furthermore, lead-acid batteries of the same quality often only have a practical lifespan of 1 to 1.5 years, while lithium iron phosphate batteries, under the same conditions, have a theoretical lifespan of 10 to 15 years. Therefore, from a cost-performance perspective, lithium iron phosphate batteries are theoretically at least four times more cost-effective than lead-acid batteries.



Shipping term
For battery products, the transportation is mostly by sea, and shipping time varies from 20 to 60 days depending on the region.
If you have a trusted freight forwarder, we can deliver the goods to your freight forwarder and assist with transportation and customs clearance. If you need our help, our cooperating forwarder will provide the shipping service for you. The forwarder can deliver to the port, in this situation, you need to do the customs clearance, pay the taxes, and pick up the goods by yourself; The forwarder also can deliver to your specific address, in this situation, the forwarder will help to do the customs clearance and tax payment, all you need to do is to receive goods in your place.

Product qualification

Install

Packaging

About us

FAQ
Q: What measures are taken to protect the battery during transportation?
A: Yes, we provide effective protective measures during transportation to ensure the safety and reliability of batteries.
Q:What is the location of your loading port?
A:The loading port is Shenzhen/ Guangzhou for optional.
Q:Is it possible for us to act as your agent?
A:Of course, we welcome you being our agent.
