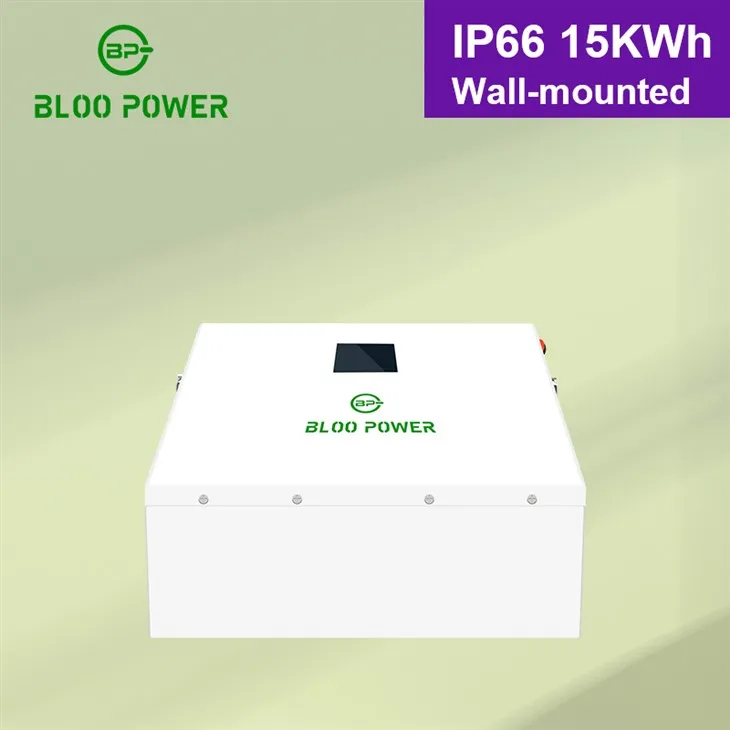

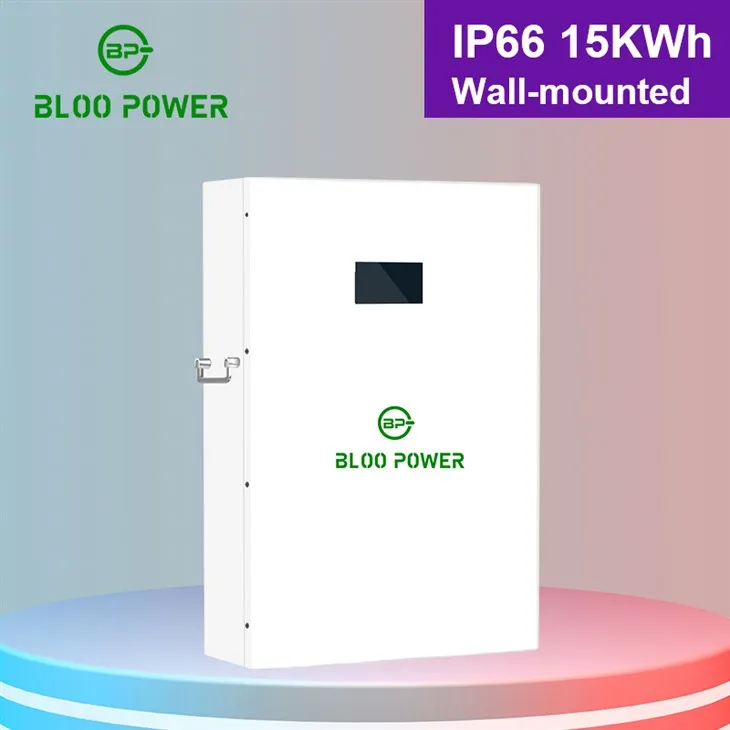

Hybrid Inverter 10KW Wall Mount Battery Solar System 15KWh

Hybrid Inverter 10KW Wall Mount Battery Solar System 15KWh

1.Black or white color options
2.Passed MSDS/UN38.3/CE/FCC
Send Inquiry
Add To Inquiry

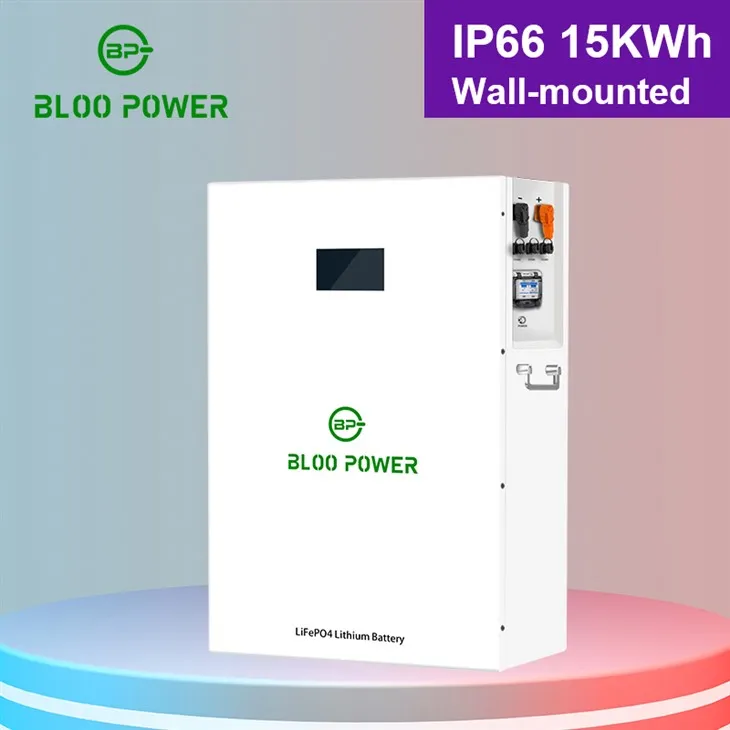

280Ah capacity 15kwh wall mounted solar battery lithium can offer enough electricity for the wall mounted tablet for smart homes battery, and power other applications simultaneously, such as the air conditioner, TV, washing machine, coffee maker, water heater, etc.

For more capacity based on the original solar system, people can simply add the same modules through the RS485/CAN ports, the max capacity can be 240KWh large capacity.

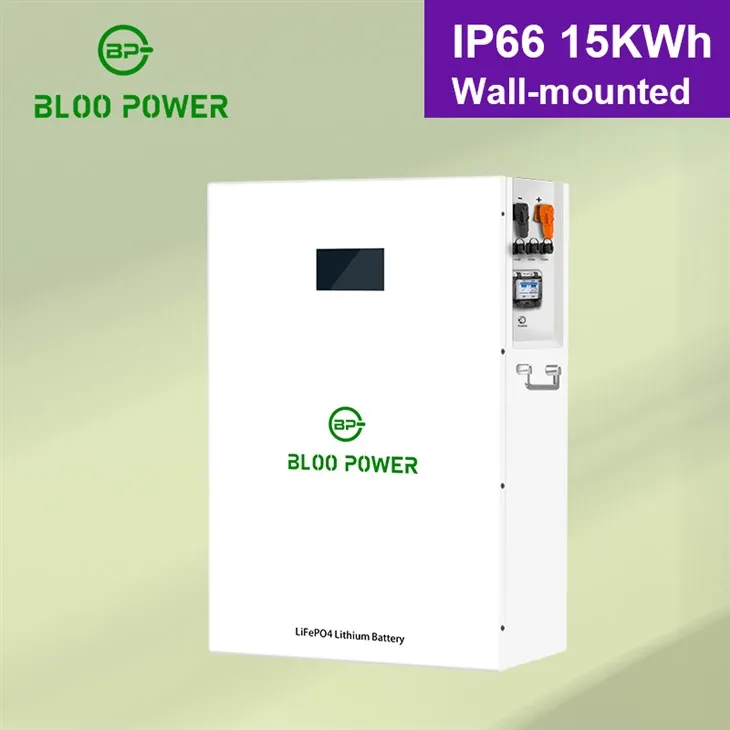

Wall-mounted-LiFePo4-Battery-48v









 Parameter



NO

Model No.

BP-HP-5KWH-C

BP-HP-7KWH-C

BP-HP-10KWH-C

1

Rated Voltage

51.2V

51.2V

51.2V

2

Cell Combination Type

16S

16S

16S

3

Rated Capacity

100Ah

135Ah

200Ah

4

Rated Energy

5.12KWh

6.91KWh

10.24KWh
5 Voltage Range 40V~58.4V 40V~58.4V 40V~58.4V

6

Cycles(80%DOD)

8000 cycles

8000 cycles 8000 cycles

7

Depth of Discharge

80%

80% 80%

8

Charge Current

20A

20A

40A

9

Discharge Current

20A

20A

40A

10

Maximum Continuous Charge Current

80A

80A

160A

11

Maximum Continuous Discharge Current

100A

100A

200A

12

Maximum Continuous Charge/Discharge Current

5.12KW

6.19KW

10.24KW

13

Weight

60kg

80kg

120kg

14

Dimension L*W*D(mm)

L650*W384*H142mm

L650*W420*H135mm

L680*W412*H231mm

15

Battery Type

Wall-mounted

16

Operation Temperature

Charge: -10℃~55℃,Discharge: 0~55℃

17 Storage Temperature Keep at -10℃ to 55℃
18 Cell Type LiFePo4 Cell
19 Maintenance Maintenance free
20 Compatibility Compatible with most of available off-gird/hybird inverters and charge controllers
21 BMS Intelligent battery mangement system
22 IP Protection IP 66
23 Maximum Parallel/Moduler Connection 16pcs





Battery with iverter solar system


Product Features



1. OEM and ODM services are available
2. Scalable feature for large capacity
3. Anti-water and anti-dust wall-mounted battery for outdoors
4. Compatible with most of the hybrid inverters



Wall-mounted-LiFePo4-Battery-51.2v

Storage-Solution-Provider

IP65-Dustproof-And-Waterproof-Level

BMS-Can-Automatically-Adapt-To-The-Inverter







No memory effect of lithium iron phosphate batteries.



A major advantage of lithium iron phosphate batteries is their lack of a memory effect. In contrast, rechargeable batteries like nickel-metal hydride and nickel-cadmium experience a rapid decrease in capacity, far below their rated value, when left fully charged but not fully discharged for extended periods. This phenomenon is known as the memory effect. However, lithium iron phosphate batteries are unaffected by this effect, allowing users to charge and use them at any time, regardless of their current state, without having to fully discharge them first.



Wall-mounted-LiFePo4-Battery-Advantages

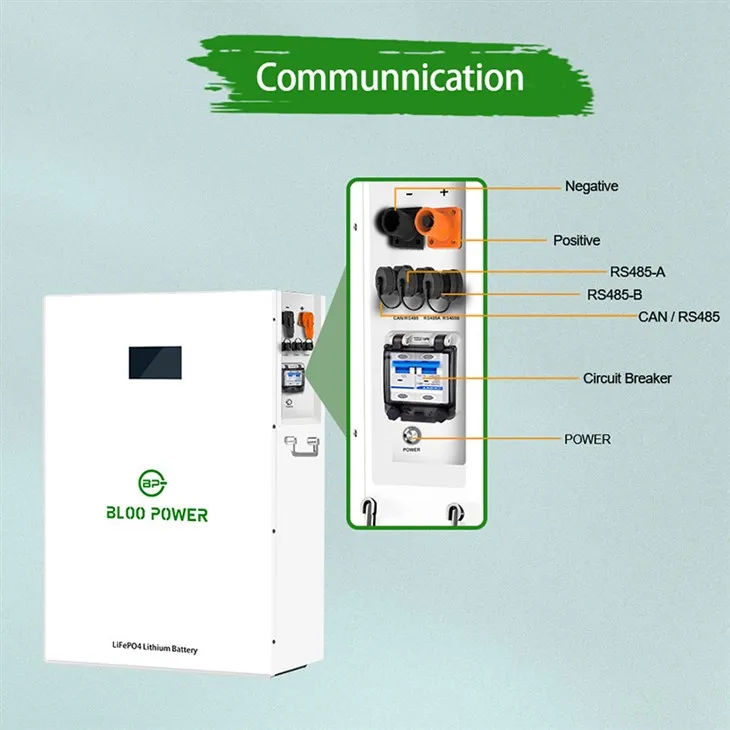

Wall-mounted-LiFePo4-Battery-Communnication

Our-Chip-Structure-Advantages



Quality Control



1. Raw material quality control: all raw materials will be fully inspected before production. Only those that pass the inspection can be used for the next production step.

2. During production, Each process is supervised by QC staff, who will conduct production inspections from time to time. Any problems found will be solved as soon as possible.

3. QC before shipment: all products will be subjected to aging tests, and each batch of goods needs to provide a full-process quality control report, and no defects are allowed.


Residential Battery Bank system



Product qualification

Certificate



Install


Battery Customer Case



Packaging



Wall-mounted-LiFePo4-Battery-Packaging





About us



Wall-mounted-LiFePo4-Battery-About-Us



FAQ





Q: Is the cost of the battery reasonable?

A: Yes, we offer competitive pricing for our batteries by carefully considering the model and quantity to provide the best value for our customers.



Q:What is the method of delivery for the battery?
A:Typically, batteries are shipped via air or sea.



Q:Can battery deformations occur during transportation?
A:Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
