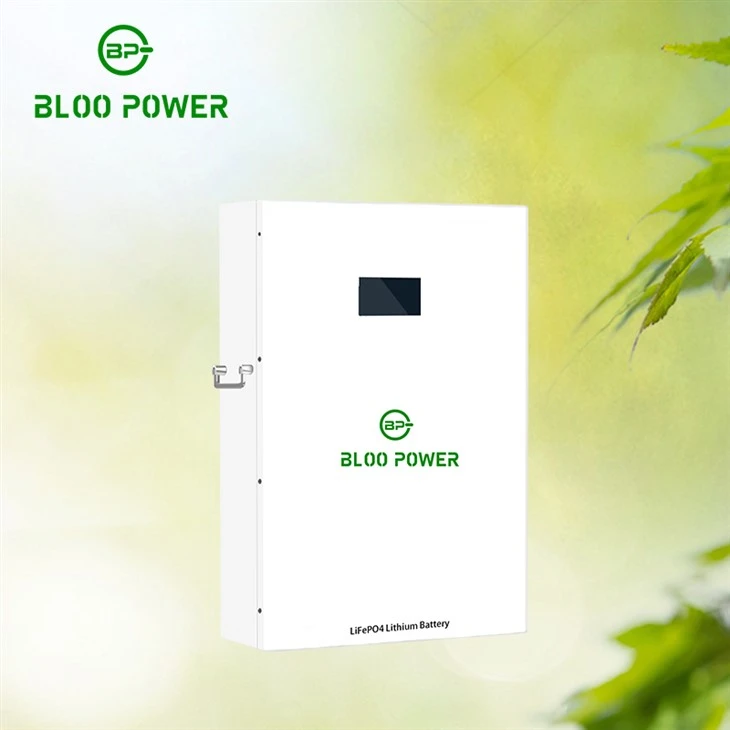

51.2V 150Ah Solar Energy Storage Battery
2.51.2v 150ah 7kwh capacity for residential energy storage
We are committed to developing intelligent, safe, reliable, and durable energy storage solutions. This energy storage system ESS LiFePO4 battery pack has built-in advanced BMS to provide overloading/over-voltage/over-current/over-heating protection. Featuring IP65 degree with waterproof and dustproof functions, so you can use this wall mounted battery LiFePO4 both indoors and outdoors. Our lithium-ion battery supports customized 16 units same batteries in parallel to expand capacity due to the modular design, so this 51.2V 150Ah Solar Energy Storage Battery 7KWh can be expanded up to 120KWh big capacity.
Parameter
|
NO |
Model No. |
BP-HP-5KWH-C |
BP-HP-7KWH-C |
BP-HP-10KWH-C |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Type |
16S |
16S |
16S |
|
3 |
Rated Capacity |
100Ah |
135Ah |
200Ah |
|
4 |
Rated Energy |
5.12KWh |
6.91KWh |
10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Cycles(80%DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Depth of Discharge |
80% |
80% | 80% |
|
8 |
Charge Current |
20A |
20A |
40A |
|
9 |
Discharge Current |
20A |
20A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
80A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Maximum Continuous Charge/Discharge Current |
5.12KW |
6.19KW |
10.24KW |
|
13 |
Weight |
60kg |
80kg |
120kg |
|
14 |
Dimension L*W*D(mm) |
L650*W384*H142mm |
L650*W420*H135mm |
L680*W412*H231mm |
|
15 |
Battery Type |
Wall-mounted |
||
|
16 |
Operation Temperature |
Charge: -10℃~55℃,Discharge: 0~55℃ |
||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||
| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||
| 21 | BMS | Intelligent battery mangement system | ||
| 22 | IP Protection | IP 65 | ||
| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1. Full metal shell to protect the lithium ion battery cell.
2. IP65 waterproof and dustproof suitable for outdoor using.
3. BMS provide over load over voltage over current and over current protection.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：How do we address equipment issues during usage?
A：If you encounter any problems with our products, please don't hesitate to reach out to us via email, attaching pictures or a short video to illustrate the issue. Our team will promptly address the problem and, if necessary, send a replacement part free of charge during the warranty period.
Q：Is it possible to overload the battery?
A：It is recommended to avoid overloading the battery as it may reduce its overall lifespan.
Q：What is the lifespan of LiFePO4 batteries?
A：LiFePO4 batteries have a lifespan of over 6500 cycles at 80% depth of discharge. With daily charging and discharging, these batteries can last more than 15 years.
