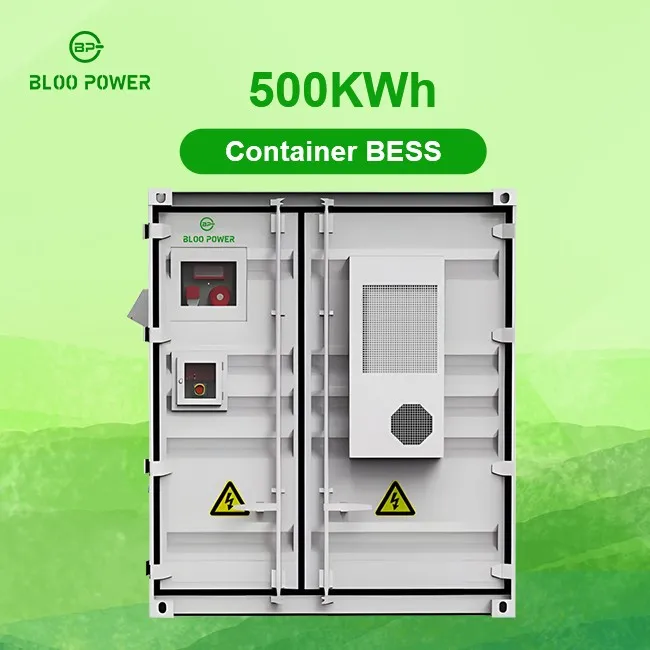

Long-lasting 250KW PCS 500KWh BESS Solar Battery Energy Storage System All-in-one Cabinet
2. Grid-tied peak shaving or off-gird power supply guarantee
Good quality lithium ion battery energy storage systems (BESS) with comprehensive functions, and be applied to a diversity of appliances, like self-consumption, vehicle charge, micro-grid, off-grid, home backup, and peak shaving.
The one-container commercial solar energy system contains the battery packs, PCS/inverter, AC/DC converter, HV board, cooling system, anti-fire system, and LED system. We deliver in a whole cabinet which is very convenient for outdoor installation. With IP55, it can be put indoors or outdoors.
Parameter
|
System Parameters |
||
|
Rated AC Power |
250KW/500KW | 500KW/1000KW |
| Rated AC Voltage |
400V |
|
| Rated AC Current |
360A/720A |
720A/720A*2 |
| THD | <3%(Linear load) | |
| PF Adjustable Range | -1(leading) ~ +1(lagging) | |
|
Battery Cell Specification |
3.2V/120Ah; 3.2V/280Ah |
|
| Battery Cell cycle Life |
>6000 cycls@0.5C, 25℃ |
|
|
Available Rated Capacity |
500KWh/1000KWh | 500KWh/1000KWh |
|
Type |
Modular, High efficiency three level | |
|
Protection |
Over temperature, low temperature charging, over current, short circuit, over voltage, under voltage, DC bus protection, tec. |
|
| Connection Mode | Three phase three wire/three phase four wire | |
| Isolation Transformer | Equipped(optional) | |
| Working Mode | Grid-tied peak shaving/off-grid power supply guarantee | |
| General Parameters | ||
| Dimension(W*D*H) | 6058*2438*2896mm | 12196*2438*2896mm |
| Weight | 18 tons | 35 tons |
| IP Grade | IP55 | |
| Operating Temperature | -25℃ ~ 60℃(Derating>45℃) | |
| Relative Humidity | 0 ~ 95%(non-condensing) | |
| Altitude | 3000m(>3000m Derating) | |
| Fire Extinguishing System | FM200 pipe fire extinguishing system | |
| Cooling System | Air cooling / Liquid cooling | |
| Communication Interface/Protocol | RS485, Ethernet/Modbus RTU, Modbus TCP | |
Product Features
1. High IP level: IP55.
2. Many levels of protection: over current, over-voltage, short circuit, over-temp.
3. Professional team supports outstanding products and good service.
High degree of modularity, simple structure, easy to install and maintain; Integrate independently developed BMS products for realtiem monitoring and management.
Certificates
About us
FAQ
Q：Does the residential Powerwall come with a Battery Management System (BMS)?
A： Yes, the battery comes with a built-in battery management system (BMS).
Q：Can you explain the concept of "peak shaving mode" or "load shifting"?
A：The peak shaving mode can be configured by specifying the peak and valley periods.
Q：Is it possible for me to install the energy storage system at home by myself?
A：Yes, you may install the battery following our installation instructions. Please make sure to read the instructions thoroughly before beginning the installation process.
