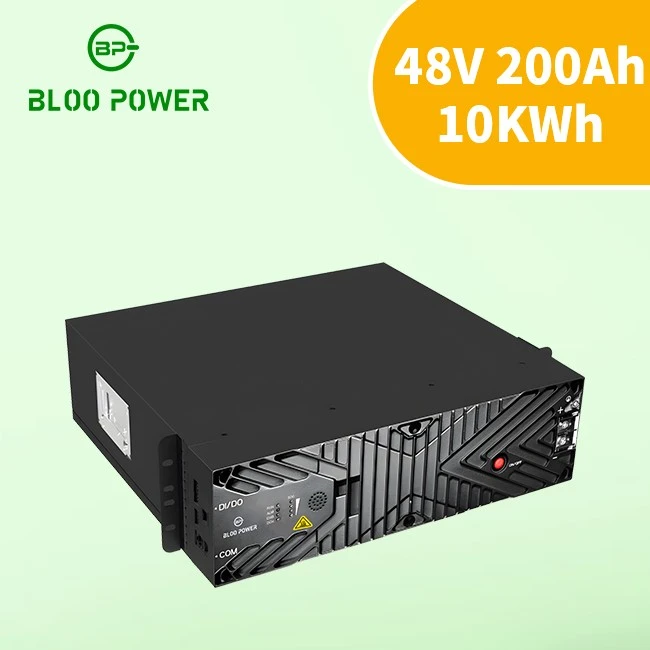

BESS 5KWh 10KWh Solar System Mounted Rack Battery For Base Stations
2.Support customized product
The BESS 5KWh 10KWh Solar System Mounted Rack Battery For Base Stations. 51.2 voltage lithium LFP battery solar energy storage 200Ah features an advanced communication design and supports RS485 and CAN bus protocols.
Bloo Power produces a series battery charger rack mounted lithium battery for telecom with over 6500 cycles long lifespan, it requires no maintenance, with great performance to satisfy customers. If one unit of power is not enough, it can be connected in parallel for capacity expansion. Our battery can connect well with the hybrid inverter of mainstream brands. The BESS has a remote control function that is operated by the APP, very convenient for users.

Parameter
|
NO |
Model No. |
BP-BSB-5KWH-3U |
BP-BSB-7KWH-3U |
BP-BSB-10KWH-3U |
|
1 |
Rated Voltage |
48V/51.2V |
48V/51.2V |
48V/51.2V |
|
2 |
Cell Combination Type |
15S/16S |
15S/16S |
15S/16S |
|
3 |
Rated Capacity |
100Ah |
150Ah |
200Ah |
|
4 |
Rated Energy |
5KWh |
7KWh |
1KWh |
| 5 | Voltage Range | 40V~58.4V | 40V~58.4V | 40V~58.4V |
|
6 |
Charging Method |
CC/CV/CP |
CC/CV/CP | CC/CV/CP |
|
7 |
AC/DC Converter |
Available |
Available | Available |
|
8 |
Charge Current |
50A |
50A |
100A |
|
9 |
Discharge Current |
50A |
50A |
100A |
|
10 |
Maximum Continuous Charge Current |
100A |
100A |
200A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Weight |
40kg |
58kg |
65kg |
|
13 |
Dimension L*W*D(mm) |
L440*W400*H130mm(3U) |
L480*W400*H130mm(3U) |
L500*W442*H130mm(3U) |
|
14 |
Battery Type |
Rack-mounted |
||
|
15 |
Operation Temperature |
-20~65℃ |
||
| 16 | Display | LCD | ||
| 17 | Cell Type | LiFePo4 Lithium ion Phosphates Battery | ||
| 18 | Communication | RS485/CAN | ||
| 19 | Compatibility | Compatible with most of available off-gird/hybrid Inverters and charge controllers | ||
| 20 | BMS | Support SNMP protocol,Equipped with remote monitoring and management system | ||
| 21 | Cycle Life | 100% discharge:≥2000 80% discharge:≥4000 50% discharge:≥8000 | ||

Product Features
1. Continuous charge current: 200A.
2. Tidy internal structure
3. Perfect for indoor distribution systems, telecom equipment, base stations, etc..



Battery Capacity
Rated capacity: This is the standard capacity specified during battery design. It typically represents the amount of energy that can be discharged under standard discharge conditions (e.g., 25°C, 1C discharge rate). For example, a 10Ah battery can theoretically discharge continuously for 10 hours at a 1C discharge rate. Rated capacity is a fundamental parameter for battery selection and design.
Actual capacity: In actual use, a battery's actual capacity is affected by various factors, such as temperature, discharge rate, and battery aging. For example, in low-temperature environments, a battery's actual capacity may be significantly lower than its rated capacity.



Warranty Policy
For Energy storage batteries, we offer 10 years warranty to give customers peace of mind. Within 10 years, maintained for free. During use, if there has any technical questions, our technical team will give you the solutions soon. if need to replace any accessories and it is not caused by human factors, we will arrange to send the accessories as soon as possible within the warranty period. As for distributors or large-scale projects, if the problem cannot be solved online, our professional technicians will solve it on-site.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.

Product qualification

Install

Packaging

About us


FAQ
Q:Is daily maintenance required for the energy storage system?
A:No maintenance is required on a daily basis.
Q:When can I expect to receive a quotation?
A:We generally respond to inquiries with a quote within 24 hours. If you require a quicker response, please let us know and we will prioritize your request.
Q:Where can I purchase an AC adapter for my power station battery?
A:If you need a replacement AC charger for your battery workstation, please contact us with your order information, and we would be happy to help you find the right solution.
