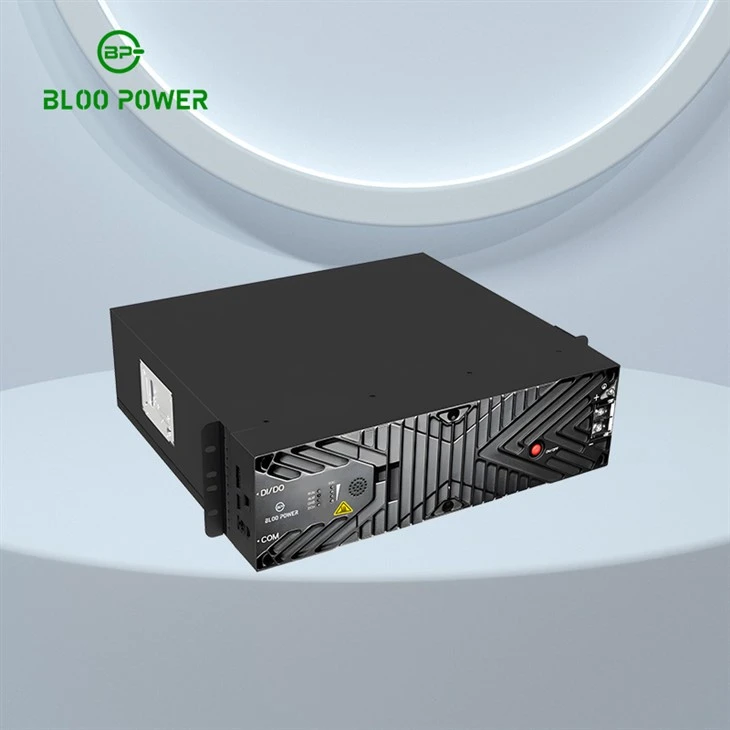

Recharable 5KWh Energy Rack Lithium Battery 48V 51.2V 100Ah
2.3U-design, to save space
The 5KWh rack mounted lithium ion battery for solar system shows great flexibility, modular design means it ultra-easily can be connected in parallel or in series to fit low-voltage and high-voltage systems. And Recharable 5KWh Energy Rack Lithium Battery 48V 51.2V 100Ah.
48V 3U lithium ion rechargeable battery with rack design has less height than 4U ones, it can save more space and less weight at the same time. Built-in BMS monitors and manages the system in real-time, ensuring safety all the time.
Parameter
|
NO |
Model No. |
BP-BSB-5KWH-3U |
BP-BSB-7KWH-3U |
BP-BSB-10KWH-3U |
|
1 |
Rated Voltage |
48V/51.2V |
48V/51.2V |
48V/51.2V |
|
2 |
Cell Combination Type |
15S/16S |
15S/16S |
15S/16S |
|
3 |
Rated Capacity |
100Ah |
150Ah |
200Ah |
|
4 |
Rated Energy |
5KWh |
7KWh |
1KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
|
6 |
Charging Method |
CC/CV/CP |
CC/CV/CP | CC/CV/CP |
|
7 |
AC/DC Converter |
Available |
Available | Available |
|
8 |
Charge Current |
50A |
50A |
100A |
|
9 |
Discharge Current |
50A |
50A |
100A |
|
10 |
Maximum Continuous Charge Current |
100A |
100A |
200A |
|
11 |
Maximum Continuous Discharge Current |
100A |
100A |
200A |
|
12 |
Weight |
40kg |
58kg |
65kg |
|
13 |
Dimension L*W*D(mm) |
L440*W400*H130mm(3U) |
L480*W400*H130mm(3U) |
L500*W442*H130mm(3U) |
|
14 |
Battery Type |
Rack-mounted |
||
|
15 |
Operation Temperature |
-20~65℃ |
||
| 16 | Display | LCD | ||
| 17 | Cell Type | LiFePo4 Lithium ion Phosphates Battery | ||
| 18 | Communication | RS485/CAN | ||
| 19 | Compatibility | Compatible with most of available off-gird/hybrid Inverters and charge controllers | ||
| 20 | BMS | Support SNMP protocol,Equipped with remote monitoring and management system | ||
| 21 | Cycle Life | 100% discharge:≥2000 80% discharge:≥4000 50% discharge:≥8000 | ||
Product Features
1. Afforable battery for base stations.
2. Elegant appearance, can be customized.
3. BMS tech: ensure safety all the time.
4. With CAN, and RS485 protocols
Operating Temperature Range
The operating temperature range determines the environment in which a battery can operate. For example, lithium-ion batteries can operate normally in temperatures ranging from -20°C to 60°C, but their optimal operating temperature is typically between 20°C and 30°C.
Distributor Policy
SUPPORT: we can offer online technical assistance and offline technical service if necessary.
EXCLUSIVE: we can design exclusive products' appearance for distributors which other customers cannot use.
MOQ: 20-foot container for each order, which can include a few kinds of products.
PRICING: Distributors can get lower prices than any other customers in the same country.
MARKETING: we can design marketing posters or brochure for distributor anytime for free.
Our factory is equipped with advanced equipment and production lines, which enable us to meet the ever-changing needs of our growing customers. Every product we supply meets the highest quality standards.
Product qualification
Install
Packaging
About us
FAQ
Q：Can battery deformations occur during transportation?
A：Seriously, this can't happen as we use very strong packing boxes for overseas transportation.
Q：What is the cost estimate for the battery?
A：the cost of the battery is determined by its type and quantity. Our aim is to provide customers with the best quality products at the most affordable price, so we offer competitive quotes to meet your needs.
Q：Are there any discounts available for large orders?
A：We offer varying discounts based on the size and scope of your order.
